KDS-SW3-EN7 AVoIP Encoder Switcher with Dante over 1GbE, 4K@30Hz 4:4:4

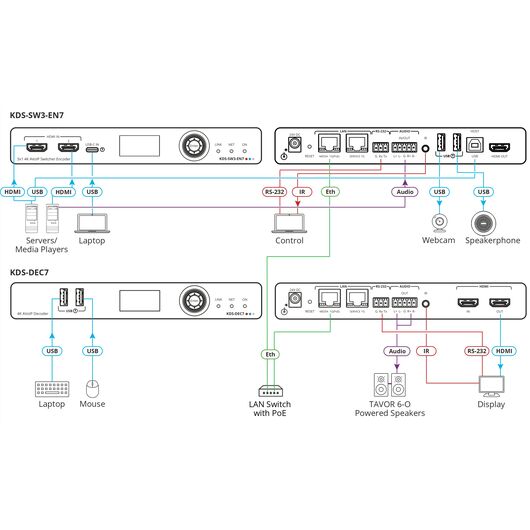

KDS-SW3-EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one-to-one) or multicast (one-to-many) configurations. It can add digital audio Dante, USB, IR, RS-232, or CEC signals.

Features
  • KDS-SW3-EN7 provides exceptional quality, advanced user-friendly operation, and flexible control
  • Instantaneous Switching Time - 1 second switching time between selectable video inputs
  • Video Streaming Transmitter - Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS-DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution
  • Streaming delay 33msec - for video 4K@30Hz 4:4:4 signal
  • Streaming Support - Provides unicast and multicast streaming
  • Flexible Analog Audio Embedding and De-embedding - Select balanced analog audio as input to embed into the streaming and HDMI output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio
  • Flexible Digital Audio Embedding and De-embedding Dante - Select digital audio as input to embed into the streaming and HDMI output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio
  • Easy To Use KM/KVM Support - Searchable, OSD menu for KM and fully configurable KVM roaming
  • Power consumption without USB-C Power Delivery is 13W - power consumption with USB-C Power Delivery is 77W (requiring the optional power supply)
  • Convenient and Comprehensive Control - Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons
  • PoE Support - Powered with PoE connection from PoE LAN switch
  • Control Gateway - Through P3K or special TCP connection, users can control/communicate with IR, RS-232, or CEC to the connected devices
  • Separate Service LAN Port - can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes
  • Selectable Inputs - 2 HDMI and 1 USB-C input
  • Analog/Digital audio inputs and outputs
  • Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, and KDS-USB2
Brand:
Kramer
Part number:
60-000890
Product Type:
Auto Switcher
Specifications
Display Type:
LCD
Maximum Operating Temperature:
+45°C
Material:
Aluminium
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Maximum Resolution:
4K@30Hz 4:4:4
Power
Current Rating:
5A
Current Rating:
5A
Dimensions
Width:
18.9cm
Depth:
14.5cm
Height:
2.7cm
Weight:
0.7kg
Shipping Weight:
0.9kg
Other
Voltage Rating:
24V DC
Standards Met:
CE, FCC, RoHs, WEEE

KDS-SW3-EN7 1 (KDS-SW3-EN7, 1,087 Kb) [Download]
