CVSD-41ARN 4x1 Video/S-Video Switcher
Please sign in so that we can notify you about a reply

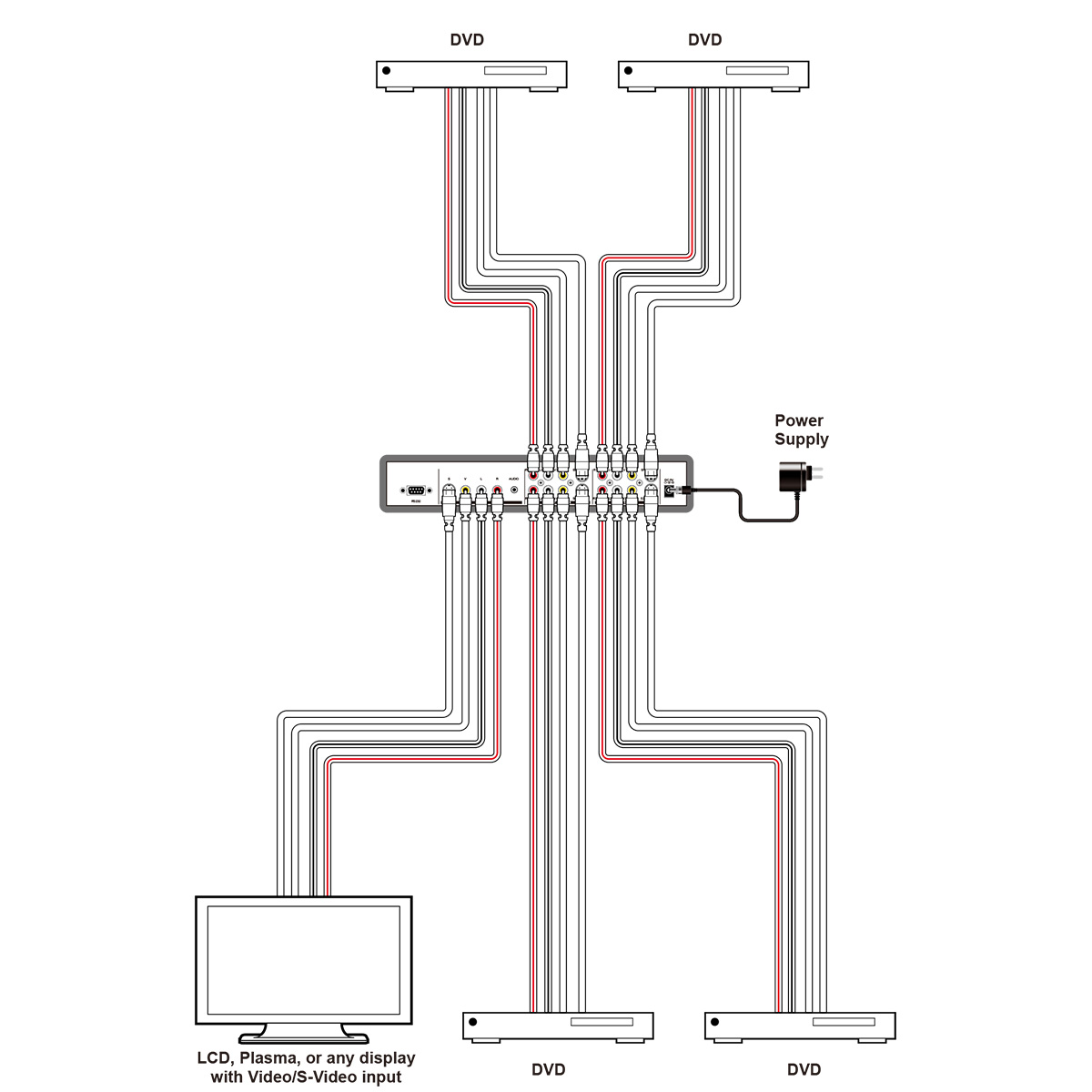

CVSD-41ARN CV/SV switcher is designed for switching between video & S-video sources. Such as VCR,DVD player... to share one TV display.
Features
- LED indicators
- IR remote control
- Supports standard video sources: 480i, 576i
- Plug and play, easy to install and operate

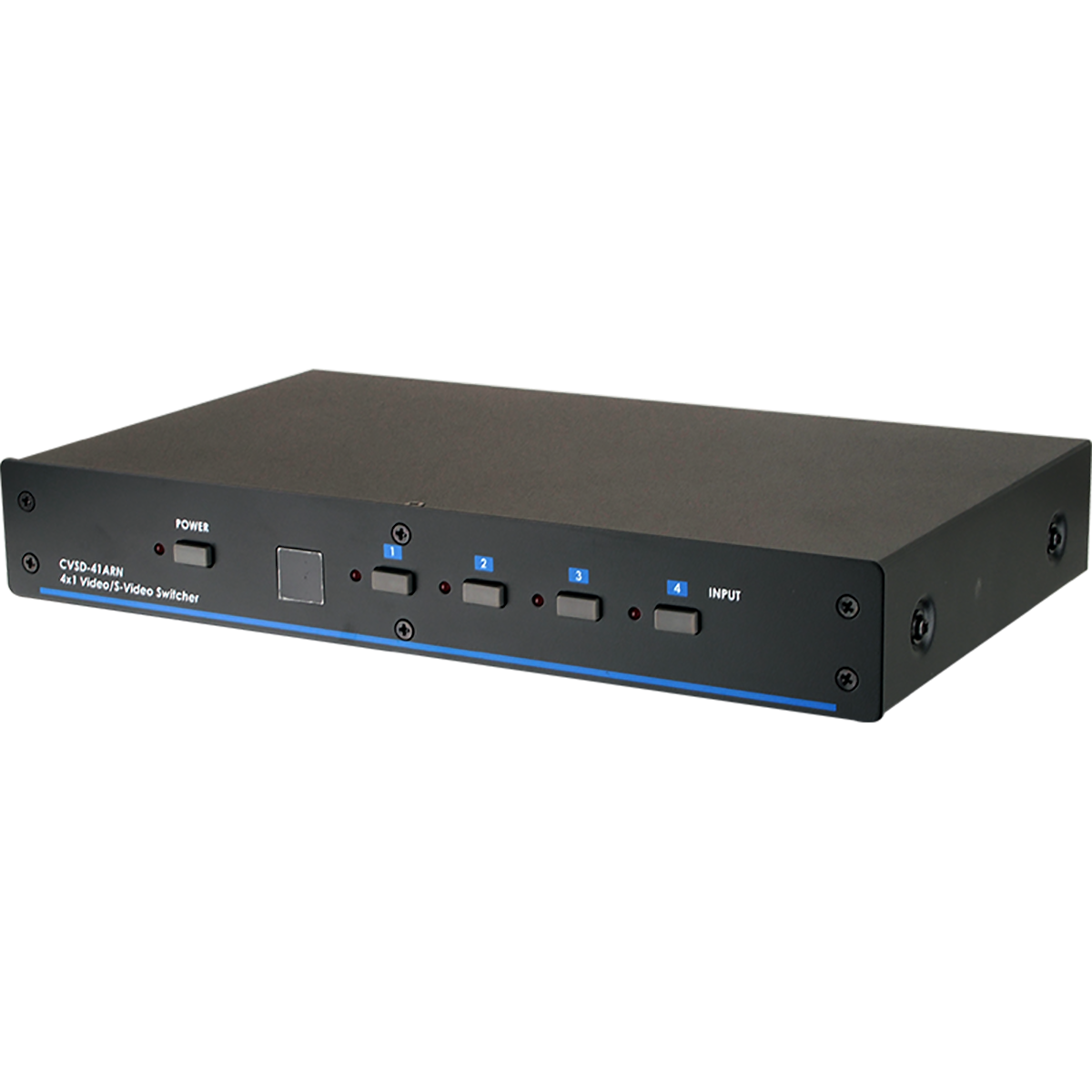

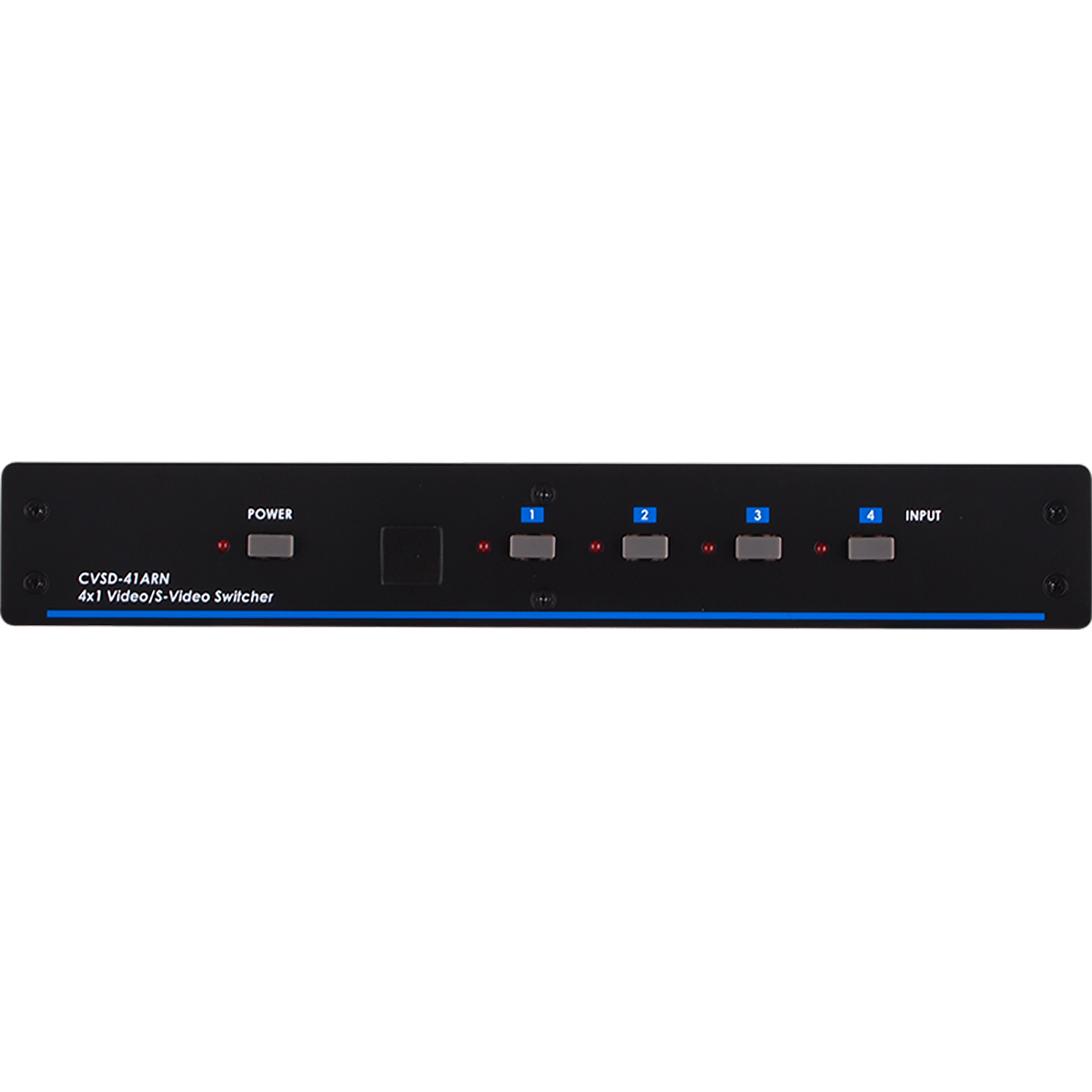

- CVSD-41ARN can be controlled either through input selection button on the front panel or using included infrared remote control
- RS-232 interface allows control from a distant device
- Ideal for presentation and large shop integration
- Support audio format: L/R (analog) or PC AMP speaker system (option)
Brand:
Cypress Technology
Specifications
Product Type:
Video/S-Video Switcher
Display Type:
TV
Audio Format:
L/R (Analog) or PC AMP Speaker System (Option)L/R (Analog)
Colour:
Black
Applications:
CVSD-41ARN CV/SV Switcher is Designed for Switching Between Video & S-Video Sources Such as VCR, DVD Player to Share One TV Display
Includes:
CVSD-41ARN Unit, IR Remote Control, 5VDC Power Supply Battery, Manual, One Set of 1 RCA-1 RCA Video Cable, One Set Of S-Video Cable, One Set Of 2 RCA-2 RCA Audio Cable
Inputs and Ports
Video Input Type:

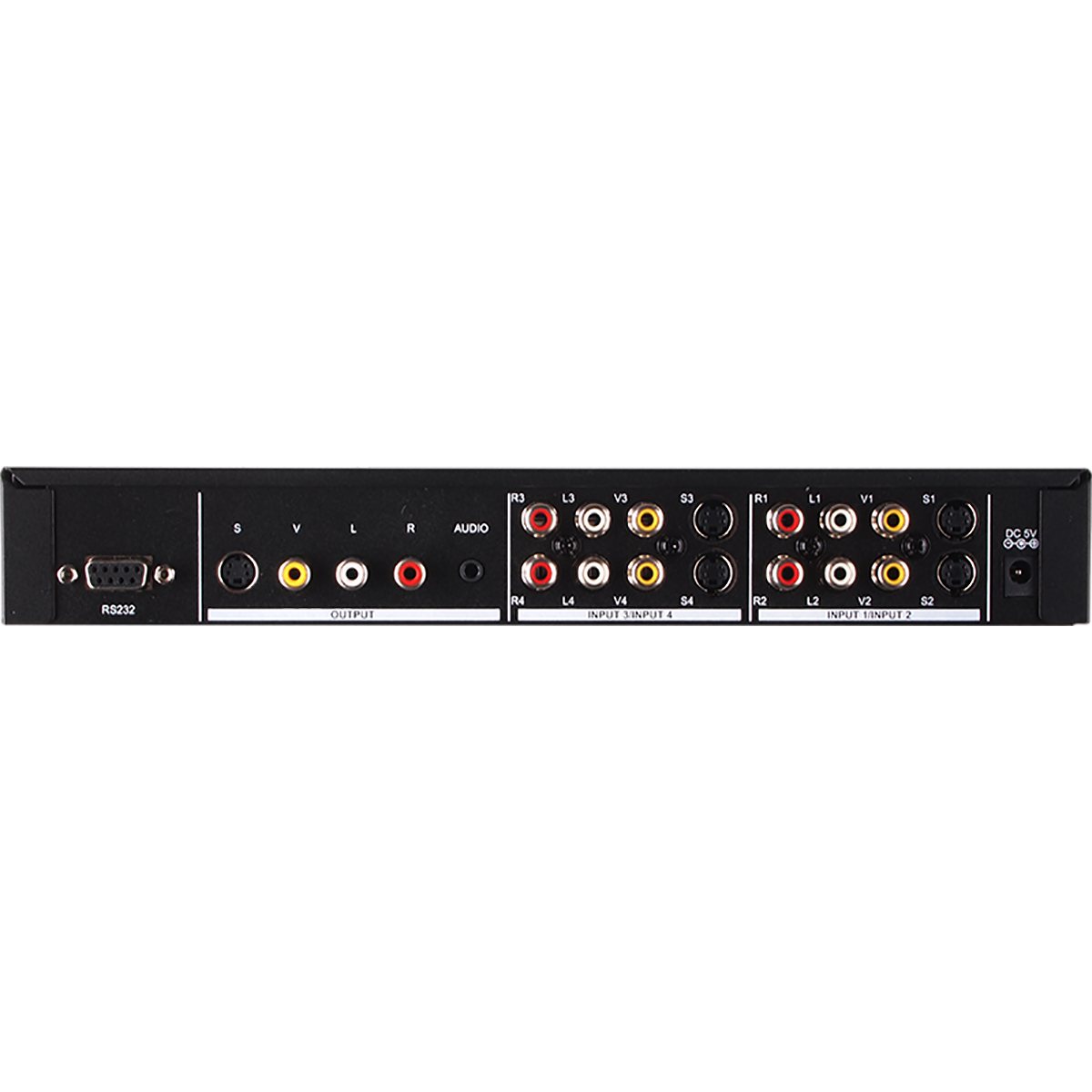

4xMini-DIN-4 [4xS-video], 4xRCA [4xComposite Video], 8xRCA [4xStereo (L/R)], 1xDE-9 [1xRS-232 Data]
Power
Current Rating:
1A
Dimensions
Width:
17.5cm
Height:
4.5cm
Weight:
1500g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
