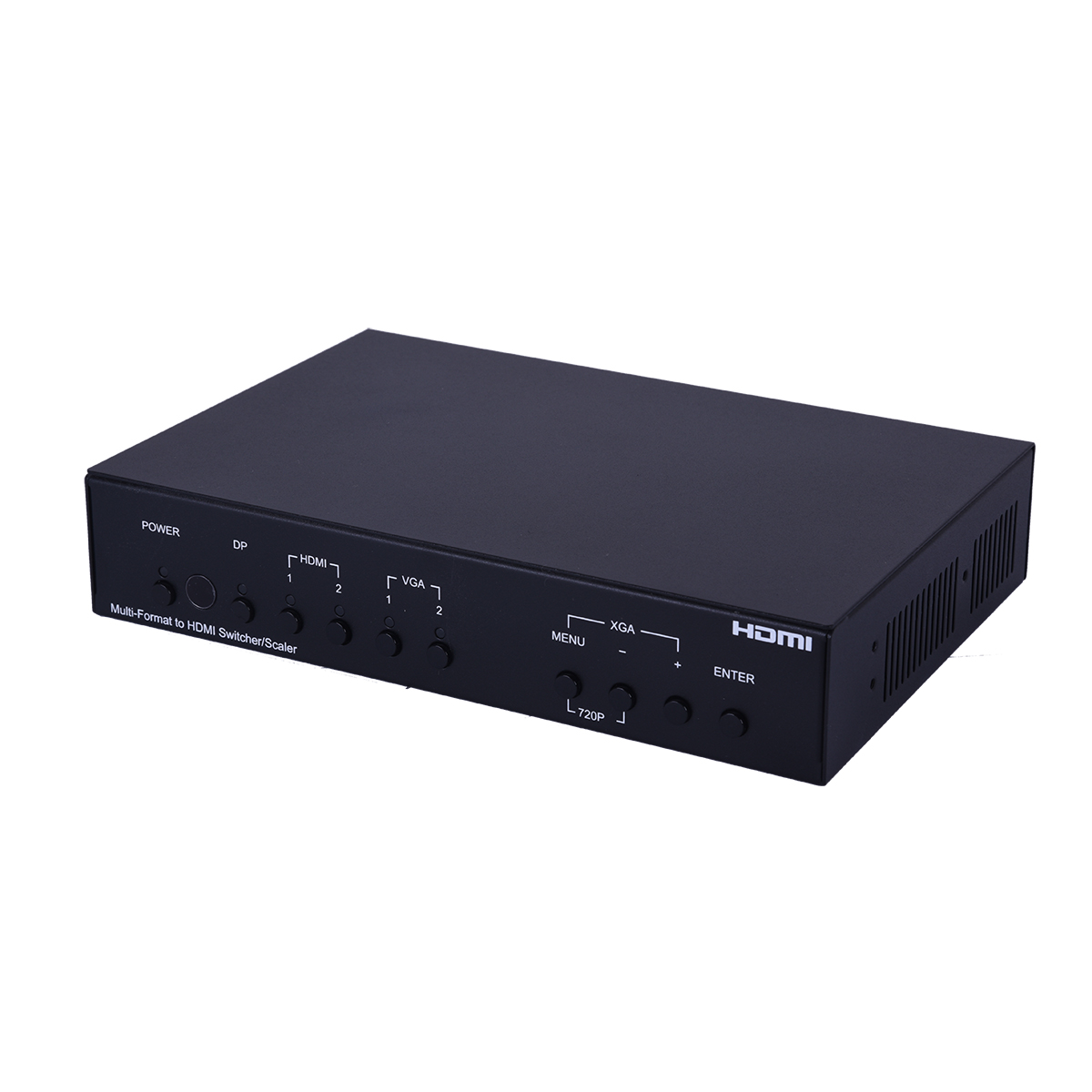

CSC-5501TX Multi-Format to HDMI Switcher/Scaler
Please sign in so that we can notify you about a reply

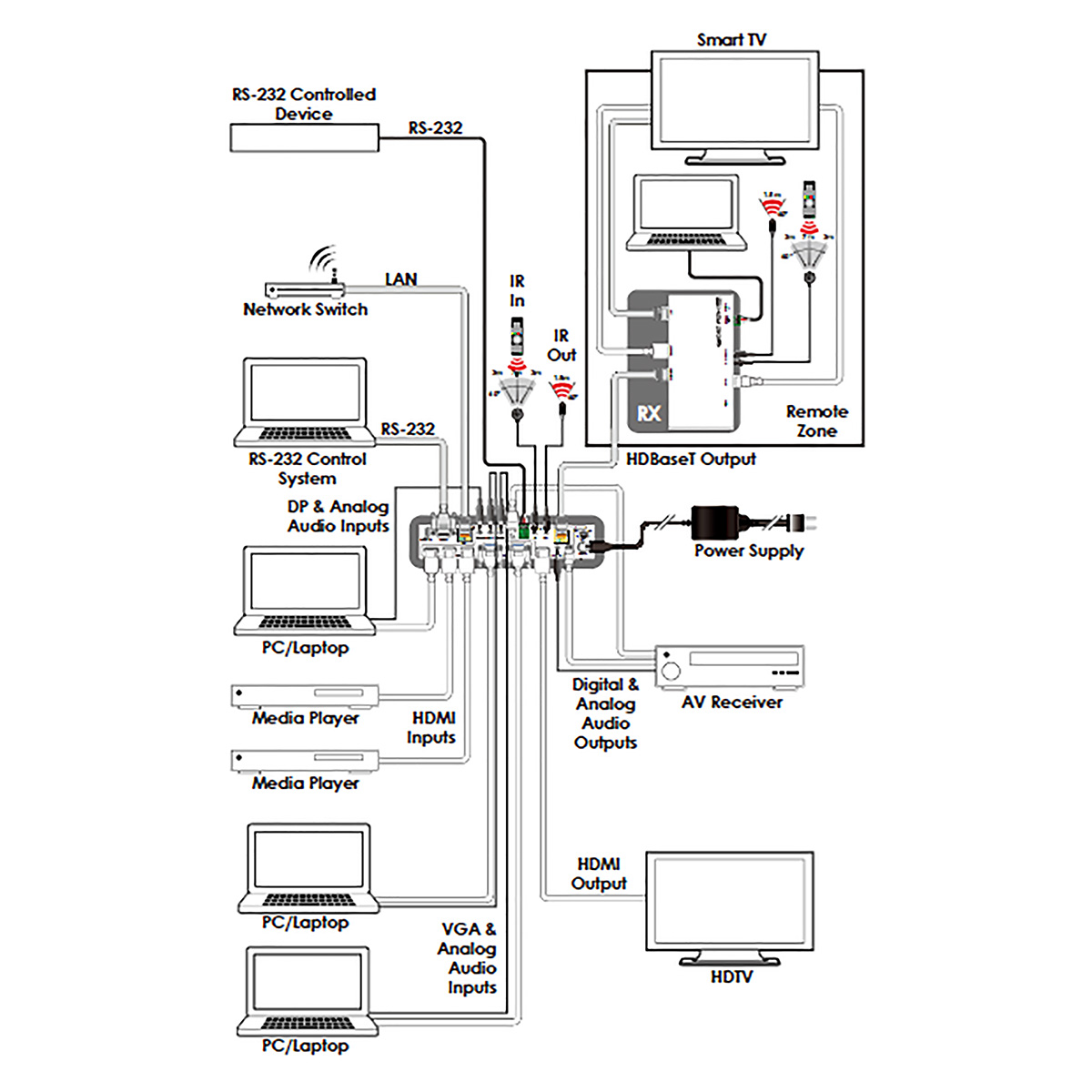

This scaler has DisplayPort, HDMI and PC (VGA) inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. This unit also includes separate analog and digital audio outputs to provide additional playback flexibility. Support for HDMI output resolutions up to 1080p/WUXGA (RB) and Analog to Digital Conversion (ADC) functionality combine to allow for a wide range of AV signals to be displayed on the connected HDMI displays.
Features
- Analog stereo and digital coaxial breakout audio outputs
- Supports pass-through of LPCM 2.0 audio and Optical Audio Return (OAR) function to transmit audio from a compatible HDBaseT receiver to this unit
- Audio DSP with gain control for routing audio and controlling background audio levels
- HDBaseT feature support: HD Video and Audio, Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- HDBaseT output provides 48V PoH (PSE) to power to compatible HDBaseT Receivers (PD)
- EDID management support

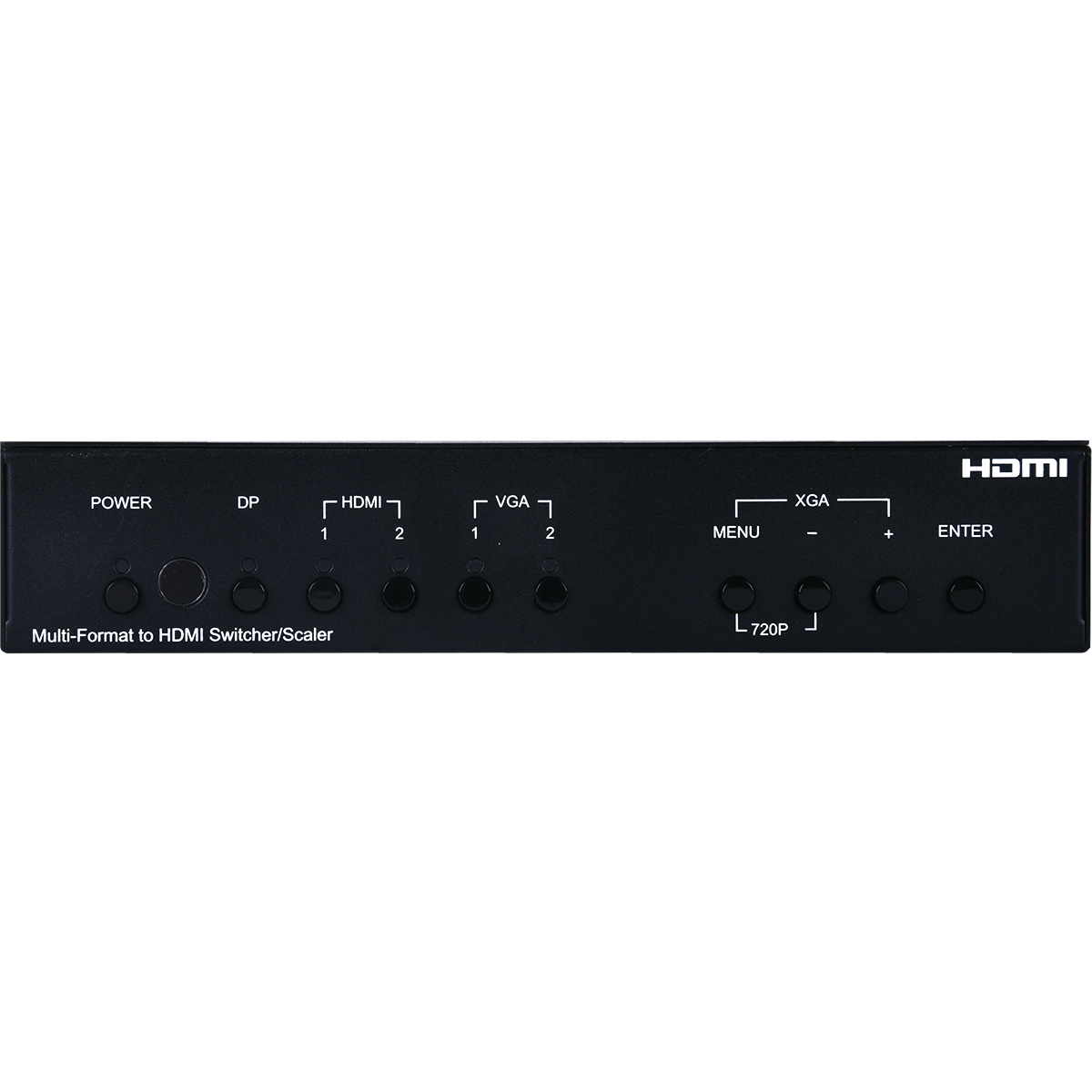

- Remote control provides discrete input source selection
Brand:
Cypress Technology
Specifications
Product Type:
Multi Format HDMI Scaler
Display Type:
PC, Laptop
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
18W
Applications:
Analog and Digital Source Integration, Upscaling Standard Definition Sources for High-Definition Displays, Conference Centres, Lecture Halls, Schools and University
Material:
Metal
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
HDMI/DP/VGA to HDMI/HDBaseT Scaler (PSE) with OAR, 24V/2.7A DC Power Adapter, Power Cord, 3.5mm to IR Extender Cable, 3.5mm to IR Blaster Cable, Remote Control (CR-176), Operation Manual
Performance
Bandwidth:
165MHz
Video Processing:
4:4:4, 8bits
Maximum Resolution:
1200pixels
Input Impedance Rating:
10kΩ
Inputs and Ports
Video Input Type:

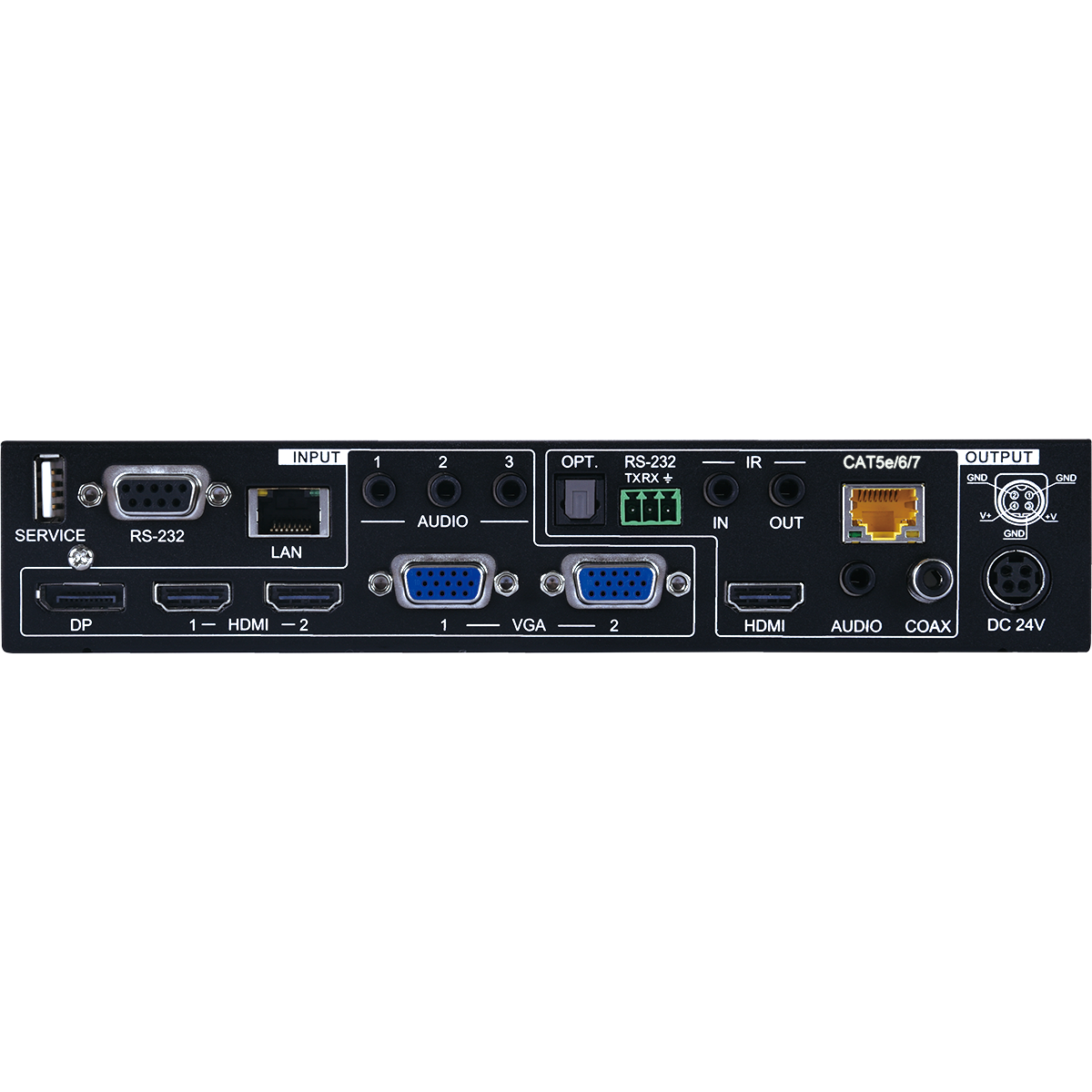

Display Port, 2xHDMI, 2xVGA (HD-15), 3xStereo (3.5mm)
Connectivity
LAN Control:
LAN (RJ45)
Power
Output Impedance Rating:
> 470Ω
Current Rating:
2.7A
Dimensions
Width:
21.5cm
Depth:
15.3cm
Height:
4.7cm
Weight:
1.068g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
