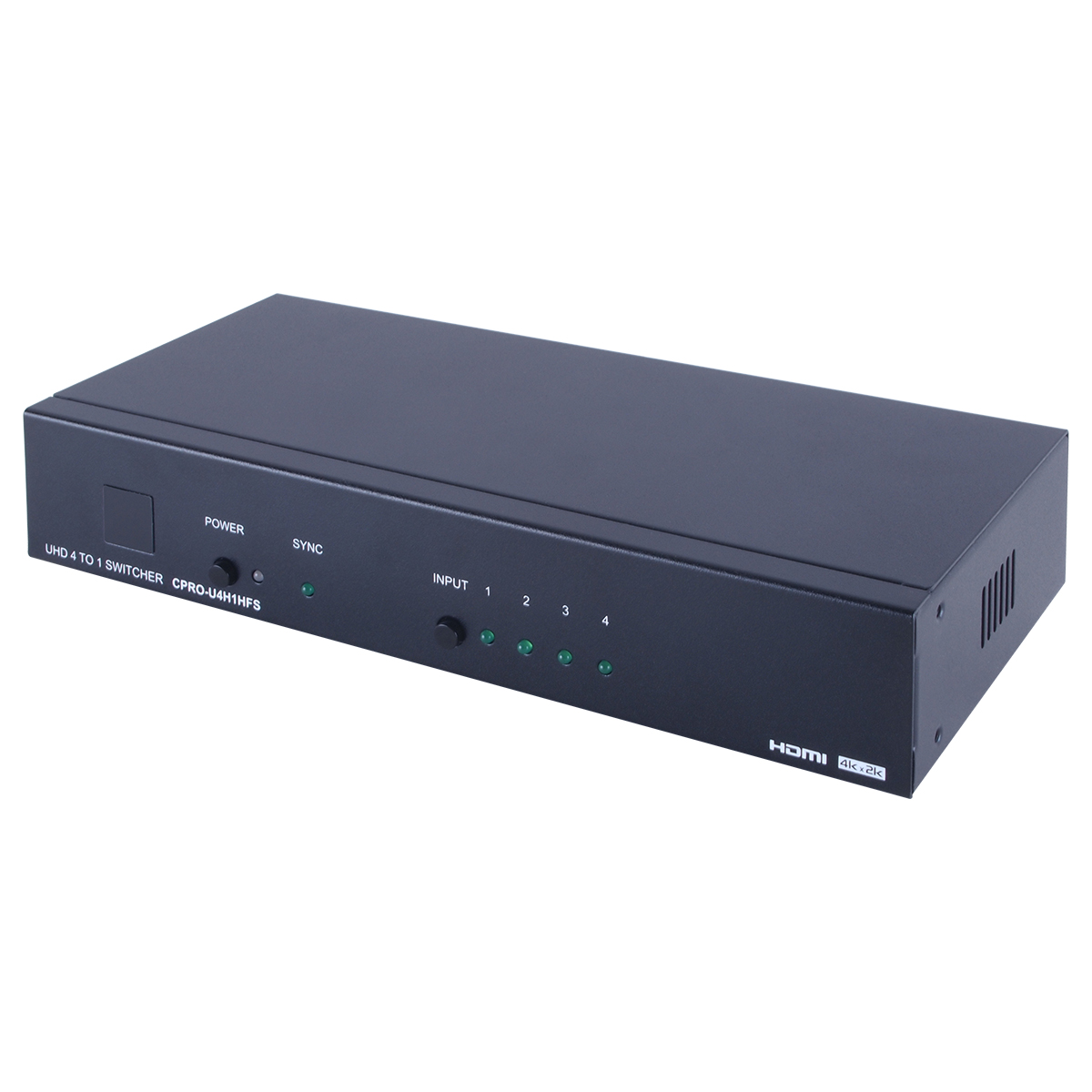

CPRO-U4H1HFS UHD 4 to 1 Switcher
Please sign in so that we can notify you about a reply

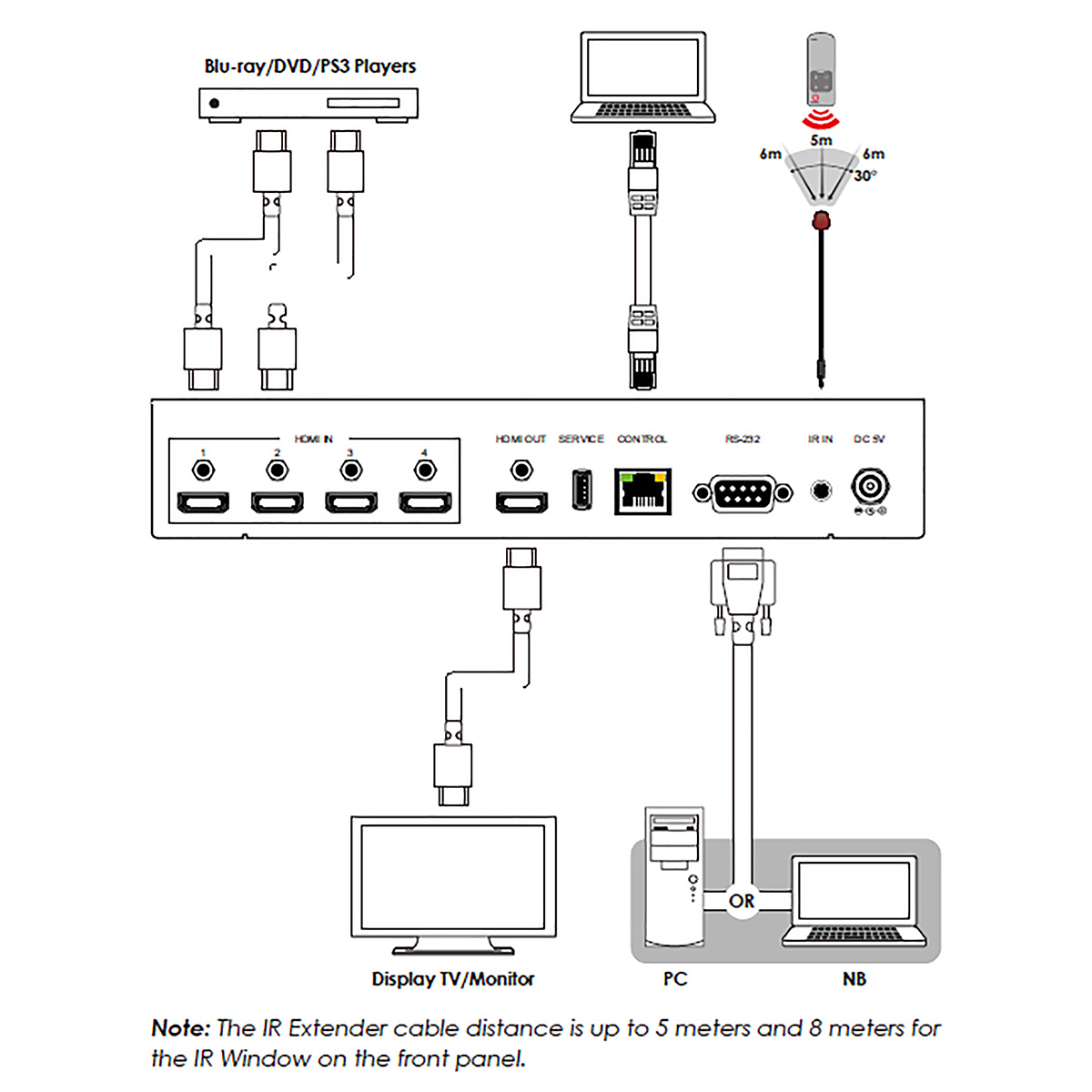

The 4 by 1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver to select between four devices. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4K2K, 3D, 36-bit Deep Color, Hi-Def. lossless audio and other features defined by the latest HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232, Telnet and WebGUI control.
Features
- Select any one of four HDMI sources and display on a HDTV display with fast switching between sources
- Supports 3D signals pass-through
- Supports HDTV resolutions up to 4096x2160@60Hz YUV 4:2:0
- Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
- Supports Audio pass-through of High-definition Audio formats (LPCM 2/5.1/7.1CH, Bitstream, HD Bitstream
- HDMI inputs support ‘Standard’ and ‘Apple’ HDCP modes. Selecting ‘Apple’ mode guarantees the compatibility of Apple devices with this switcher
- Supports Telnet and WebGUI control
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Switcher
Display Type:
PC, Laptop
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black
RS-232 Connector Type:
DB-9
Power Rating:
4W
Applications:
Home Theatre/Entertainment, Lecture Room/Hall Presentation, Show Room/Demo Room, Public Commercial Display, Information Board
Material:
Metal
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
UHD 4 to 1xHDMI Switcher, Remote Control with Battery, IR Receiver Cable, 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Bandwidth:
300Mbps to 3Gbps
Video Processing:
36bits
Audio Sample Rate:
8bits, 60Hz
Maximum Resolution:
4096x2160pixels
Inputs and Ports
Video Input Type:
HDMI-Type A
Power
Current Rating:
2.6A
Dimensions
Width:
24cm
Depth:
11.1cm
Height:
4.8cm
Weight:
798g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
