CPLUS-V3H1H UHD+ 3x1 HDMI Switcher
Please sign in so that we can notify you about a reply
The CPLUS-V3H1H is a 3x1 4K@60Hz (4:4:4) switcher. Featuring 3 x HDMI-IN and 1x HDMI-OUT with USB 5V power. This unit supports easy switching with manual input selection or auto-sensing plus a “Last Memory” function which can automatically source switches and remembers the last connected input that enable no user intervention necessary. This switcher is an ideal addition to any conference room, lecture hall or home entertainment with portable and easy to install design.
Features
- Supports automatic switch and “Last Memory” function which will automatically switches to the last selected input source
- Supports EDID function ensures the best resolution as well as Plug and Play operation LED indicators provide input selection as well as automatic switch status information Micro-USB port
- Supports charging of 5V/1A
- Supports RS-232 function.

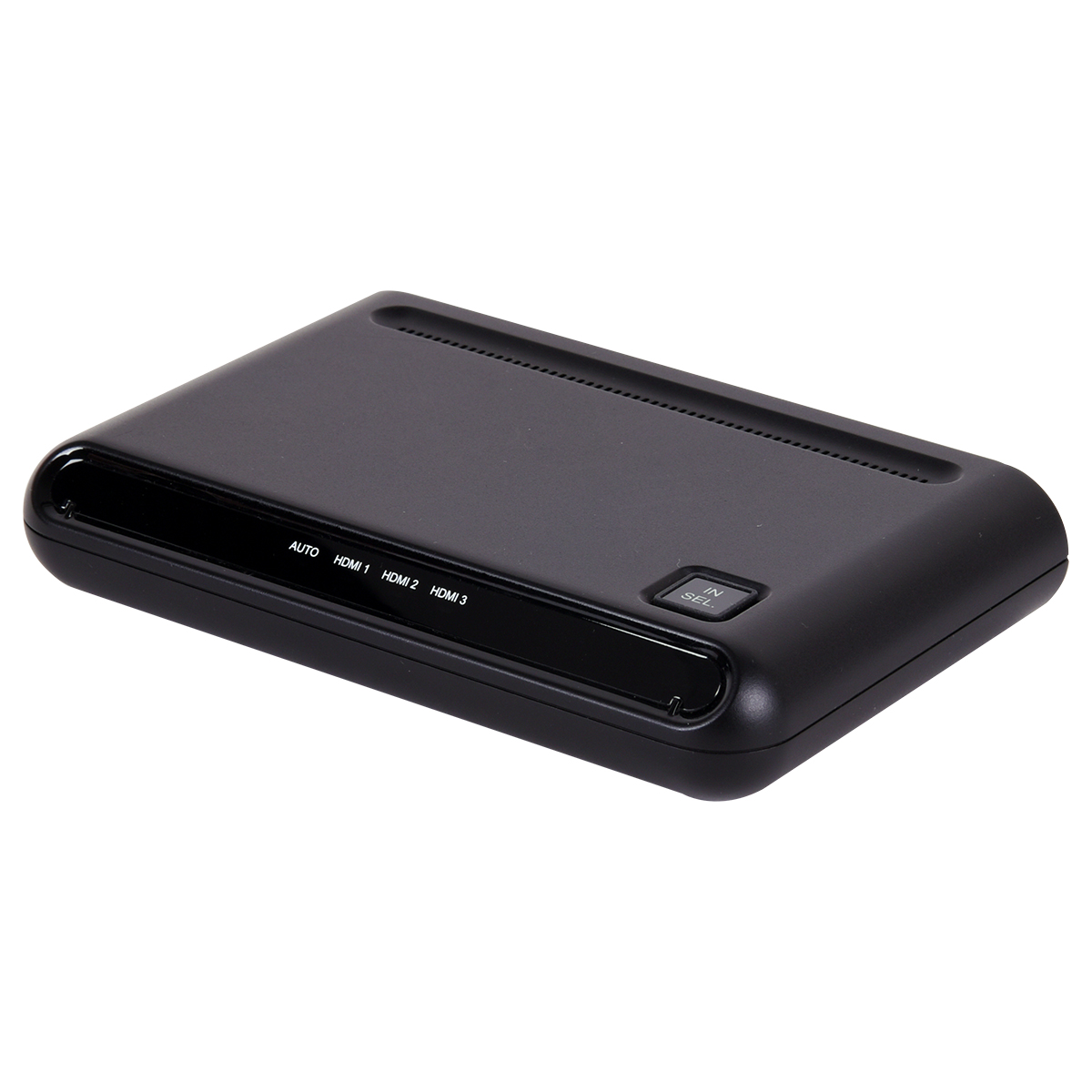

- Supports IR function. Controllable via a single front panel button with LEDs
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Switcher
Display Type:
PC, TV
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black
RS-232 Connector Type:
DE-9
Special Features:
Small and Portable Switch Box Design
Power Rating:
3.2W
Applications:
Conference Rooms and Boardrooms, Lecture Halls, Auditoriums, Classroom, Household Entertainment Sharing and Control
Material:
Plastic
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
1xHDMI Switcher, Micro USB cable, Operation Manual
Performance
Bandwidth:
18Gbps
Video Processing:
4:4:4, 8bits
Audio Sample Rate:
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192kHz
Maximum Resolution:
4096x2160pixels
Inputs and Ports
Video Input Type:
3xHDMI (Type A)
USB Type:
USB (Micro-B)
Power
Current Rating:
1.2A
Dimensions
Width:
15.7cm
Depth:
10.2cm
Height:
3cm
Weight:
190g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
