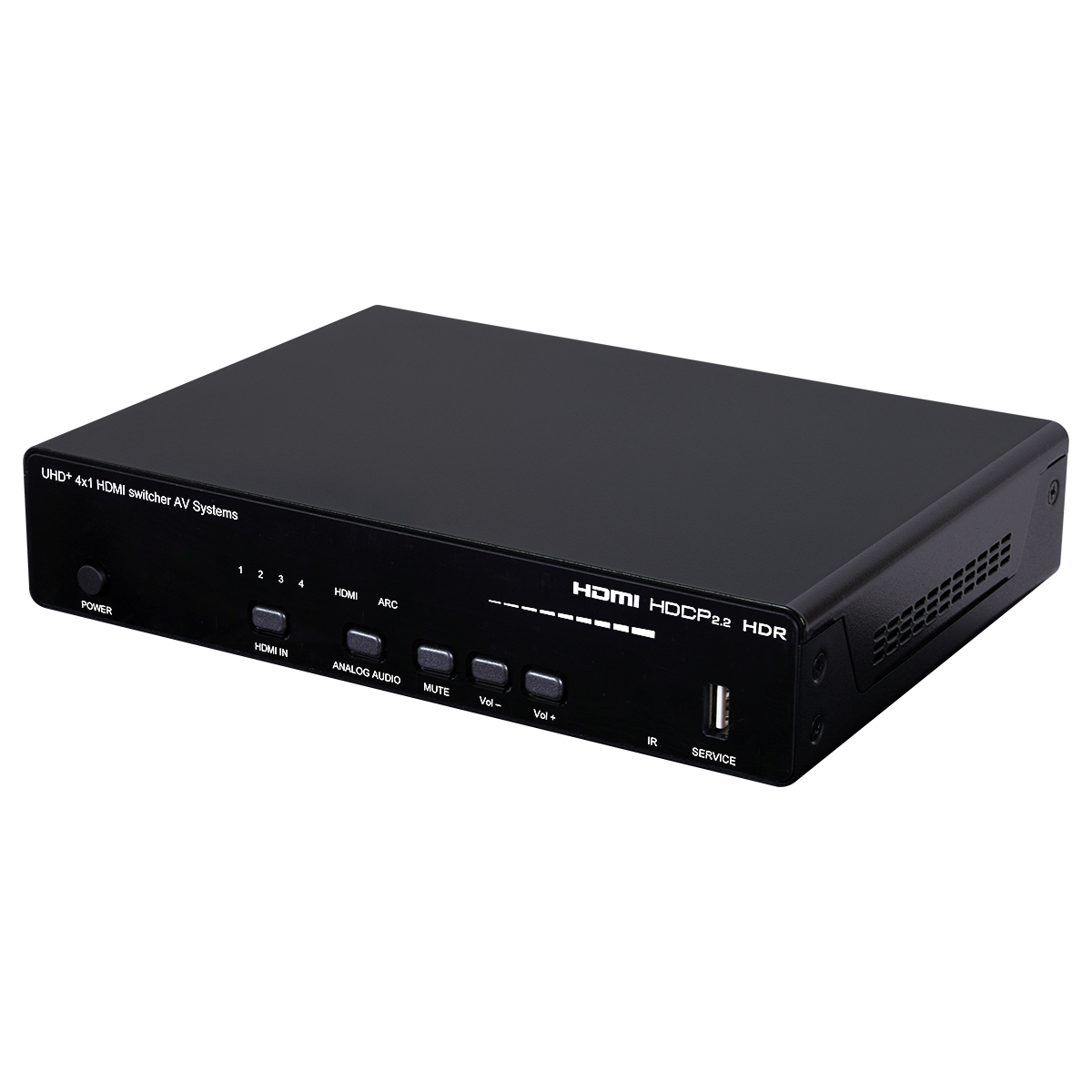

CPLUS-401V UHD+ 4x1 HDMI Switcher AV Systems
Please sign in so that we can notify you about a reply
This 4×1 HDMI switch with Stereo Amplifier provides high performance audio and video support, including HDR and ARC, making it ideally suited residential or corporate installations. Any of four high-bandwidth (18Gbps) HDMI sources may be routed with local HDMI output with support for automatic input switching. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are supported HDMI outputs.
Features
- HDMI with HDR, 3D & 4K@60Hz support
- Supports ‘Deep Colour’ input and output up to 12-bit Output, selectable, 4K to 1080p down-scaling/colour space conversion (4:4:4 to 4:2:0)
- Supports the Audio Return Channel (ARC) function to transmit digital audio from an ARC-enabled TV connected to the HDMI output (LPCM 2.0 only)
- Selectable stereo analogue audio breakout mirrored to both amplified (20W per channel) and un-amplified (3.5mm headphone) connections. (LPCM 2.0 only)
- Support for learning IR remote codes for on-demand retransmission
- Advanced EDID management with 8 Internal, 1 external EDIDs copied from connected devices, and 4 custom user provided EDID
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Switcher
Display Type:
PC, Laptop
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
12.85W
Applications:
Conference Room Installation, Meeting Room Connection, Classroom Display
Material:
Steel
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
UHD+ 4x1xHDMI Switcher with Stereo Amplifier, 24V/2.7A DC Power Adapter, 1xPower Cord, 2-Pin Terminal Block, 3.5mm to IR Blaster Cable, Remote Control (CR-191), 1xShockproof Feet (Set of 4), Operation Manual
Performance
Bandwidth:
18Gbps
Video Processing:
4:4:4 to 4:2:0, 12bits
Audio Sample Rate:
Up to 192kHz
Maximum Resolution:
4096x2160pixels
Inputs and Ports
Video Input Type:
4xHDMI (Type A)
Power
Current Rating:
2.7A
Dimensions
Width:
21.9cm
Depth:
16.3cm
Height:
5.4cm
Weight:
1172g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
