CPLUS-31PS-TB UHD+ 3x1 Multi-Format to HDMI Table Box
Please sign in so that we can notify you about a reply
The CPLUS-31PS-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate meeting rooms can be difficult to operate and provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the CPLUS-31PS-TB provides the perfect balance between ease of use and portability. With CPLUS-31PS-TB, users have a flexible AV solution that removes the boundaries of how a meeting space can be used. This 3x1 Multi-Format to HDMI Switch supports resolutions up to 4096x2160@60Hz (4:4:4) for inputs of USB Type-C, HDMI and Mini DisplayPort and automatically converts them to a standard HDMI format for use with projectors or displays. The table box is designed to be placed on a table, or mounted to any typical table edge using a C-clamp.
Features
- HDMI with 3D & 4K support
- Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
- HDMI output transmits video, audio and data over a single HDMI cable and can reach distances up to 5m at 4K when using HDMI
- Automatic input selection with hot plug detection enabling hands-free operation

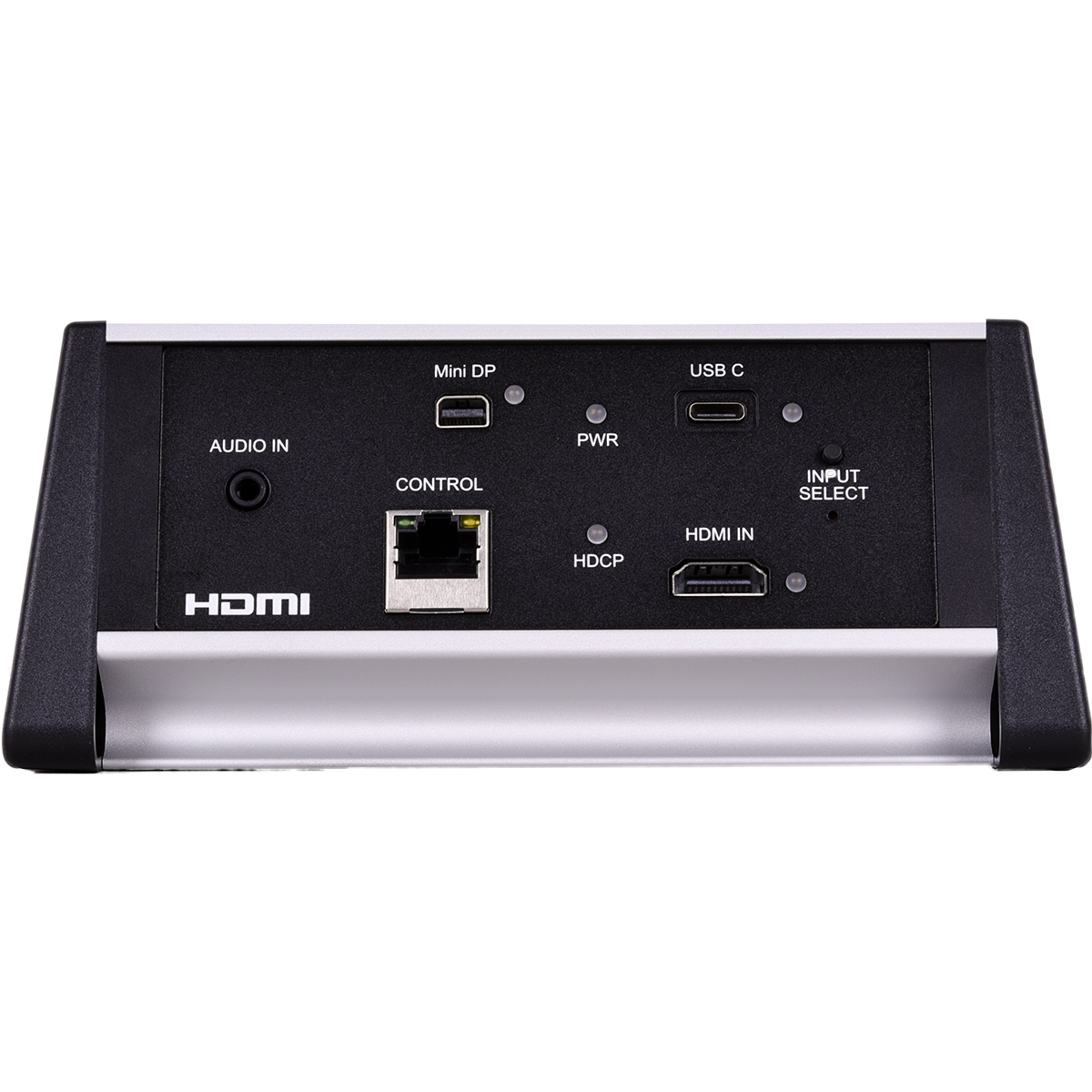

- Front panel LEDs indicate input selection, power and link status
Brand:
Cypress Technology
Product Type:
HDMI Switcher
Specifications
Display Type:
PC, Laptop
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black, Silver
Power Rating:
12.76W
Applications:
Household Entertainment Sharing and Control, Lecture Halls, Auditoriums, Classroom, Conference Rooms, Boardrooms, Showroom Display and Control
Material:
Aluminium, Plastic
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
UHD+ 3x1 Multi-Format to HDMI Table Box, 5V/1A DC Power Adapter (2-Pin Terminal Block), Operation Manual
Performance
Bandwidth:
18Gbps
Video Processing:
4:4:4, 8bits
Audio Sample Rate:
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192kHz
Maximum Resolution:
4096x2160pixels
Inputs and Ports
Video Input Type:
HDMI-Type A, Display Port (mDP), USB-Type C, Stereo Audio
USB Type:
USB-Type C
Connectivity
LAN Control:
LAN (RJ45)
Power
Current Rating:
1A
Dimensions
Width:
17cm
Depth:
7.7cm
Height:
7.5cm
Weight:
400g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
