CPLUS-31 UHD+ Multi-Format to HDMI Output Switcher

Write a review
CPLUS-31
Cypress Technology
Out of stock
Log in to see price Add to wish list

This 3x1 Multi-Format to HDMI Switch is a 4K@60Hz (4:4:4) switcher featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. This unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. This switcher is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design. This unit is controllable via a single front panel button.

Features

  • EDID bypass with an optimized algorithm to ensure optimal resolution and feature support
  • Easy to read LEDs to indicate input selection and operational mode

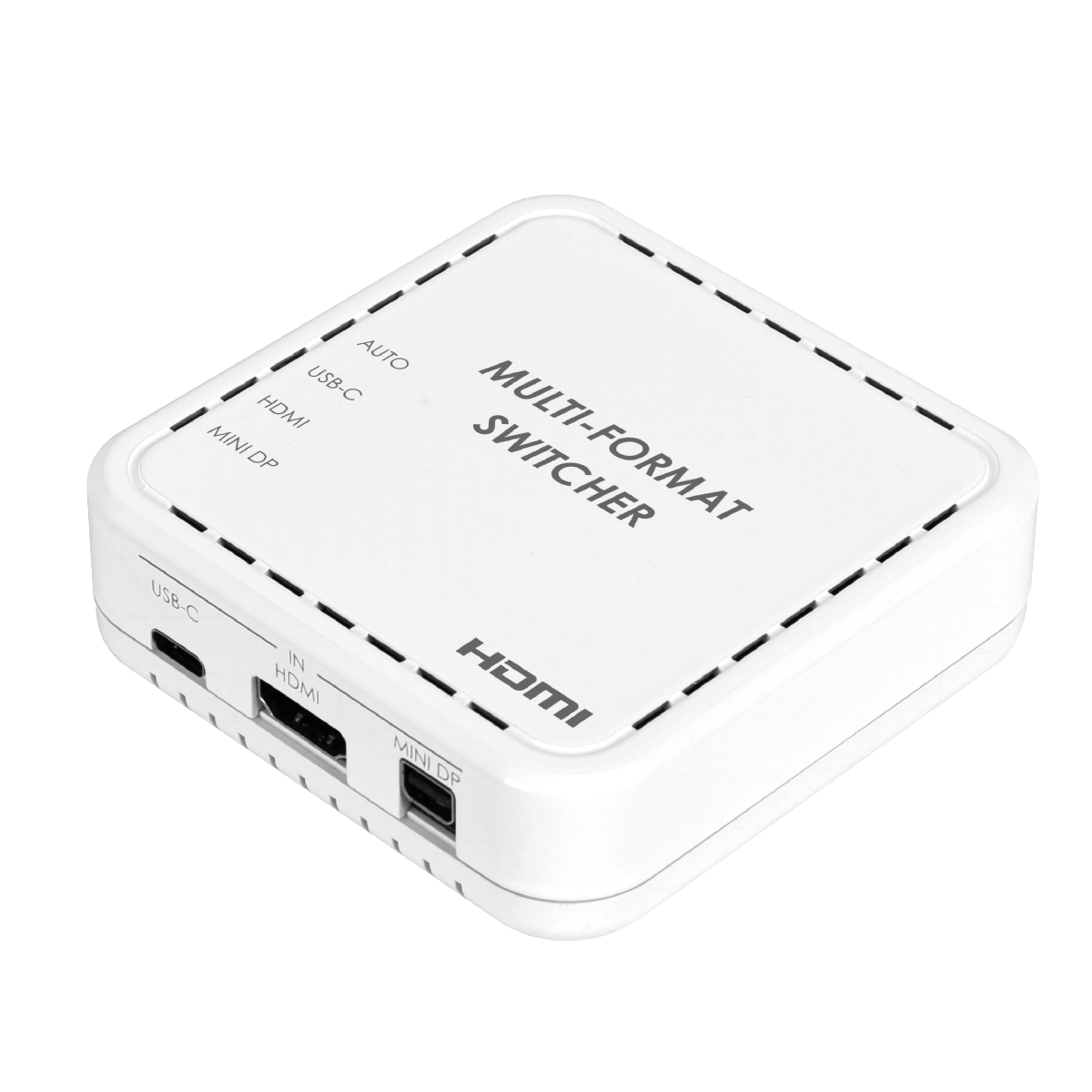

  • Small and portable switch box design

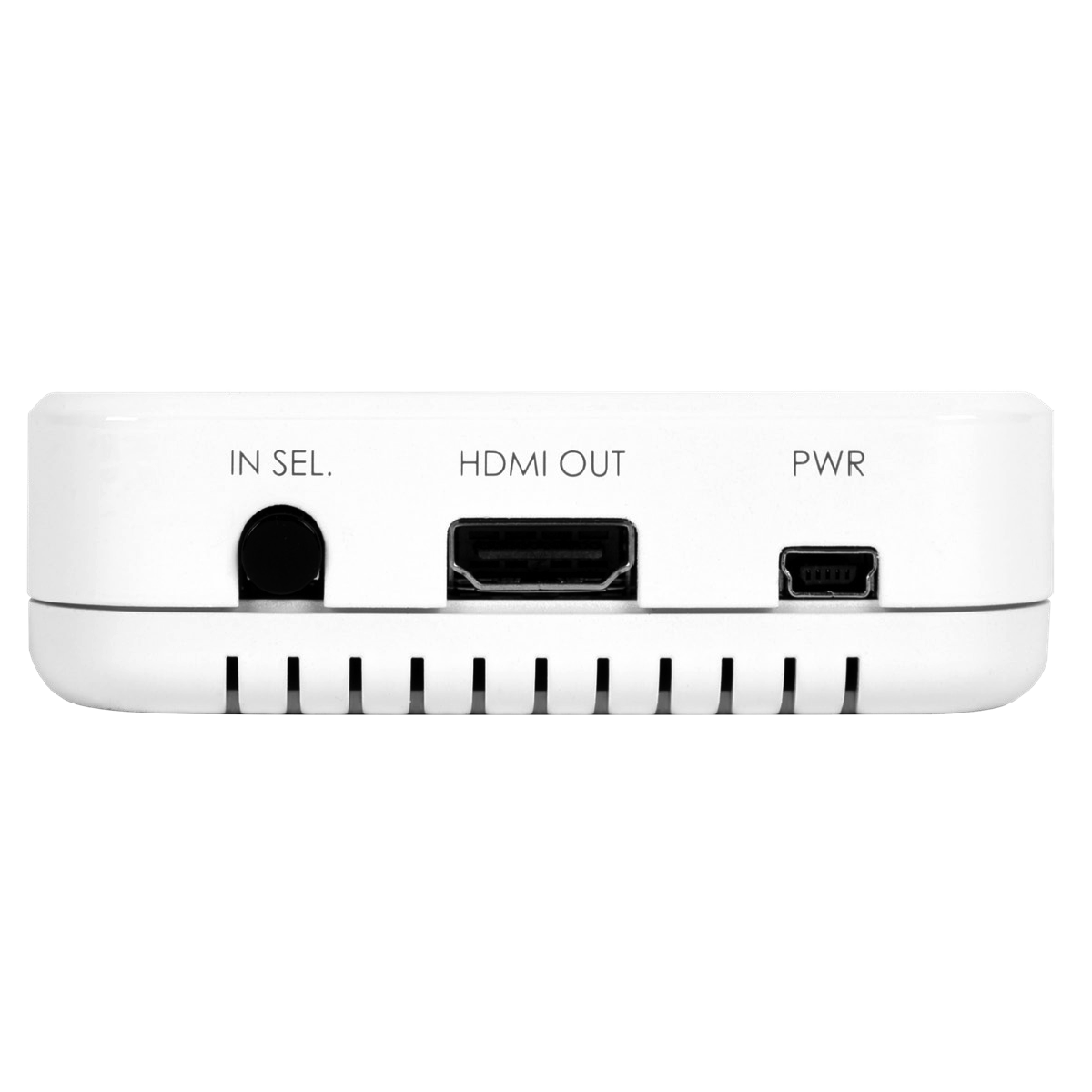

  • Controllable via a single front panel button with LEDs
Brand:
Cypress Technology
Specifications
Product Type:
Multi Format HDMI Scaler
Display Type:
PC, Laptop
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
White
Special Features:
Small and Portable Switch Box Design
Power Rating:
4.3W
Applications:
Conference Rooms and Boardrooms, Lecture Halls, Auditoriums, Classroom, Household Entertainment Sharing and Control
Material:
Plastic
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
HDMI/Mini Display Port/USB-Type C to HDMI Switch, 5V/1.2A DC Power Adapter, Operation Manual
Performance
Bandwidth:
18Gbps
Video Processing:
4:4:4, 8bits
Audio Sample Rate:
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz, 192kHz
Maximum Resolution:
4096x2160pixels
Inputs and Ports
Audio Input Type:
LPCM (8 Channels), Bitstream, HD Bitstream
Audio Output Type:
LPCM (8 Channels), Bitstream, HD Bitstream
Video Input Type:

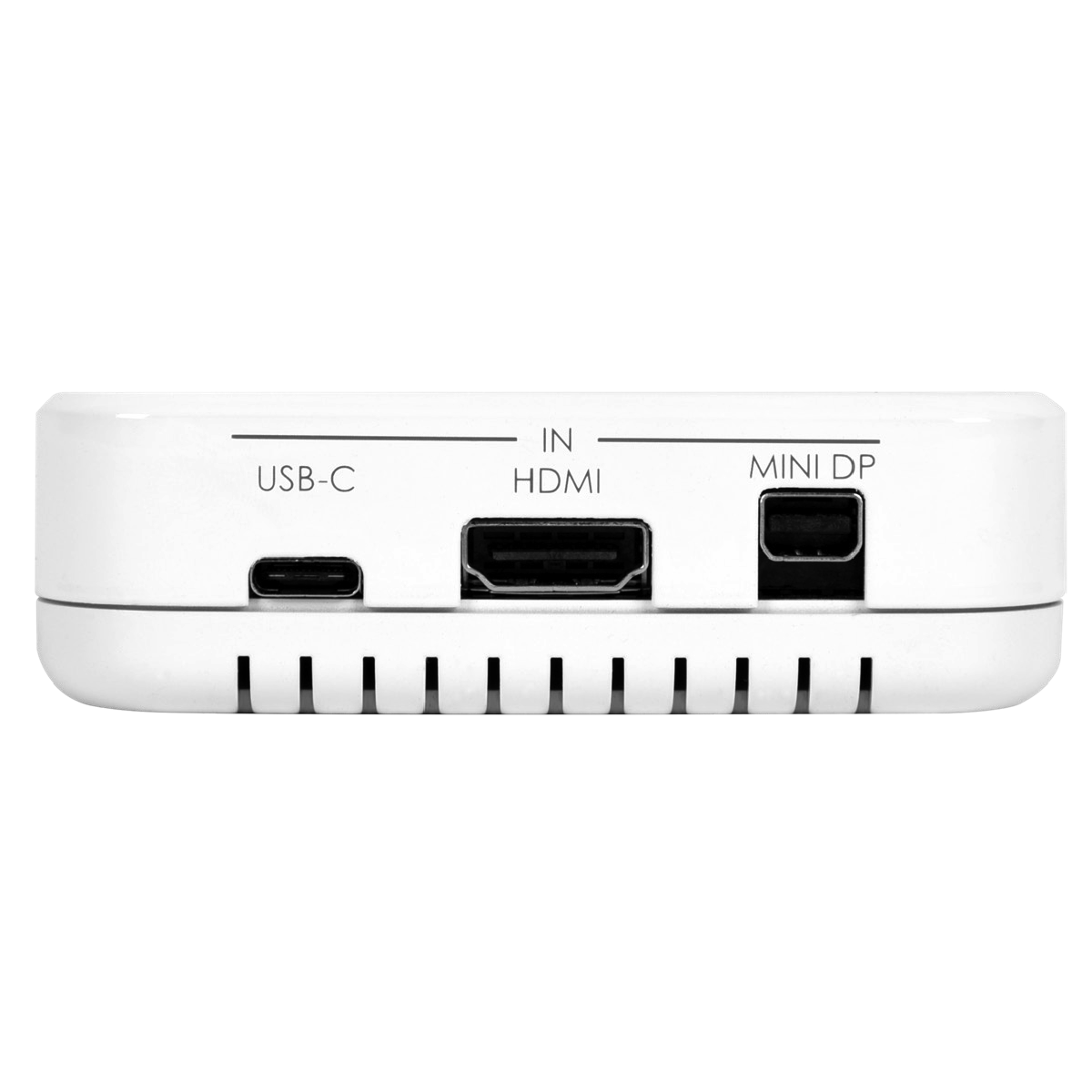

1xUSB-Type C, 1xDP (mDP), 1xHDMI-Type A
USB Type:
USB 2.0 (Mini-B)
Power
Current Rating:
1.2A
Dimensions
Width:
8.5cm
Depth:
8.7cm
Height:
2.6cm
Weight:
80g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
