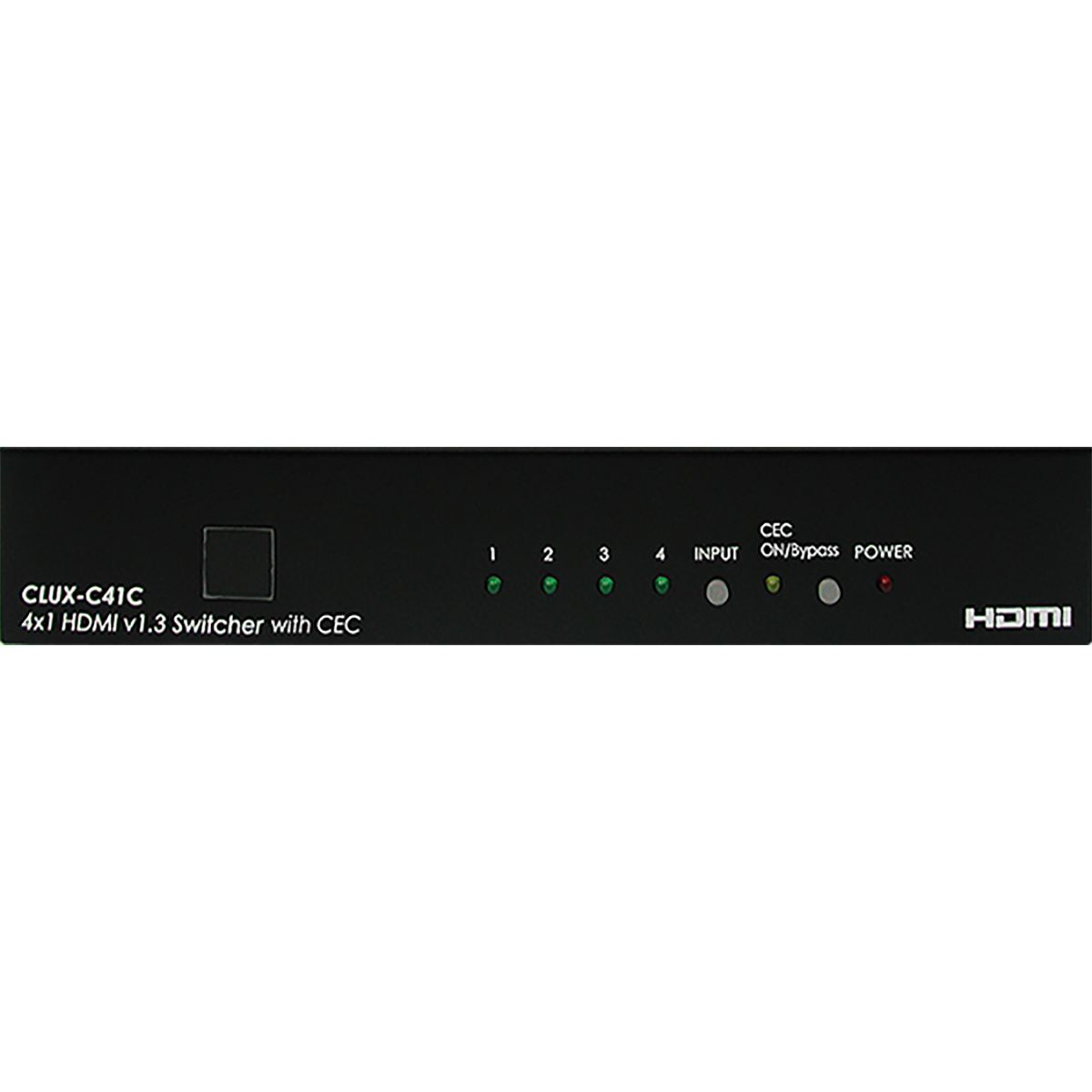

CLUX-C41C 4 by 1 HDMI V1.3 Switcher with CEC
Please sign in so that we can notify you about a reply
This is a high performance HDMI switcher that allows for various HDMI sources to share one HDTV display. This device features CEC control functions and supports deep color, xvYCC and RS-232 control. Simply press one button select your desired HDMI source to display on the HDTV or use remote control to control your sources from a distance. Switching from one HDMI input source to another will no longer be an inconvenience.
Features
- HDMI 1.3 and HDCP 1.1 compliant
- Supports deep color display RGB/YCbCr 4:4:4 24/30/36 bits
- Supports color space YCbCr 4:2:2 16/20/24 bits
- Supports high definition audio – Dolby Digital True HD® and DTS-HD®
- Signal Enhancement feature allows signal quality improvement after long distance transmission
- HDMI cable distance test with 1080p/8-bit resolution, the input/output can reach up to 15/15 meters. If running at 1080p/12-bit, the input/ output can reach at up to 15/6 meters
- PC resolution supports: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200) HD resolution supports: 480i ~1080p 50/60 and 1080p 24
- With remote control function
- Supports RS232 operation
- Supports CEC control function
- Supports xvYCC
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Switcher
Display Type:
PC
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
With Remote Control Function, Supports RS-232 Operation, Supports CEC Control function, Supports xvYCC
Power Rating:
3.3W
Applications:
Multi-Sources with One Display, Showroom Displayeducational Presentation
Material:
Metal
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
4 by 1xHDMI V1.3 Switcher, Remote Control (CR-63 with Battery), 5V DC Power Supply Adaptor, Operation Manual
Performance
Bandwidth:
2.25Gbps
Maximum Resolution:
1080pixels
Inputs and Ports
Video Input Type:

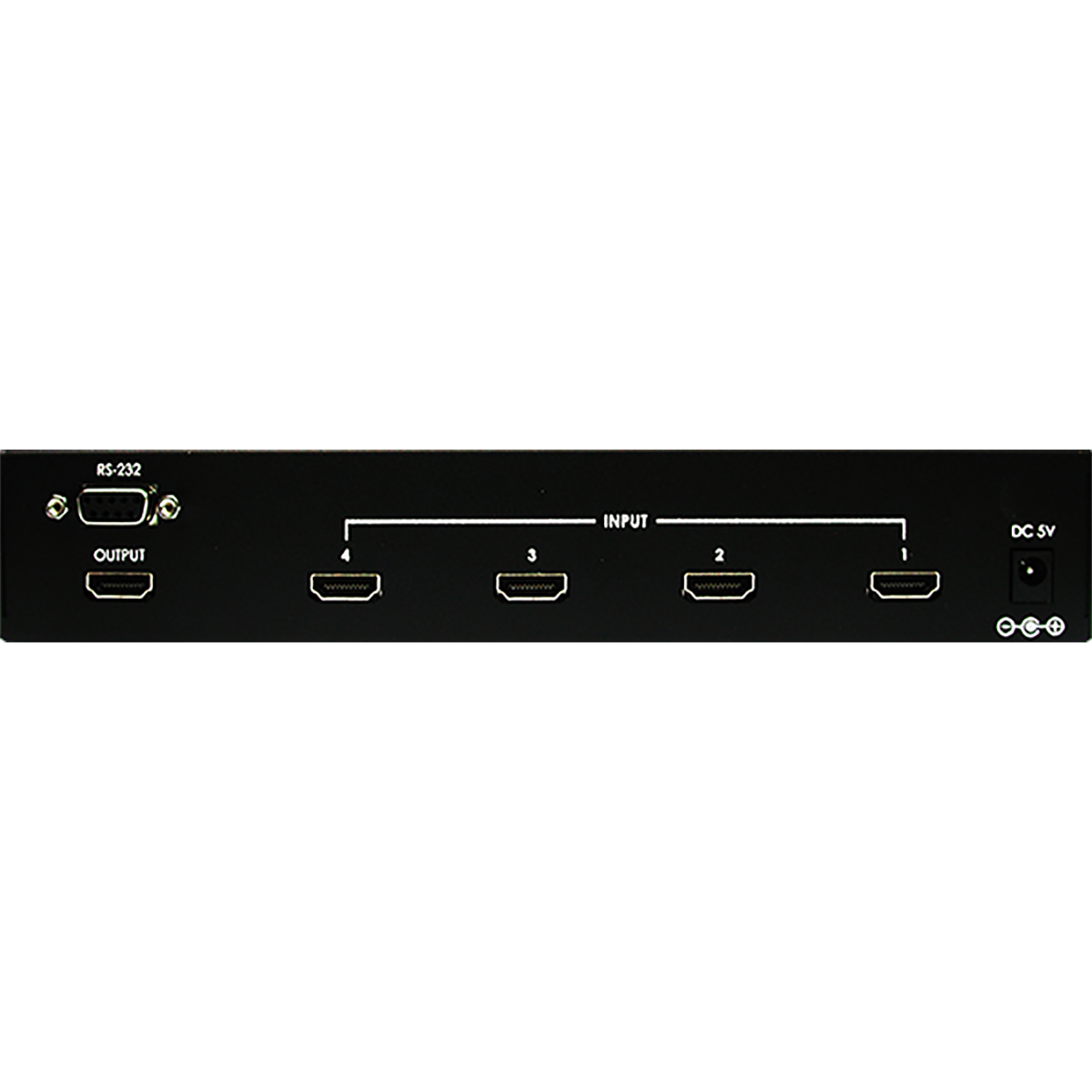

4xHDMI Female Ports (Type A Connector)
Power
Current Rating:
1A
Dimensions
Width:
24cm
Depth:
10.4cm
Height:
4.4cm
Weight:
760g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
