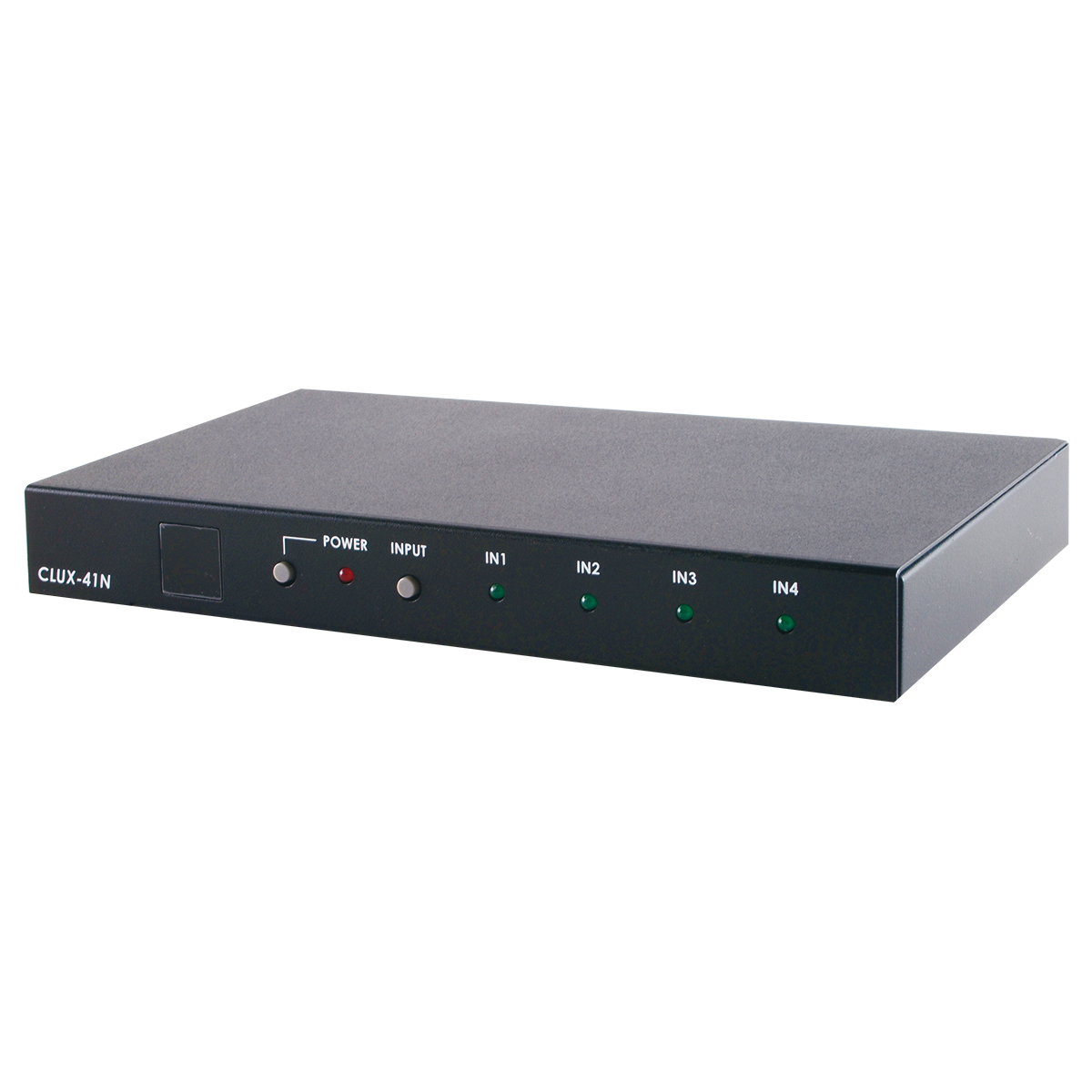

CLUX-41N HDMI 4 to 1 Switcher
Please sign in so that we can notify you about a reply
The HDMI 4 to 1 Switcher allows 4 HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic and manual input selection and a ‘last memory’ function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.
Features
- Supports 24/30/36-bit color depth display
- Supports Bitstream
- Auto Signal Enhancement that improves signal quality for long distance transmission
- Auto input detection with LED indicators
- EDID bypass
- Supports HDMI 3D signals
- Supports up to 1920 x 1200p(RB)@60Hz

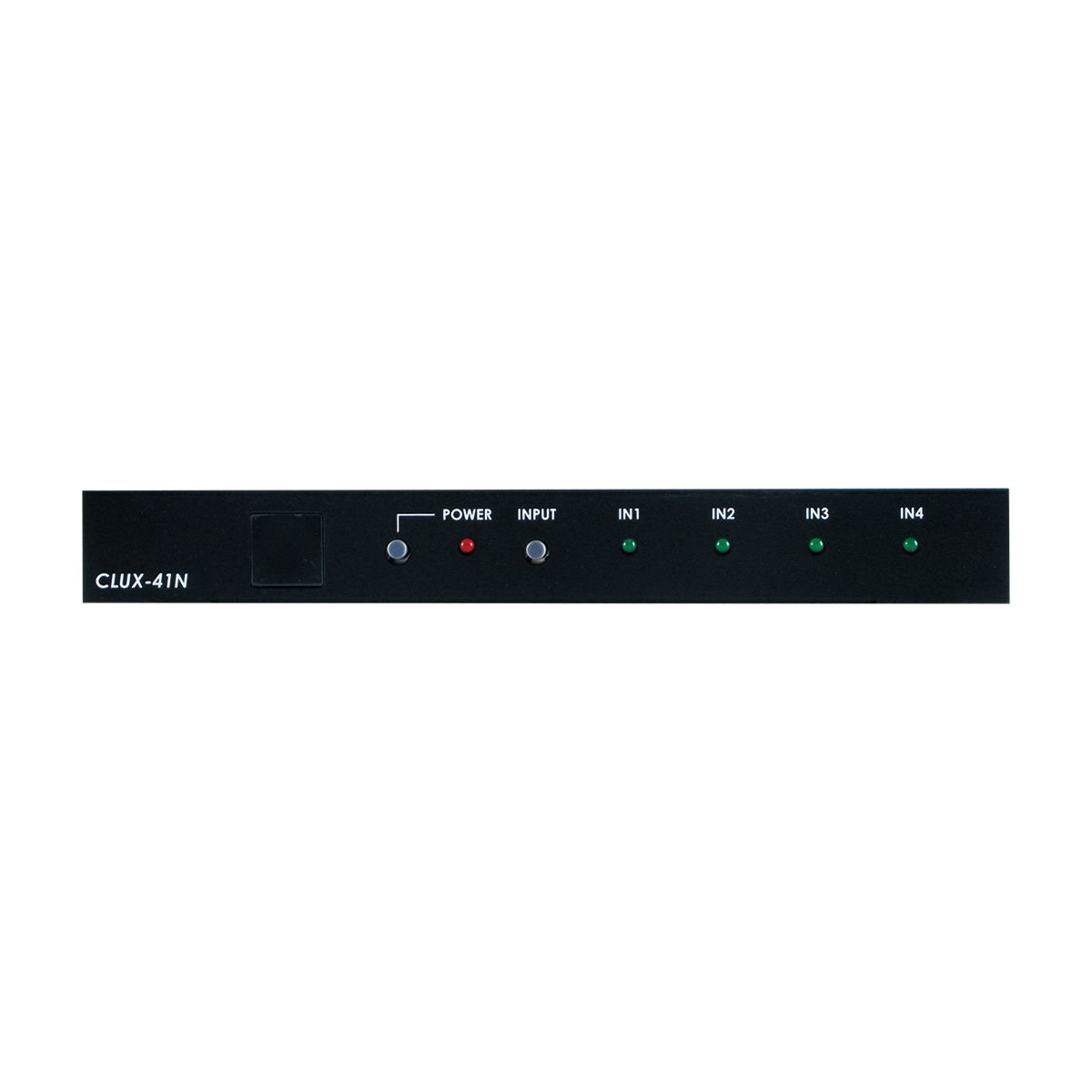

- Control via front panel buttons and IR remote contro
Brand:
Cypress Technology
Product Type:
HDMI Switcher
Specifications
Display Type:
PC, Laptop, TV, Monitor
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Easy to Install, Simple to Operate
Power Rating:
5.7W
Applications:
Share a Single TV/Monitor Input Between Three Source Devices, Add HDMI Inputs to An AV Receiver, Lecture Room Presentation, Public Display, Showroom Presentation
Material:
Aluminium
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
HDMI 4 to 1 Switcher, 5V/2.6A Power Adaptor, Remote Control (CR-22), Operation Manual
Performance
Bandwidth:
6.75Gbps
Audio Sample Rate:
12bits, 60Hz
Maximum Resolution:
1920x1200pixels
Inputs and Ports

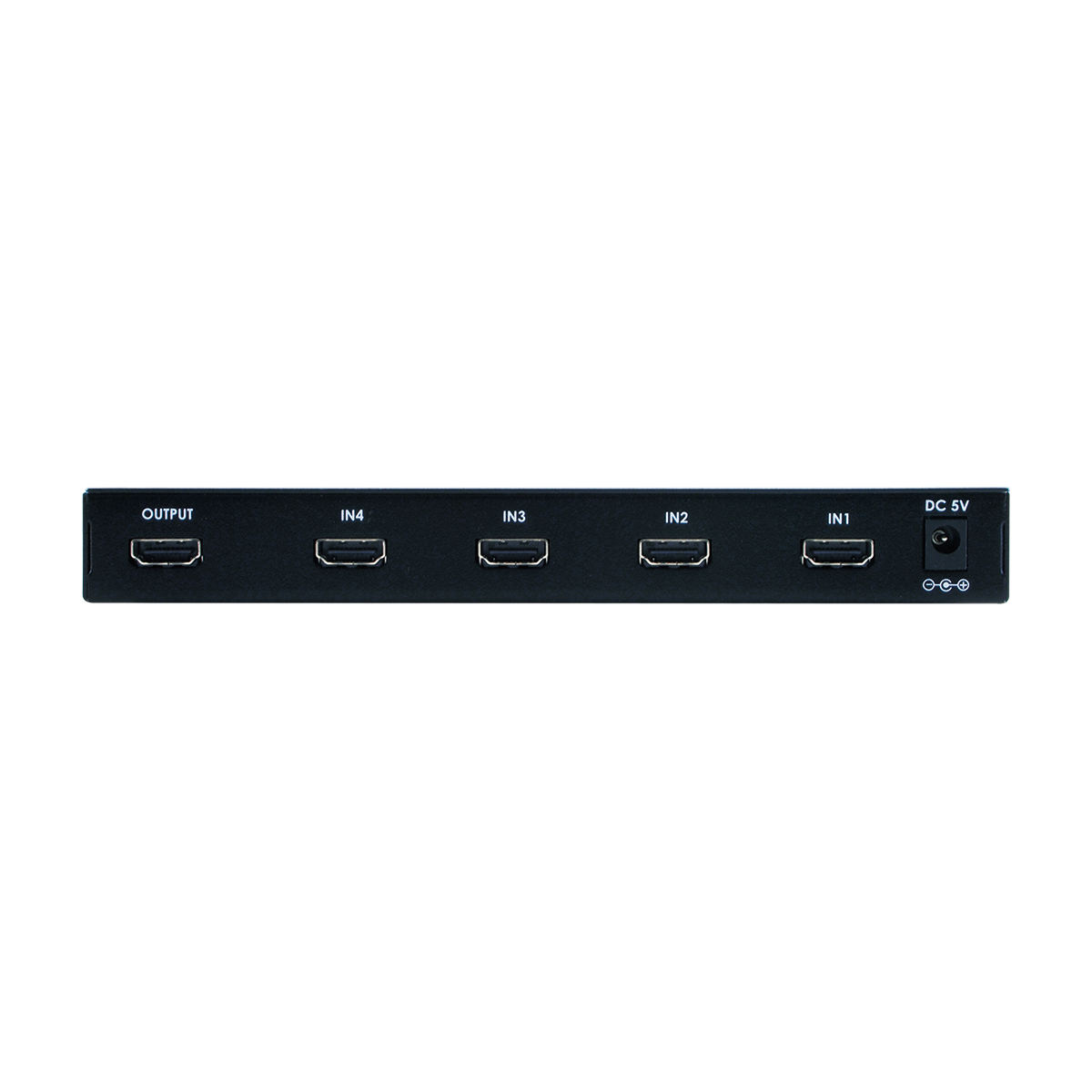

Video Input Type:
4xHDMI-Type A
Power
Current Rating:
2.6A
Dimensions
Width:
2cm
Depth:
10.4cm
Height:
2.5cm
Weight:
268g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
