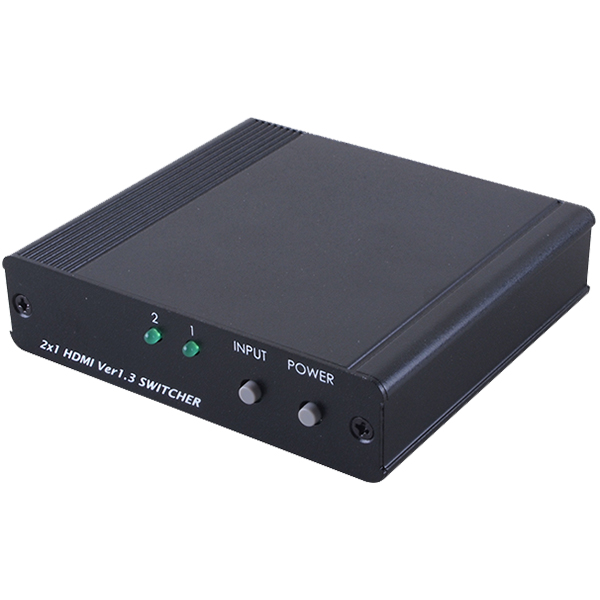

CLUX-21N 2x1 HDMI Switcher
Please sign in so that we can notify you about a reply

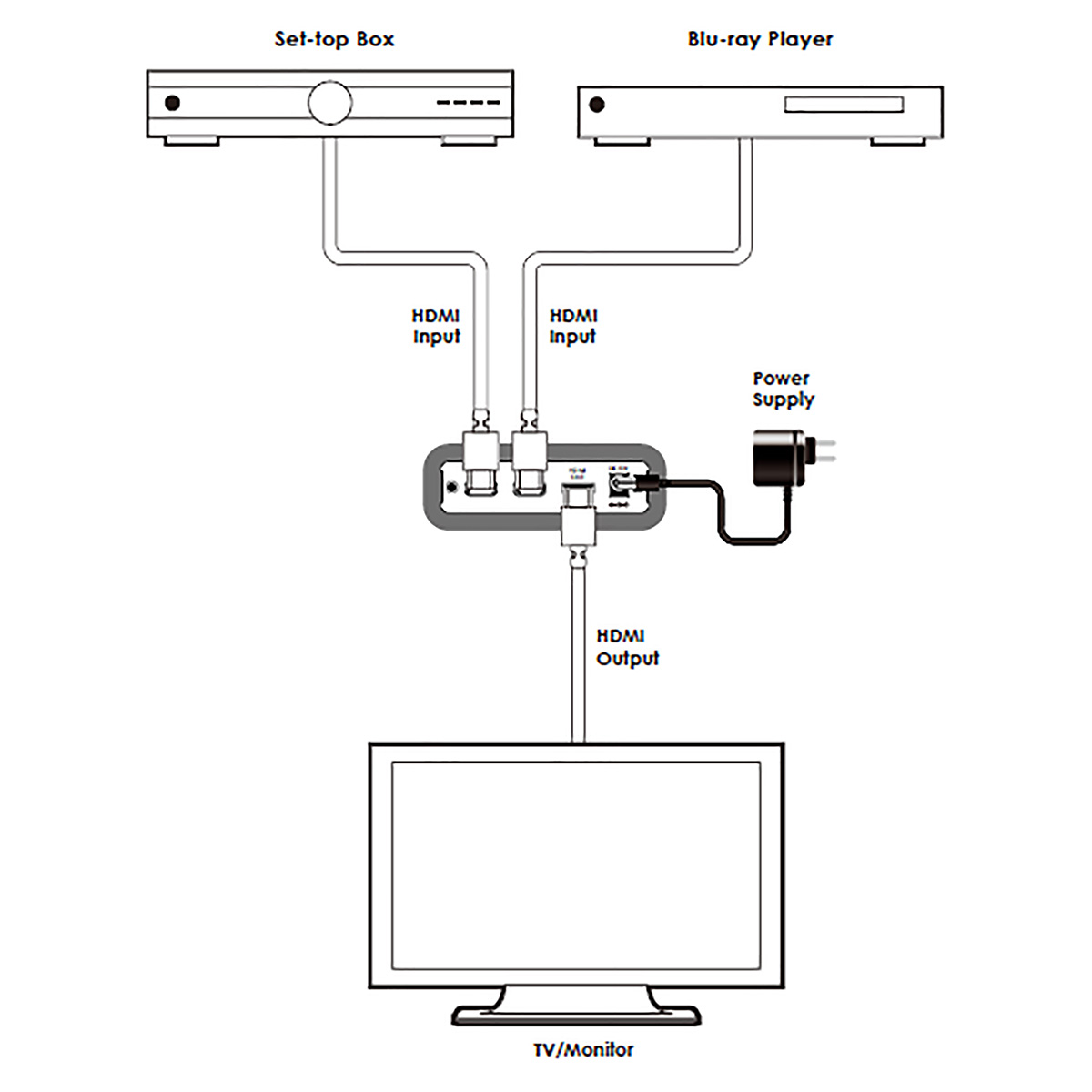

The HDMI 2 to 1 Switcher allows 2 HDMI sources to be connected to the same HDMI TV/Monitor input. It has both automatic and manual input selection and a ‘last memory’ function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.
Features
- Supports 24/30/36-bit color depth display
- Supports Bitstream
- Auto Signal Enhancement that improve signal quality after long distance transmission

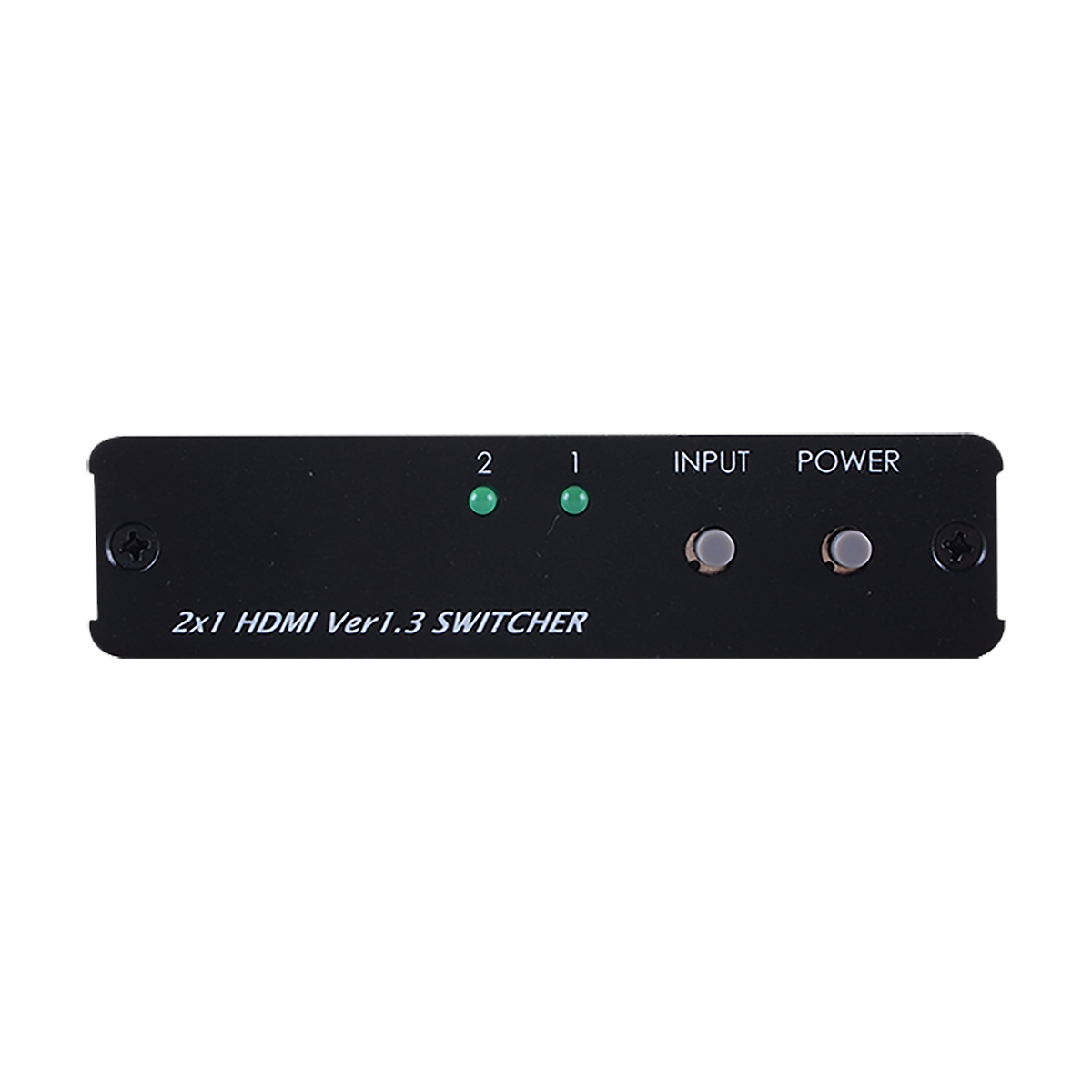

- Auto input detection with LED indicators
- EDID bypass
- Supports HDMI 3D signal
- Supports up to 1920 x 1200p(RB)@60Hz
Brand:
Cypress Technology
Product Type:
HDMI Switcher
Specifications
Display Type:
HDMI TV/Monitor
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Easy to Install, Simple to Operate
Power Rating:
3.1W
Applications:
Share a Single Tv/Monitor Input Between Two Source Devices, Add HDMI Inputs to An AV Receiver, Home Entertainment
Material:
Aluminium
Humidity:
20 to 90% RH (Non-Condensing)
Minimum Operating Temperature:
0°C
Includes:
HDMI 2 to 1 Switcher, 5V/1A Power Adaptor, Operation Manual
Performance
Bandwidth:
6.75Gbps
Audio Sample Rate:
12bits, 60Hz
Maximum Resolution:
1080pixels

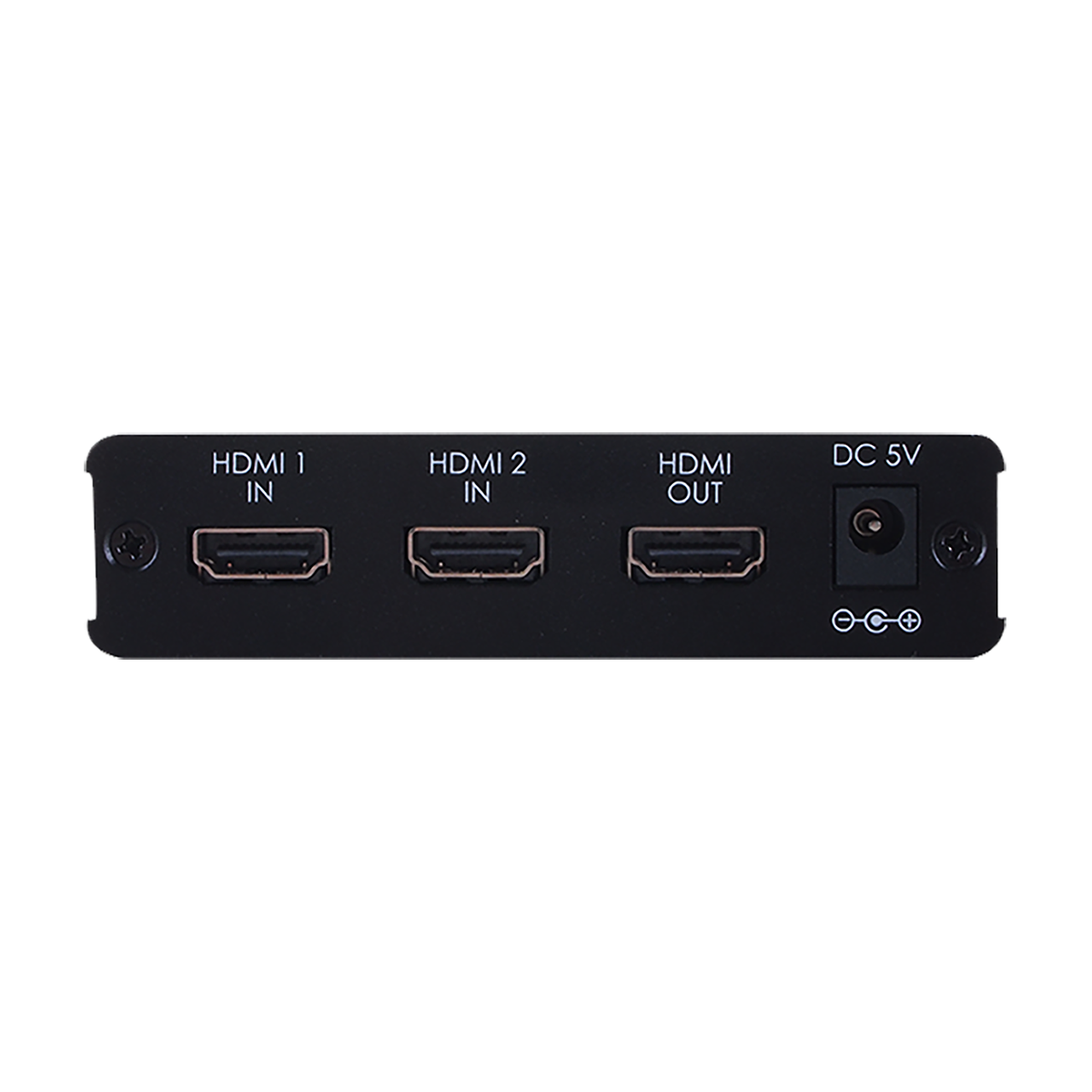

Inputs and Ports
Video Input Type:
HDMI-Type A
Power
Current Rating:
1A
Dimensions
Width:
10.1cm
Depth:
9.2cm
Height:
2.5cm
Weight:
196g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
