CH-2541TXM-TB UHD+ 3x1 Multi-Format to HDBaseT Table Box with PoH
Please sign in so that we can notify you about a reply
The CH-2541TXM-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate meeting rooms can be difficult to operate and provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the CH-2541TXM-TB provides the perfect balance between ease of use and portability. Providing the user with a flexible AV solution that removes the boundaries of how a meeting space can be used. The HDMI input, the Mini Display Port Input, and the USB-C input support resolutions up to 4K@60Hz. This Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) from a compatible Receiver (PSE), allowing for greater flexibility within different installation scenarios.
Features
- HDMI with 3D & 4K support
- Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
- HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 70m at 4K when using Cat.6a/7
- Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, and PoH (PD)
- Supports CEC bypass • Automatic input selection with hot plug detection enabling hands- free operation

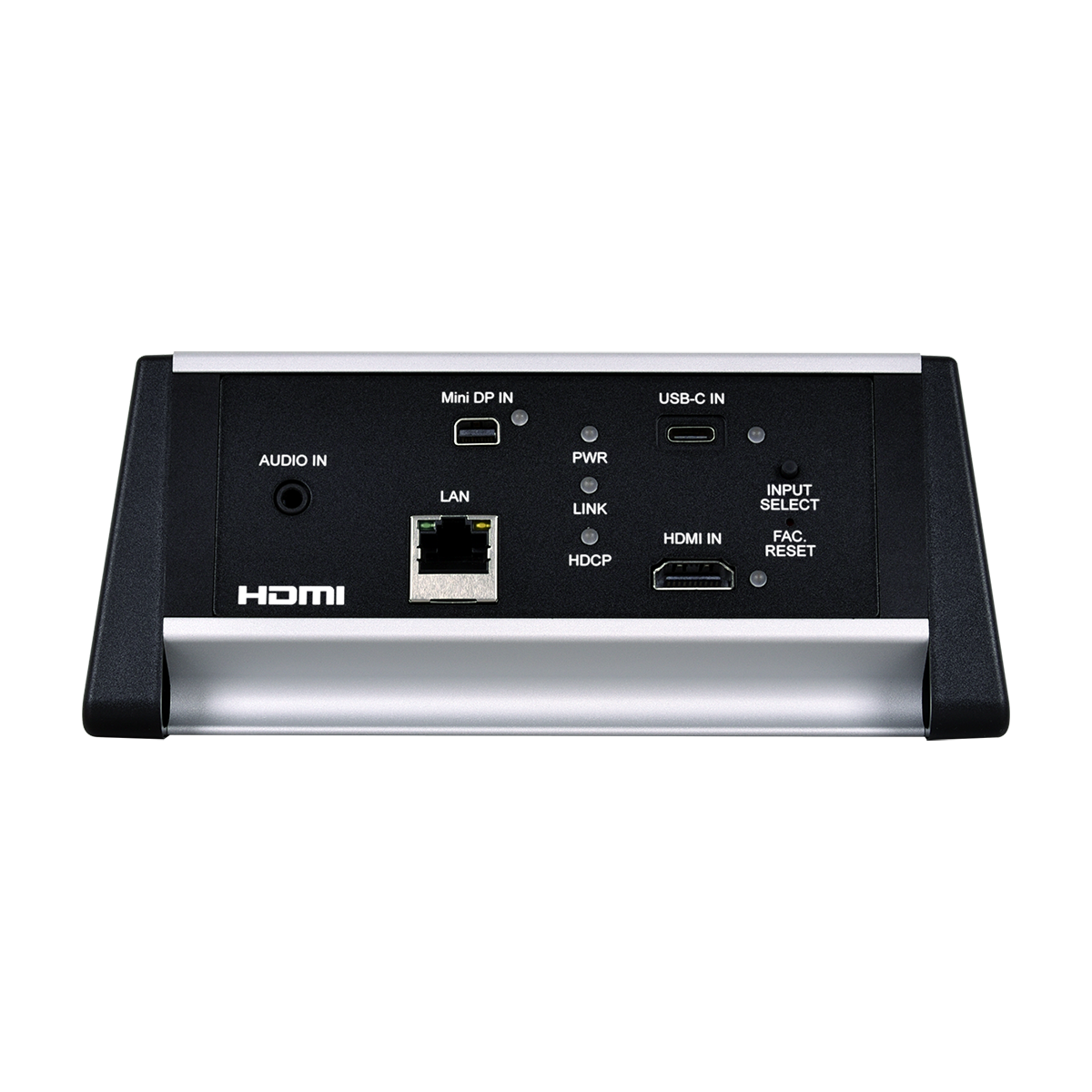

- Front panel LEDs indicate input selection, power and link status
Brand:
Cypress Technology
Product Type:
Multi Format HDBaseT Scaler
Specifications
Display Type:
PC, Laptop
Audio Format:
LPCM
Colour:
Black, Silver
Power Rating:
13.97W
Applications:
Household Entertainment Sharing and Control, Lecture Halls, Auditoriums, Classroom, Conference Rooms and Boardrooms, Hotel Event Space
Material:
Aluminium, Plastic
Includes:
1xUHD+ 3x1 Multi-Format to HDBaseT Table Box with PoH (PD), 1xOperation Manual
Performance
Bandwidth:
18Gbps
Audio Sample Rate:
8bits, 60Hz
Maximum Resolution:
2160pixels
Input Impedance Rating:
10kΩ
Inputs and Ports
Video Input Type:
HDMI-Type A, 1xDisplay Port (mDP), 1xUSB-Type C, 1x3.5mm Stereo Audio
USB Type:
USB-Type C
Connectivity
LAN Control:
LAN (RJ45)
Dimensions
Width:
17cm
Depth:
7.5cm
Height:
7.7cm
