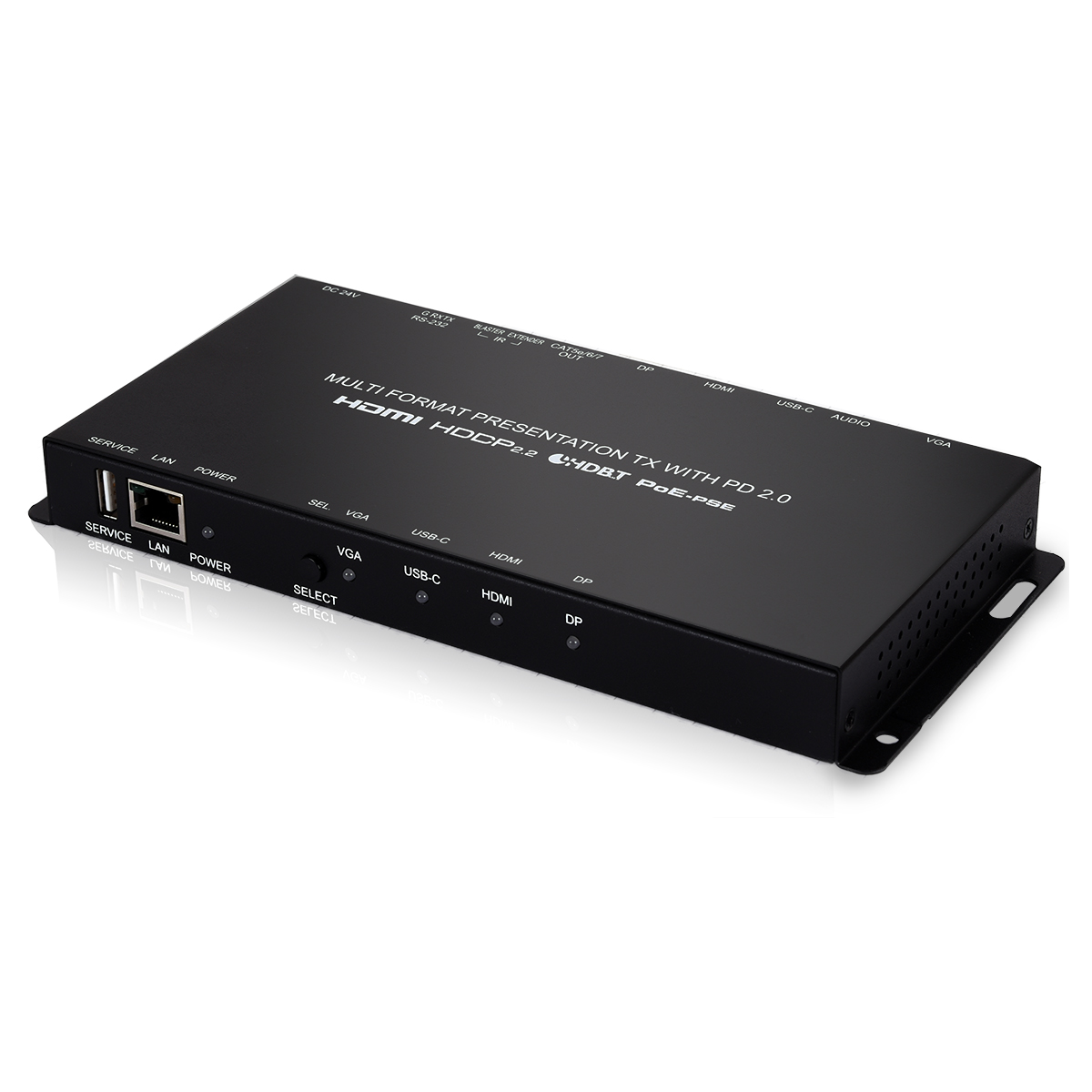

CH-1539TXPLPD UHD+ HDMI/DP/VGA/USB Type-C to HDBaseT Switcher
Please sign in so that we can notify you about a reply
This 4x1 Multi-Format to HDBaseT Switch is a 4K@60Hz (4:4:4) switcher featuring HDMI, DisplayPort, USB Type-C, and VGA with stereo inputs which are automatically converted to the standard HDBaseT format for use with a compatible receiver. The HDMI, DisplayPort and USB-C inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports resolutions up to WUXGA (RB). With the use of the 3.5mm audio input, stereo audio can be embedded with the VGA source as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported and will be automatically converted to 1080p when necessary.
Features
- Switchable HDMI, DisplayPort, VGA with analog audio, and USB Type-C inputs
- Analog stereo audio is automatically embedded with the video from the VGA input
- Supported HDBaseT feature set: HD Video & Audio, PoH, and Control Extension (Bi-directional IR/RS-232)
- HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 40m/131ft at 4K when using Cat.6a/7
- Supports standard PoH from the unit to connected HDBaseT Receivers (compatible Receivers only)
- Supports manual input selection or automatic input selection with hot plug detection and “Last Memory” feature
- Basic signal event automation using CEC commands
- USB Type-C port provides up to 60W to power or charge the connected device
Brand:
Cypress Technology
Specifications
Product Type:
Multi Format HDBaseT Switcher
Display Type:
PC, Laptop
Colour:
Black
Power Rating:
82W
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Material:
Aluminium
Includes:
1xHDMI/Display Port/VGA/USB-Type C to HDBaseT Switcher, 1x24V/3.75A DC Power Adapter, 1xPower Cord, 1x3.5mm to IR Blaster Cable, 1x3-Pin Terminal Block, 1xOperation Manual
Performance
Bandwidth:
18Gbps
Audio Sample Rate:
8bits, 60Hz
Maximum Resolution:
2160pixels
Input Impedance Rating:
36.9kΩ
Inputs and Ports
Video Input Type:

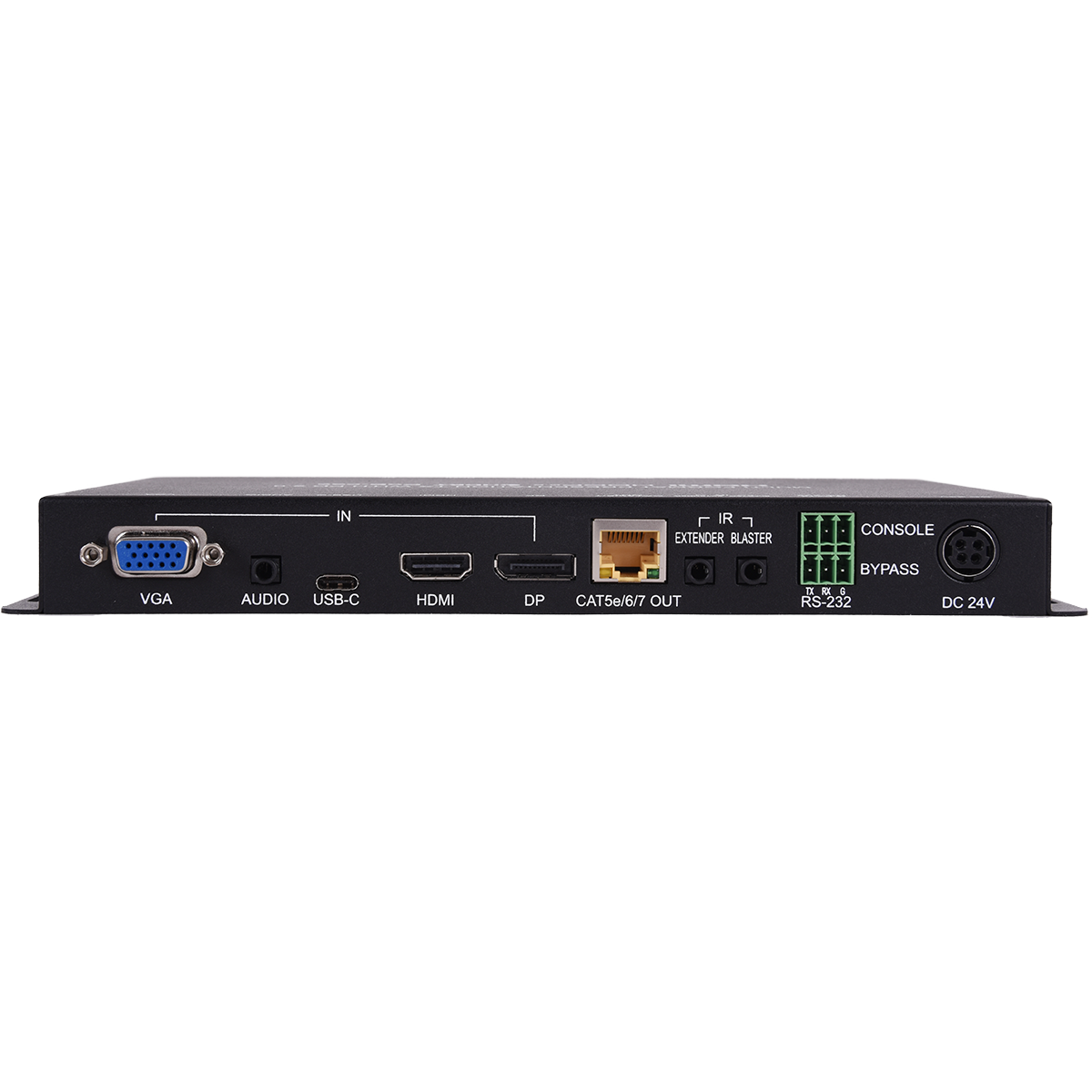

HDMI-Type A, Display Port, USB-Type C VGA (HD-15), 3.5mm Stereo Audio
USB Type:
USB-Type C
Connectivity
LAN Control:
LAN (RJ45)
Power
Current Rating:
3.75A
Dimensions
Width:
23.15cm
Depth:
11.6cm
Height:
2.5cm
Weight:
657g
Other
Voltage Rating:
24V
Voltage Rating:
24V
