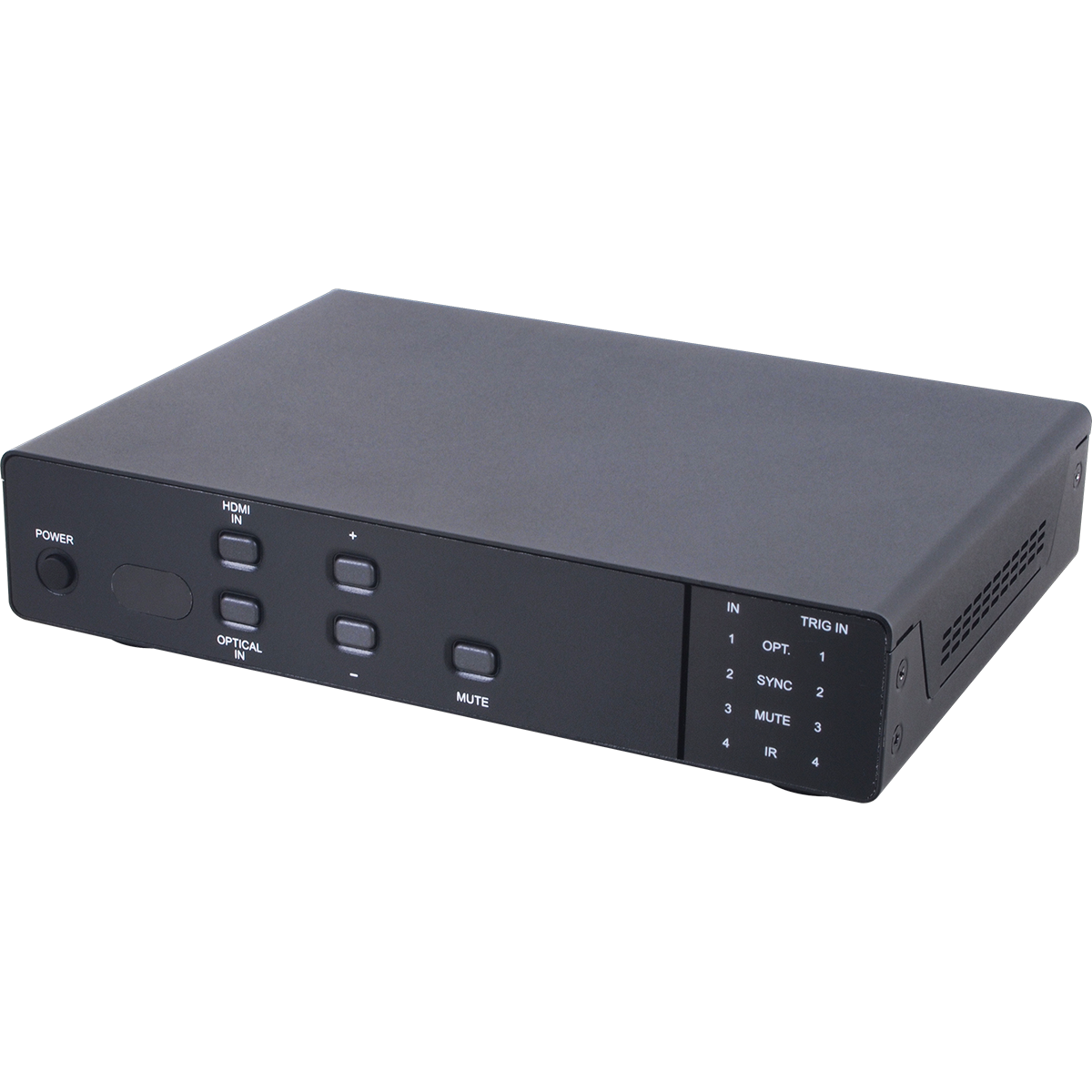

CDPS-UH4H1HFS 4K UHD 4x1 HDMI Switcher with Control System Center
Please sign in so that we can notify you about a reply
This 4×1 HDMI 4K UHD Switcher allows you to select between four HDMI sources and route your selection to a single HDMI display. Additionally, stereo audio is extracted, output, and amplified, without the need for a dedicated amp, via speaker connections on the back of the unit making it ideal for small events or classrooms. The included control system functionality provides access not only to direct but also indirect control interfaces for all of your devices. Direct control methods such as IR, RS-232, relay and DC triggers allow users to maintain traditional styles of control over devices while indirect device control is possible using Telnet, allowing users to control newer, more complicated, devices. The operation of the system can be easily managed through the included WebGUI by connecting with your PC, laptop or even a mobile device such as a tablet.
Features
- HDMI with 3D and 4K UHD support, DVI 1.0 compatible
- Supports HDCP 1.4 for all HDMI inputs and outputs
- Supports resolutions up to 4K UHD: 3840×2160@24/25/30Hz & 3840×2160@50/60Hz (YUV 4:2:0), 4096×2160@24/25/30Hz & 4096×2160@50/60Hz (YUV 4:2:0)
- Supports HDMI data rates from 300Mbps up to 3Gbps and “Deep Color” up to 1080p w/ 36-bit color
- Supports auto source detection and switching
- Amplified stereo speaker outputs support LPCM 2.0 sources from HDMI or optical
- Supports simultaneous audio output over HDMI and analog stereo
- Per-input HDCP support control
- Supports system control with 5 IR outputs, 4 Trigger inputs, 4 Relay outputs, 2 COM ports, and 1 Ethernet port
- Supports 4 trigger inputs with a voltage range of 0~3.3V
- Supports COM port baud rates from 4800~115200bps
- Supports RS-232, IR, Telnet, and WebGUI controls
Brand:
Cypress Technology
Product Type:
HDMI Switcher
Specifications
Display Type:
PC
Audio Format:
LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black
Applications:
Home Theatre with Smart Home Control, Showroom Display with Kiosk Controls, Security/Alarm Monitoring and Control, Classroom
Material:
Metal
Minimum Operating Temperature:
0°C
Includes:
1x4 by 1xHDMI 4K UHD Switcher, 1xRemote Control (CR-153), 1xIR Blaster Cable, 1x3.5mm to 9-Pin D-sub Female Connector, 2x3-Pin Terminal Blocks, 1x5-Pin Terminal Block, 1x8-Pin Terminal Block, 1x24V/3.75A Power Adaptor, 1xPower Cord, 1xOperation Manual
Performance
Bandwidth:
340MHz/10.2Gbps
Maximum Resolution:
480i@60Hz-4K@60Hz (4:2:0, 8bits) VGA@60Hz-WUXGA@60Hz (RB)
Inputs and Ports
Video Input Type:
4xHDMI, 1xOptical Audio, 4xTrigger (5-Pin Terminal Block)
Power
Current Rating:
3.75A
Dimensions
Width:
21.9cm
Depth:
17.cm
Height:
4.5cm
Weight:
1272g
Other
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
