CDPS-41SQN 4x1 HDMI Switcher with PiP/PoP & Multi-Window Display
Please sign in so that we can notify you about a reply
This HDMI Switcher is a high performance, low latency, multi-windowing system that can be easily configured for a variety of professional video processing tasks. Up to 4 different input sources may be freely selected and arranged and output to a single display. When switched into single window mode the unit can be a seamless switcher with cross-fade support, or two sources can be combined with the use of chroma keying. 90-degree rotation is also supported when outputting a single full screen window. Additionally, the unit supports the option of uploading a graphic logo for display over the top of the output video. Video resolutions up to 1080p60 and PC resolutions up to WUXGA are supported along with audio up to 192kHz, 7.1 channel, LPCM for both inputs and output. The unit can be controlled in a wide variety of ways, including via front panel buttons with OSD menu, WebGUI, Telnet, RS-232, and IR remote.
Features
- Seamless switching between sources and windows

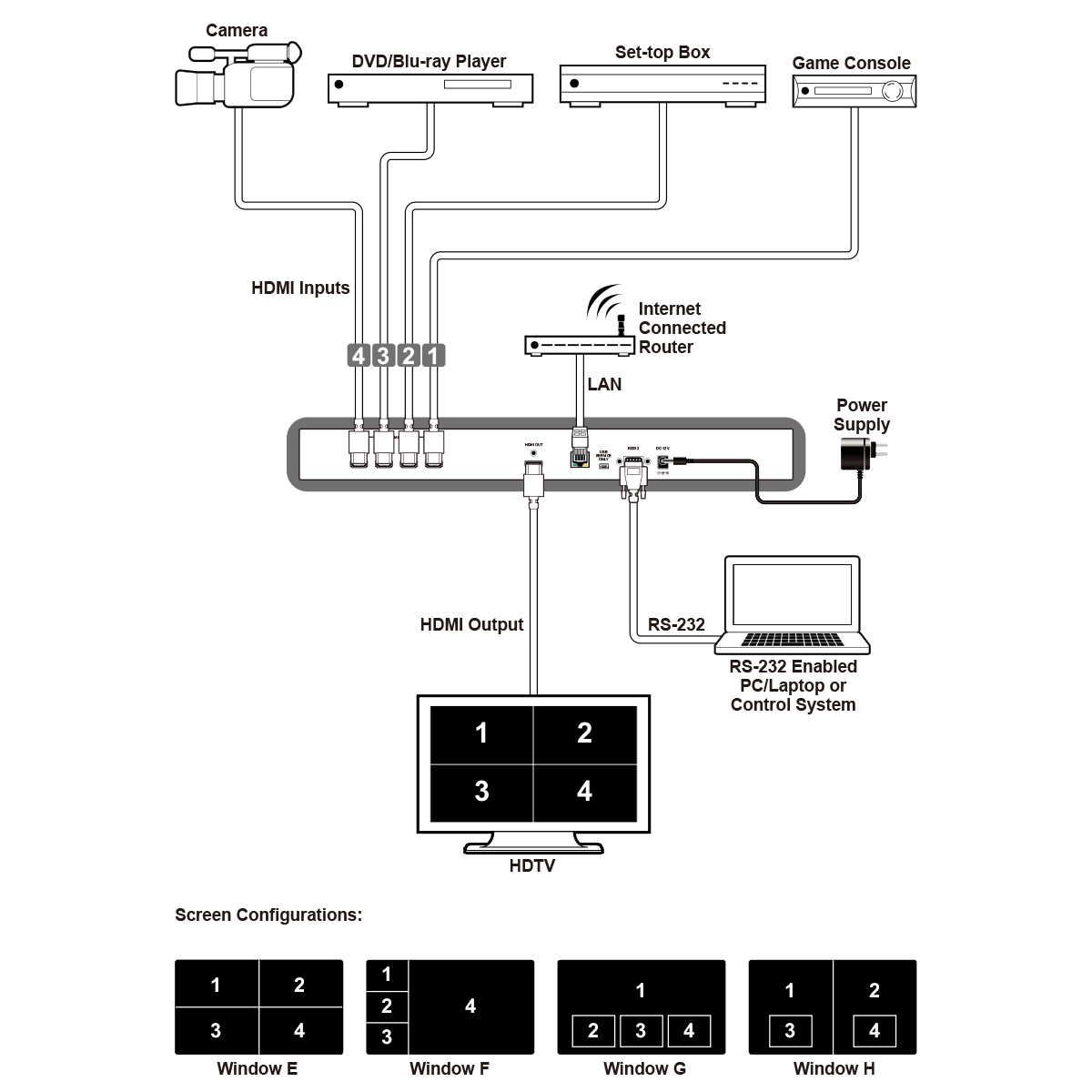

- Supports PiP, PoP, and multi-window display
- Easy individual window size and position and layer priority adjustment
- Enlarge or shrink up to 4 input windows
- Crossfade, chroma key, mirror, and rotation (90˚ left/right and 180˚) functions
- Supports the uploading of a user customizable graphic for display over the top of video output
- 8 hot keys dedicated to window and source selection, 4 customizable window layout hot keys, and 4 software-only hot keys for additional stored window layout configurations

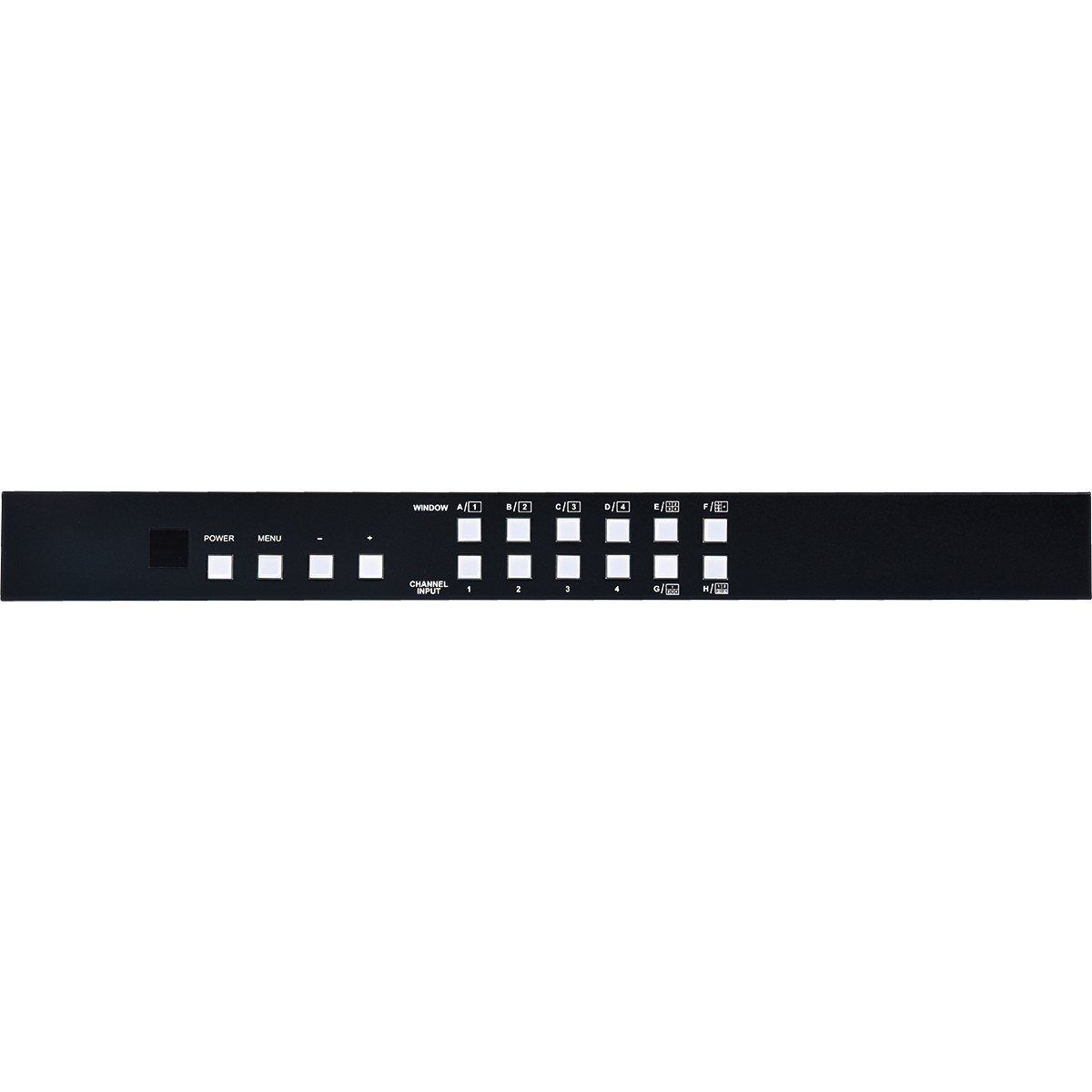

- Control via front panel with OSD menu, WebGUI, Telnet, RS-232, and IR remote
Brand:
Cypress Technology
Product Type:
HDMI Switcher
Specifications
Display Type:
Multi-Window Display
Colour:
Black
RS-232 Connector Type:
DE-9
Special Features:
High Performance
Power Rating:
18W
Applications:
Broadcasting Control Rooms, Surveillance Rooms, Public Commercial Display, Video Conference and Digital Presentation Boardroom
Material:
Metal
Includes:
1x4 by 1xHDMI Switcher with PiP/PoP & Multi-Window Display, 1xRemote Control (CR-124), 1x12A/3A Power Adaptor, 1xRack Mount Ears (Set of 2), 1xOperation Manual
Performance
Bandwidth:
6.75Gbps
Maximum Resolution:
1920x1200pixels

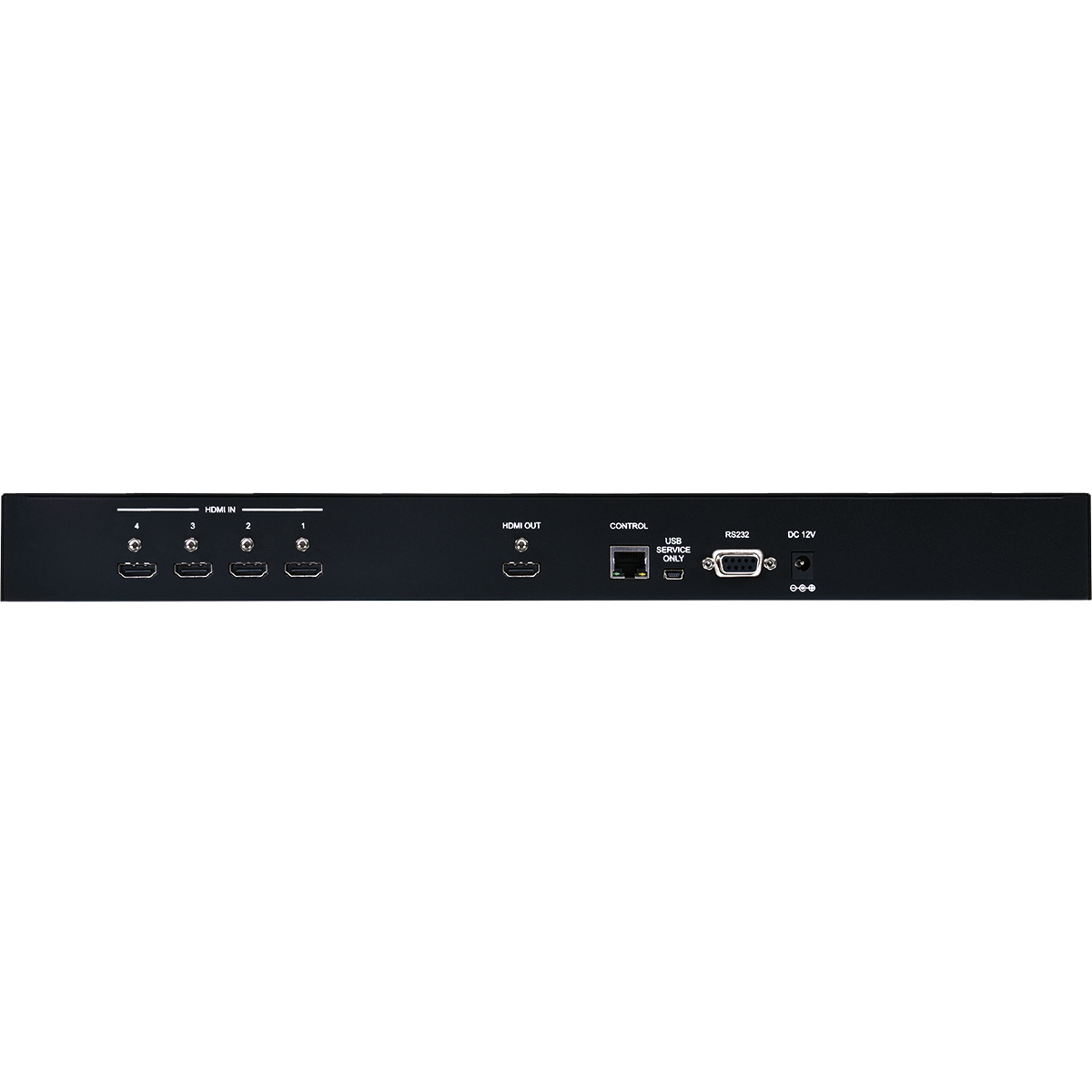

Inputs and Ports
Video Input Type:
HDMI-Type A
Connectivity
LAN Control:
LAN (RJ45)
Power
Current Rating:
3A
Dimensions
Width:
43.6cm
Depth:
25.6cm
Height:
4.9cm
Weight:
2200g
Other
Voltage Rating:
12V
Voltage Rating:
12V
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
