6241HDXL 4x1 3G HD–SDI Switcher
Please sign in so that we can notify you about a reply

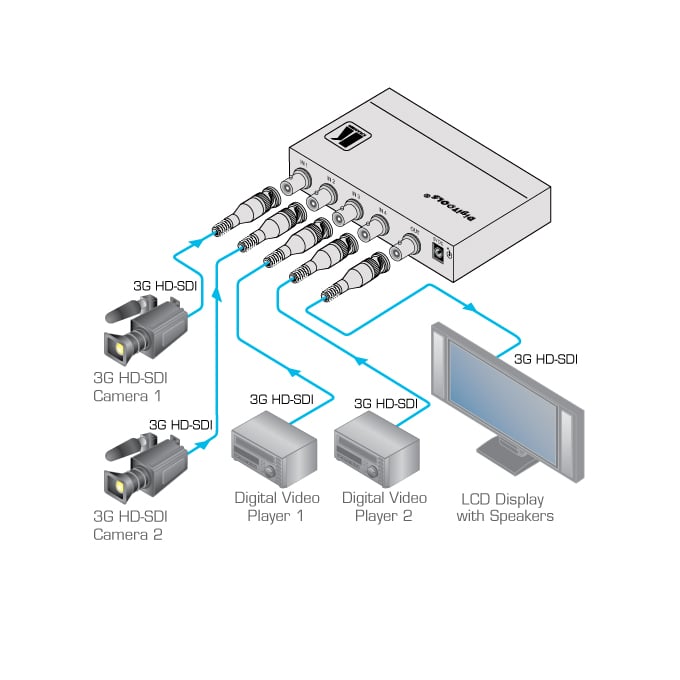

The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.
Features
- Max. Data Rate — 3Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Brand:
Kramer
Part number:
90-70928290
Product Type:
HD-SDI Switcher
Specifications
Applications:
Video Broadcast Studios for Signal Routing, Non-Linear Editing Suites, Video Production Studios, Boardrooms and Classroom
Includes:
Power Supply, Mounting Bracket
Performance
Input Impedance Rating:
75Ω
Output Level Type:
800mVpp/75Ω
Power
Output Impedance Rating:
75Ω
Current Rating:
410mA
Dimensions
Length:
23.3cm
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.25kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, ISO 9001 Certified
