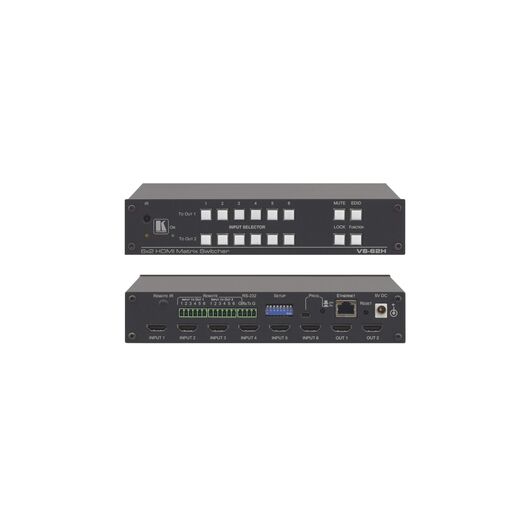

VS-62H 6x2 4K HDMI Matrix Switcher
Please sign in so that we can notify you about a reply

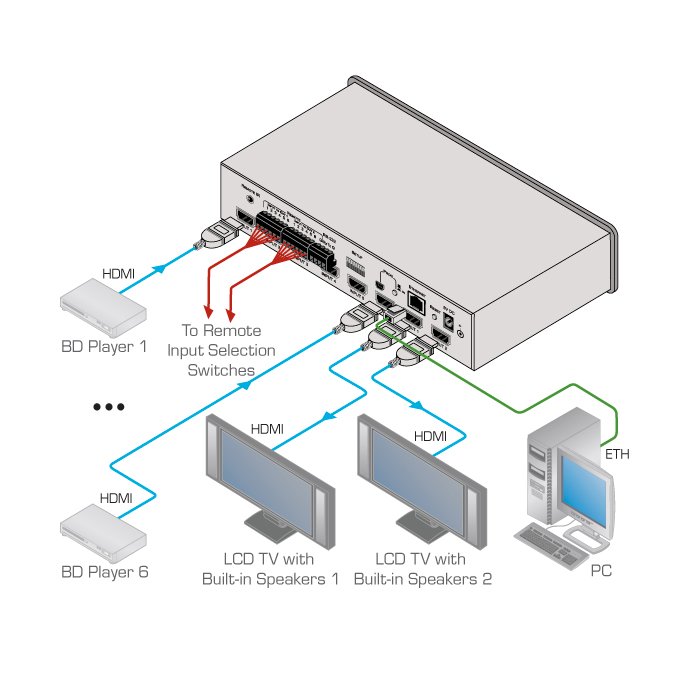

VS-62H is a high-quality, 6x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.
Features
- Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
- HDCP 1.4 Compliant.
- HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
- EDID Capture — Copies and stores the EDID from a display device.
- Programmable Step–In Functionality — When used in conjunction with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- True Video Clock Detection.
- Auto Switching Option — For either or both outputs, last–connected or priority switching.
- Non–Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Lock Button — Prevents unwanted tampering with the front panel.
- Internal Pattern Generator.
- Kramer Protocol 3000 Support.
- Embedded Web Pages — Provide remote configuration and operation.
- Static or Dynamic DHCP IP Addressing.
- Flexible Control Options — Front panel buttons, IR remote (available upon request) , optional external remote IR receiver, RS–232, Ethernet, contact closure, embedded Web server.
- USB Port — For upgrading firmware.
Brand:
Kramer
Part number:
20-80122090
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
Front Panel Button, Infrared Remote Control Transmitter, RS-232, Ethernet, Remote Input Selection Switch
Special Features:
HDCP 1.4 Compliant, True Video Clock Detection, Internal Pattern Generator
Applications:
Conference Rooms, Education, Hospitality
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter
Performance
Resolution:
WUXGA, 4K@60Hz UHD (4:2:0), 4Kx2K
Video Bandwidth:
8.91Gbps (2.97Gbps per Graphic Channel)
Baud Rate:
9600bps, 115200bps

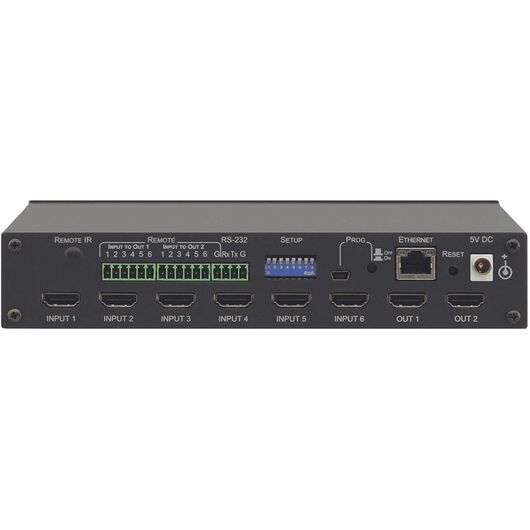

Inputs and Ports
Input Port Type:
6xHDMI
Output Port Type:
2xHDMI
Number of Ports:
6x2
Power
Current Rating:
880mA
Dimensions
Length:
16.3cm
Width:
21.46cm
Height:
4.3cm
Weight:
1kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
