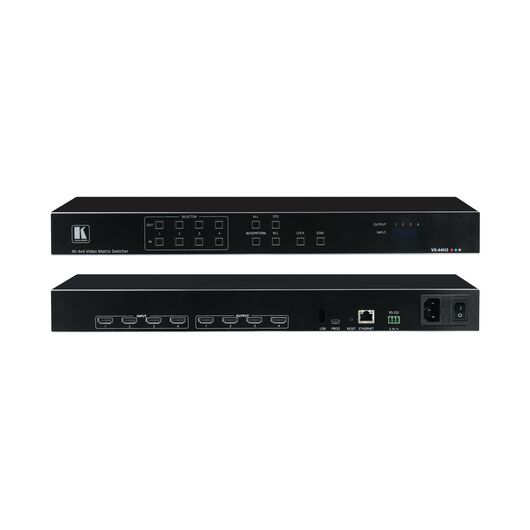

VS-44H2 4x4 4K HDR HDCP 2.2 Matrix Switcher
Please sign in so that we can notify you about a reply
VS-44H2 is a high-performance 4x4 matrix switcher for 4K@60Hz (4:4:4) HDR signals. It reclocks and equalizes the signals and can route any one of 4 HDMI, HDCP-Compliant sources (selectable) to any or all outputs simultaneously.
Features
- High–Performance AV Matrix — Switches 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant signals to 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant outputs at up to 18G data rate. Featuring Kramer re–Klocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.
- HDMI Support — Deep Color, 3D, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
- EDID Management — Individual EDID management per input. Captures and stores the EDID from a display device.
- Flexible Content Protection — Selectable HDCP per input.
- Quick Access to Common Configurations — Save up to 8 preset configurations.
- Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
- Smart Switching — Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.
- Embedded Pattern Generator — With selectable patterns.
- Convenient Unit Control and Configuration Options — Local control via front panel switching, memory, lock and EDID buttons, and Input/Output LED display. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.
- Cost–Effective Maintenance — Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet.
- Easy Installation — 19” enclosure for rack mounting in a 1U rack space with included rack ears and universal 100–240V AC power supply.
Brand:
Kramer
Part number:
20-80445130
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
Input/Output Selection, Mute, Test Pattern, Memory, Front Panel Lock, Button. RS-232 and USB Connections for Sending Serial commands via PC, touchscreen System or other Serial Controller. Embedded Web Pages via LAN for Configuration and Control
Special Features:
High-Performance AV Matrix, Flexible Content Protection-Selectable HDCP per Input, Cost-Effective Maintenance, Easy Installation
Power Rating:
54VA
Applications:
Control Rooms with Multiple Displays, Presentation and Multimedia, Systems that Require Automatic HDMI Routing
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Rack Ears, Power Cord, Rubber Feet
Performance
Resolution:
4K@60Hz (4:4:4)
Inputs and Ports
Input Port Type:
4xHDMI
Output Port Type:
4xHDMI
Number of Ports:
4x4
Dimensions
Length:
23.7cm
Width:
43.64cm
Height:
4.3cm
Weight:
1.4kg
Other
Voltage Rating:
100 TO 240V AC
