VS-44DT 4x4 4K60 4:2:0 HDMI/HDBaseT Extended-Reach Matrix Switcher, 220V
Please sign in so that we can notify you about a reply

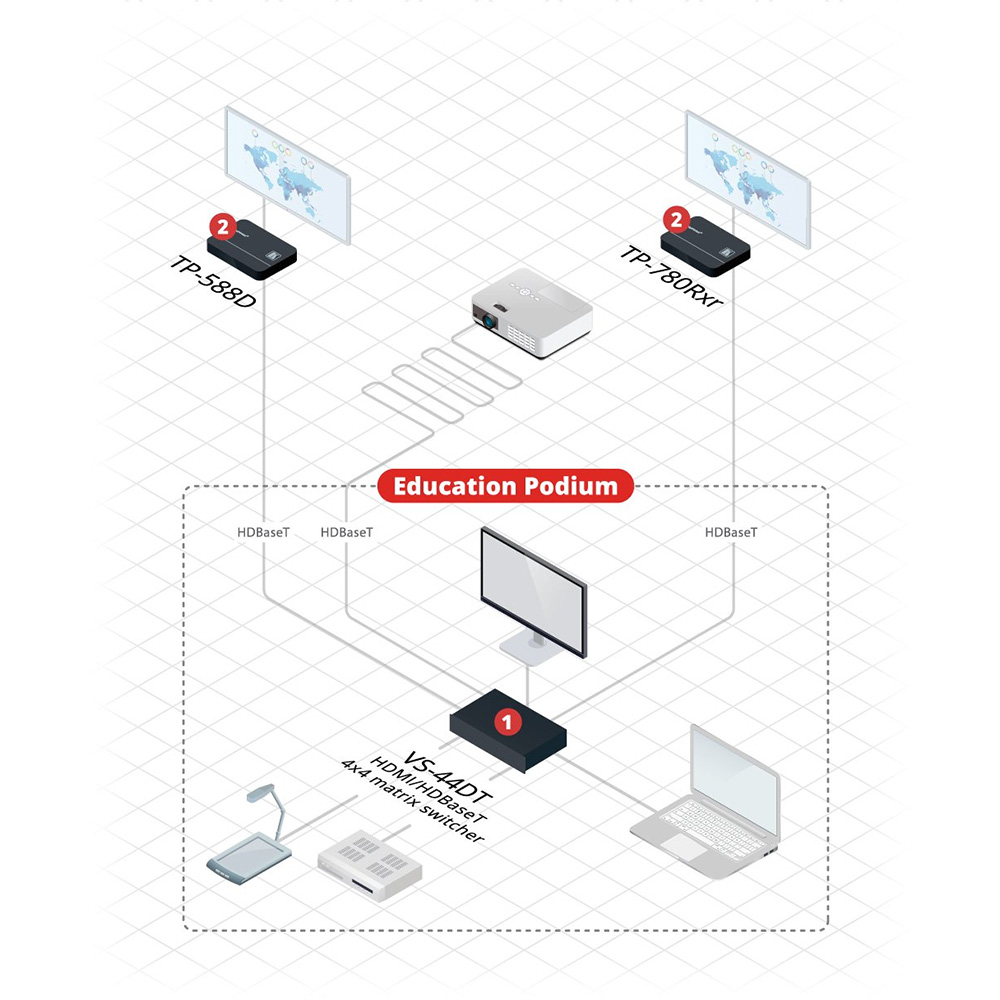

VS-44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS-232 and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS-232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs. VS-44DT connects to compatible HDBaseT receivers such as, TP-780RXR, TP-580RXR and TP-588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.
Features
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
- HDBaseT Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
- Cables — For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS–44DT.
- HDBaseT Extension — Includes Video, Audio, Ethernet, RS–232 and IR signals.
- Outputs — 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs.
- PoE Support — PoE provider to HDBaseT receivers such as the TP–588D and TP–780RXR.
- HDTV Compatible.
- HDCP Compliant.
- EDID Capture — Copies and stores the EDID from a display device.
- HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD® and 7.1 PCM.
- Non–Volatile Memory — Stores and recalls preset matrix configurations.
- Automatic Output Shutdown — If no input signal is detected after a configurable idle period.
- Kramer Protocol 3000 Support.
- Lock Button — Prevents unwanted tampering with the settings.
- Flexible Control Options — Embedded Web server and RS–232.
- Worldwide Power Supply — 100–240V AC.
Brand:
Kramer
Part number:
20-00044030
Specifications
Product Type:
HDMI/HDBaseT Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1xEthernet on an RJ45 Connector, 1xProgram on a USB Connector, 1xRS-232 Control on a 3-Pin Terminal Block, 1xRS-232 Data on a 3-Pin Terminal Block
Version:
220V
Special Features:
HDTV Compatible, HDCP Compliant
Power Rating:
60VA
Applications:
Event Rooms, Large Conference Rooms, Lecture Halls
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Rack Ears, IR Blaster
Performance
Video Bandwidth:
10.2Gbps (3.4Gbps per Graphic Channel)
Inputs and Ports
Input Port Type:
4xHDMI on HDMI Connector, 5xIR on 3.5mm Mini Jack Connector
Output Port Type:
2xHDMI Connector, 4xHDBaseT on RJ45 Connector, 5xIR on 3.5mm Mini Jack Connector, 1xUnbalanced Stereo Audio on a 3.5mm Mini Jack Connector
Number of Ports:
4x4
Dimensions
Length:
35.3cm
Width:
43.6cm
Height:
4.3cm
Weight:
3.3kg
Other
Voltage Rating:
100 TO 240V AC
Standards Met:
CE
