VS-42UHD HDMI Automatic Matrix Switcher, 4x2
Please sign in so that we can notify you about a reply

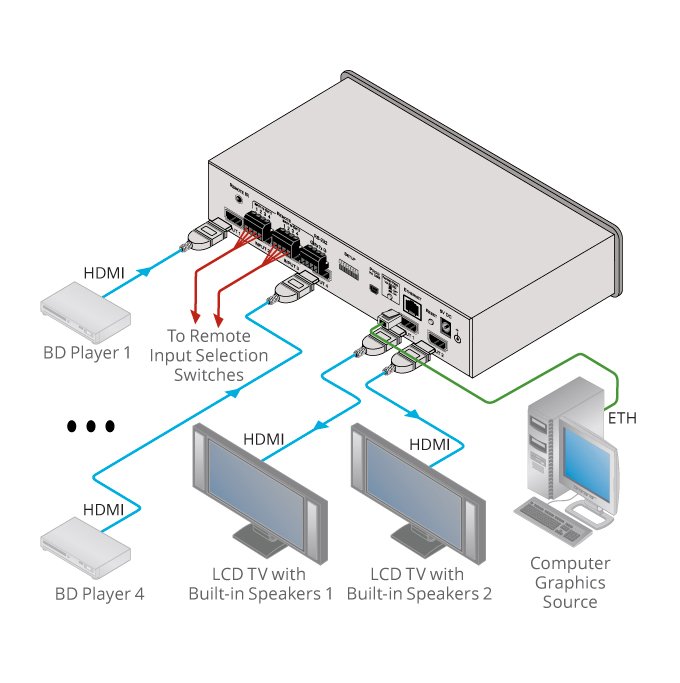

VS−42UHD is a high−quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.
Features
- Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
- HDCP 1.4 Compliant.
- True Video Clock Detection.
- Automatic Switching Modes - Last connected and priority switching.
- HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Programmable Step-in Functionality - When used with compatible step-in devices, such as the SID-X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- Non-Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Static or Dynamic DHCP IP Addressing.
- Embedded Web Pages - Provide remote configuration and operation.
- Lock Button - Prevents tampering with the front panel buttons.
- Kramer Protocol 3000.
- Versatile Control Options - RS-232, Ethernet, infrared remote control.
Brand:
Kramer
Part number:
20-801220190
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1xEthernet on an RJ45 Connector, 1xIR on a 3.5mm Mini Jack, 8 Remote Selection Contact-Closure Switch on 9 Terminal Block Pins, 1xSerial Port on a 3-Pin Terminal Block, 1xProgram Port on a Mini USB
Special Features:
HDCP 1.4 Compliant, True Video Clock Detection, Automatic Switching Modes
Applications:
Conference Rooms, Education, Hospitality
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Resolution:
Up to UXGA, 4Kx2K
Video Bandwidth:
8.91Gbps (2.97Gbps per Graphic Channel)
Baud Rate:
9600bps, 115200bps
Inputs and Ports
Input Port Type:
4xHDMI
Output Port Type:
2xHDMI
Number of Ports:
4x2
Power
Current Rating:
880mA
Dimensions
Length:
16.3cm
Width:
21.46cm
Height:
4.3cm
Weight:
0.9kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
