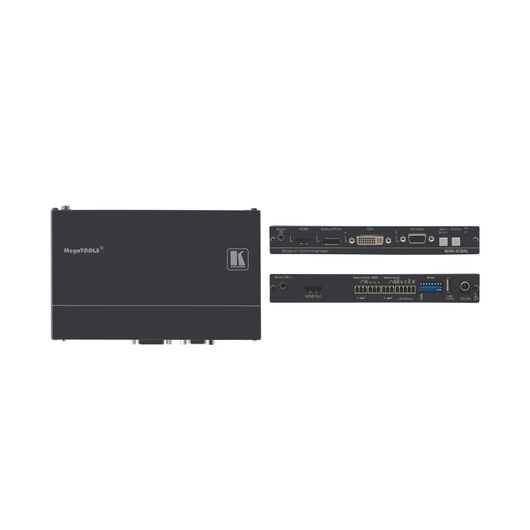

SID-X3N 4-Input Multi-Format Video over HDMI Transmitter & Step-In Commander
Please sign in so that we can notify you about a reply
The SID−X3N is an HDMI transmitter, step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source when connected to the VS−62H.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant. — Works with sources that support HDCP repeater mode.
- HDMI Support — Deep Color, x.v.Color™ and 3D.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Data Equalization and Reclocking.
- Input Signal Detection — Based on video clock presence.
- Automatic Input Selection — Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- Local Balanced Audio De–Embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- Local Step–In Switching — Button & contact closure.
- Supports Programmable Step–In Functionality — Over HEC enabled HDMI cables, when used with compatible switchers such as the VS–62H.
- Power Supply — Requires independent power supply.
Brand:
Kramer
Part number:
20-80238090
Specifications
Product Type:
Black Front Panel
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
Front Panel Button, Remote Step-In Switch, Remote Input Selection Switch
Special Features:
HDTV Compatible, HDCP Compliant
Applications:
Boardrooms, Presentation Rooms
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter
Performance
Video Bandwidth:
6.75Gbps (2.25Gbps per Graphic Channel)
Inputs and Ports
Input Port Type:
1xHDMI on HDMI Connector, 1xDP on Display Port Connector, 1xDVI-D on DVI-I Connector, 1xVGA on 15-Pin HD (F) Connector, 1 Unbalanced Stereo Audio on 3.5mm Mini Jack
Output Port Type:
1xHDMI on an HDMI Connector, 1xUnbalanced Stereo Audioin a 3.5mm Mini Jack
Power
Current Rating:
1.1A
Dimensions
Length:
11.5cm
Width:
18.75cm
Height:
2.5cm
Weight:
0.5kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, UL Listed
