SID-X2N 4-Input Multi-Format Video over HDBaseT Transmitter & Step-IN Commander

Write a review
SID-X2N
Kramer
Log in to see price Add to wish list Add to Project

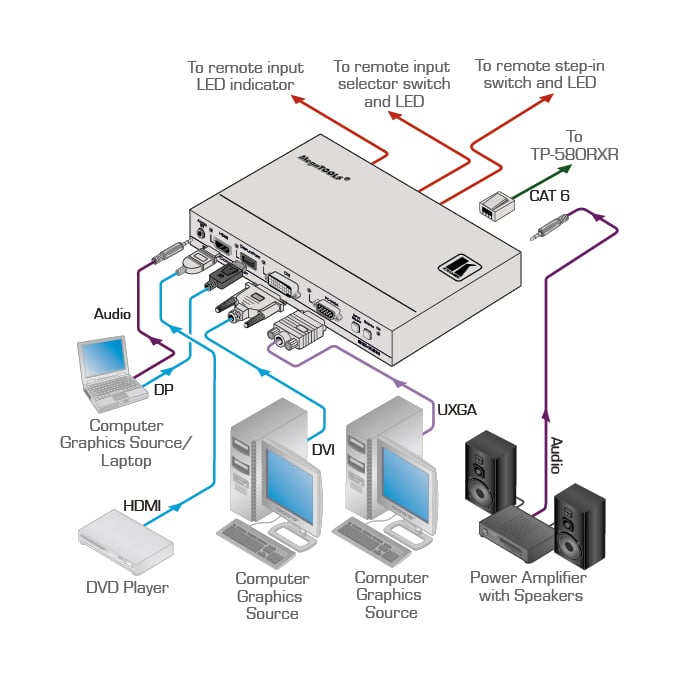

The SID−X2N is an HDBaseT twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.

Features

  • Max. Data Rate — 6.75Gbps (up to 1080p @60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p @60Hz 24bpp) in ultra mode.
  • HDTV Compatible.
  • HDCP Compliant — Works with sources that support HDCP repeater mode.
  • HDMI Support — Deep Color, x.v.Color™ and 3D.
  • EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Data Equalization and Reclocking.
  • Input Signal Detection — Based on video clock presence.
  • Automatic Input Selection — Based on manual selection or last connected input.
  • Automatic Analog Audio Detection and Embedding.
  • Local Balanced Audio De–Embedding.
  • Support for Digital Audio Formats.
  • Lockable EDID.
  • System Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–HDKat6a cables.
  • Local Step–In Switching — Button & contact closure.
  • Power Supply — Requires independent power supply.
Brand:
Kramer
Part number:
20-80236090
Product Type:
Black Front Panel
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
Front Panel Button, Remote Step-In Switch, Remote Input Selection Switch
Special Features:
HDTV Compatible, HDCP Compliant
Applications:
Boardrooms, Presentation Rooms
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter
Performance
Video Bandwidth:
6.75Gbps (up to 1080pixels@60Hz 36bpp) in normal mode, Up to 4.95Gbps (up to1080pixels@60Hz 24bpp) in ultra mode
Inputs and Ports
Input Port Type:
1xHDMI on HDMI Connector, 1xDP on Display Port Connector, 1xDVI-D on DVI-I Connector, 1xVGA on 15-Pin HD (F) Connector, 1 Unbalanced Stereo Audio on 3.5mm Mini Jack
Output Port Type:
1xHDBaseT TP on an RJ45, 1xUnbalanced Stereo Audioin a 3.5mm Mini Jack
Power
Current Rating:
950mA
Dimensions
Length:
11.5cm
Width:
18.75cm
Height:
2.5cm
Weight:
0.5kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, UL Listed

SID-X2N 1 (SID-X2N.pdf, 179 Kb) [Download]
