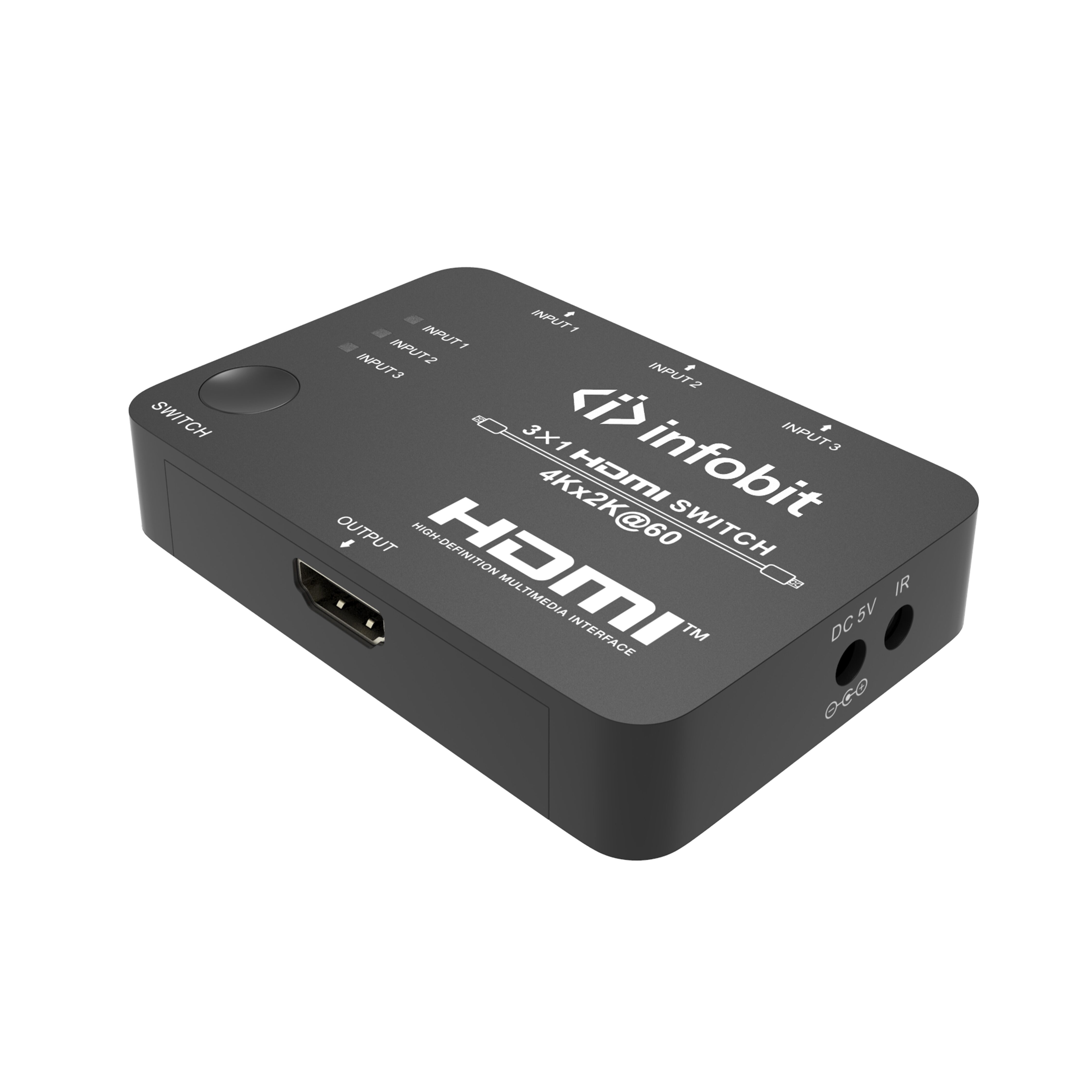

iSwitch S301 4K60 3x1 HDMI Presentation Switcher

The 18Gbps 3 by 1 HDMI Switcher can switch any of 3 HDMI sources to 1 HDMI display. Supported video resolution is up to 4K2K@50/60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats. The product has low power consumption. It can also be controlled by the panel button and remote control

Features
  • iSwitch S301
  • 4K60 3x1 HDMI Presentation Switcher
  • HDCP 2.2/1.x and DVI 1.0 compliant
  • Support 18Gbps video bandwidth
  • HDR, HDR10, Dolby Vision and HLG are supported
  • Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
  • Support 3D video format
  • Low power consumption
  • Support IR remote control and panel button control
  • Compact design for easy and flexible installation
  • Ideal for huddle space, small meeting room, home office, smart home..
Brand:
Infobit
Product Type:
Presentation Switcher
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Special Features:
Low Power Consumption, Support IR Remote Control and Panel Button Control, Compact Design for Easy and Flexible Installation
Power Rating:
1.5W
Applications:
Huddle Space, Small Meeting Room, Home Office, Smart Home
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI 3x1 Switcher, 1xIR Receiver Cable, 1x5V USB Power Cable, 1xRemote Control, 1xUser Manual
Performance
Resolution:
4K2K@60Hz
Video Bandwidth:
18Gbps
Inputs and Ports
Input Port Type:
3×HDMI Type-A (19-pin Female), 1×IR IN (3.5mm Stereo Mini-Jack)
Output Port Type:
1×HDMI Type-A (19-pin Female)
Number of Ports:
5
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
8.7cm
Width:
5.9cm
Height:
1.9cm
Weight:
60g
Other
Voltage Rating:
5V

iSwitch S301 1 (INFOBIT-iSwitch-S301-User-Manual_V1.0.pdf, 863 Kb) [Download]
