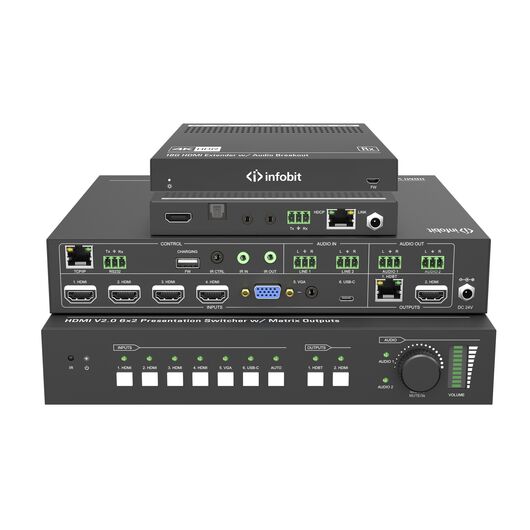

iSwitch 602 4K60 6X2 Presentation Switcher w/ HDMI and HDBaseT outputs

Write a review
iSwitch 602
Infobit
Out of stock
Log in to see price Add to wish list

6x2 multi-format presentation matrix switcher! The matrix switcher simplifies meeting room and presentation space system integration by providing four HDMI inputs, one VGA input, one USB-C input, one HDBT output and one HDMI output. It also provides two audio inputs for audio embedding and two audio outputs for audio de-embedding. The matrix switcher supports resolution up to 4K@60Hz@4:4:4, HDR. The HDBT technology allows HDMI signals to be transmitted up to 70m over a CATx cable while ensuring very high, original image quality. It is designed for using with the receiver iSwitch 602R.The matrix switcher supports auto switching based on 5V or TMDS activity signals sensing. It also allows users to control system functionality via Web GUI, RS232, IR and CEC.

Features
  • iSwitch 602
  • 6x2 18G HDMI presentation switcher with matrix outputs
  • HDMI V2.0 and HDCP 2.2 compliant
  • Video resolution up to 4K@60Hz 4:4:4, HDR
  • Supports auto switching
  • HDMI signals transmission up to 40m at 4K and 70m at 1080p on HDBT output
  • The HDBT output supports 24V PoC for the receiver
  • USB-C input supports resolution up to 4K@60Hz 4:2:0
  • Provides two audio inputs for audio embedding and two audio outputs for audio de-embedding
  • Supports audio output volume control
  • Supports EDID management
  • Supports downscaling on HDBT output and upscaling on HDMI output
  • Controllable via RS232 local and pass-through, IR local and pass-through, TCP/IP, CEC, and front panel
Brand:
Infobit
Product Type:
Presentation Switcher
Specifications
Maximum Operating Temperature:
55°C
Colour:
Black
Control Port Type:
1xTCP/IP, 1xRS232, 1xFirmware, 1xSystem IR, 1xIR IN, 1xIR OUT, 1xRJ-45, 1xUSB Type-A
Special Features:
Auto Switching, Two Audio Input, EDID Management, Downscaling
IR Frequency:
20Hz to 20kHz
Power Rating:
45W
Humidity:
10 to 90%
Minimum Operating Temperature:
-5°C
Includes:
1xiSwitch 602-T 6x2 HDMI 2.0 Matrix Switcher, 1xiSwitch 602-R HDBT receiver, 2xMounting Ears with 6 Screws, 4xPlastic Cushions, 1xIR Remote, 2xIR Receivers, 1xIR Emitter, 1xRS232 Cable (3-pin to DB9), 1xPower Adapter (24V DC 2.71A), 1xUser Manual
Performance
Resolution:
4K@60Hz (4:4:4), HDR, 1920×1200@60Hz, 4K@60Hz (4:2:0)
Video Bandwidth:
18Gbps
Signal-to-Noise Ratio:
>80dB
Total Harmonic Distortion:
<0.1%
Crosstalk Level:
>70dB
Inputs and Ports
Input Port Type:
4xHDMI Type-A Female, 1xVGA 15-pin Female, 1xUSB Type-C
Output Port Type:
1xHDBT, 1xHDMI Type-A Female, 1xRJ-45
Number of Ports:
8
Power
Current Rating:
2.71A
Dimensions
Length:
25cm
Width:
4.4cm
Height:
22cm
Weight:
1.7kg
Other
Voltage Rating:
24V DC (Output), 100 to 260V AC (Input)

iSwitch 602 1 (iSwitch602_datasheet-V1.0.pdf, 640 Kb) [Download]
