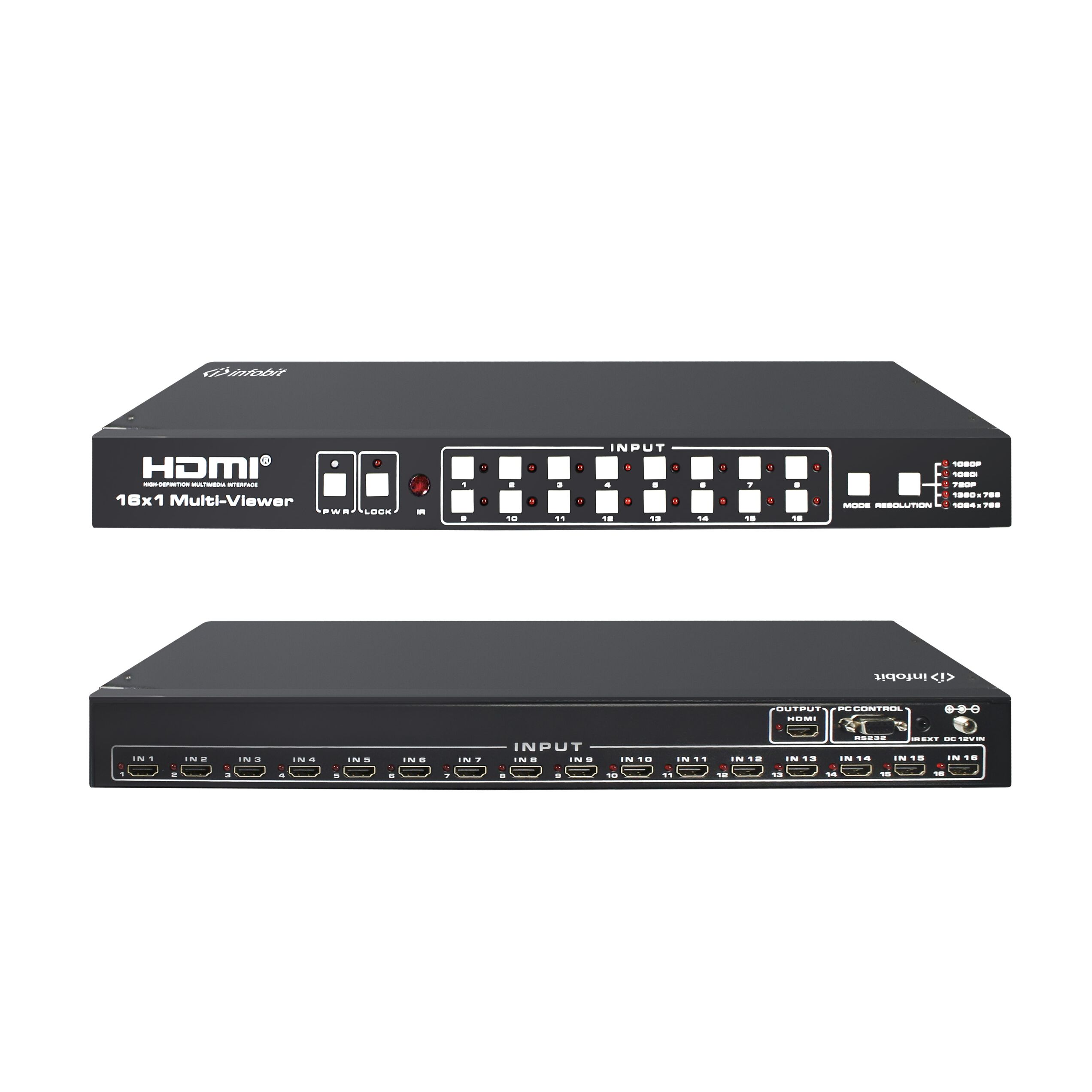

iSwitch 1601 1080 FHD 16x1 HDMI Seamless Switcher with Multi-view
Please sign in so that we can notify you about a reply
16 by 1 Multi-Viewer with Seamless Switcher. It supports sixteen high definition input source display on one screen. As a switcher, it can also seamlessly switch the sixteen HD input freely. The product can be controlled by various ways, through the front panel button control, IR control, RS-232 Control
Features- iSwitch 1601
- 16x1 HDMI Multi-viewer w/Seamless Switching
- Compliant with HDMI 1.3a, HDCP 1.2
- Supports multiple HDMI 16-input and 1-output
- Supports up to 1080p High Definition resolution
- Support 16x1 Multi-viewer and seamless switching
- Support scaler up, scaler down function
- Support multi-output resolution
- Support digital audio format LPCM/AC3/DTS
- Support button, IR Remote, RS232, etc various controlled ways
Brand:
Infobit
Product Type:
Matrix Switcher
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Special Features:
Support Multi-Output Resolution, Digital Audio Format
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI 16x1 Multi-Viewer, 1xPower Adpater, 1xRS-232 Cable, 1xOperation Manual, 2xMounting Ears
Performance
Resolution:
480i@60Hz, 480pixel@60Hz, 576i@50Hz, 576pixel@50Hz, 720pixel@50/60Hz, 1080i@50/60Hz, 1080pixel@24/30/50/60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1920x1080@60Hz
Video Bandwidth:
2.25Gbps
Inputs and Ports
Input Port Type:
16xHDMI Type-A Female, 1xRS-232
Output Port Type:
1x HDMI Type-A
Number of Ports:
18
Power
Current Rating:
5A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
44cm
Width:
20cm
Height:
4.5cm
Weight:
1.8kg
Other
Voltage Rating:
12V DC
