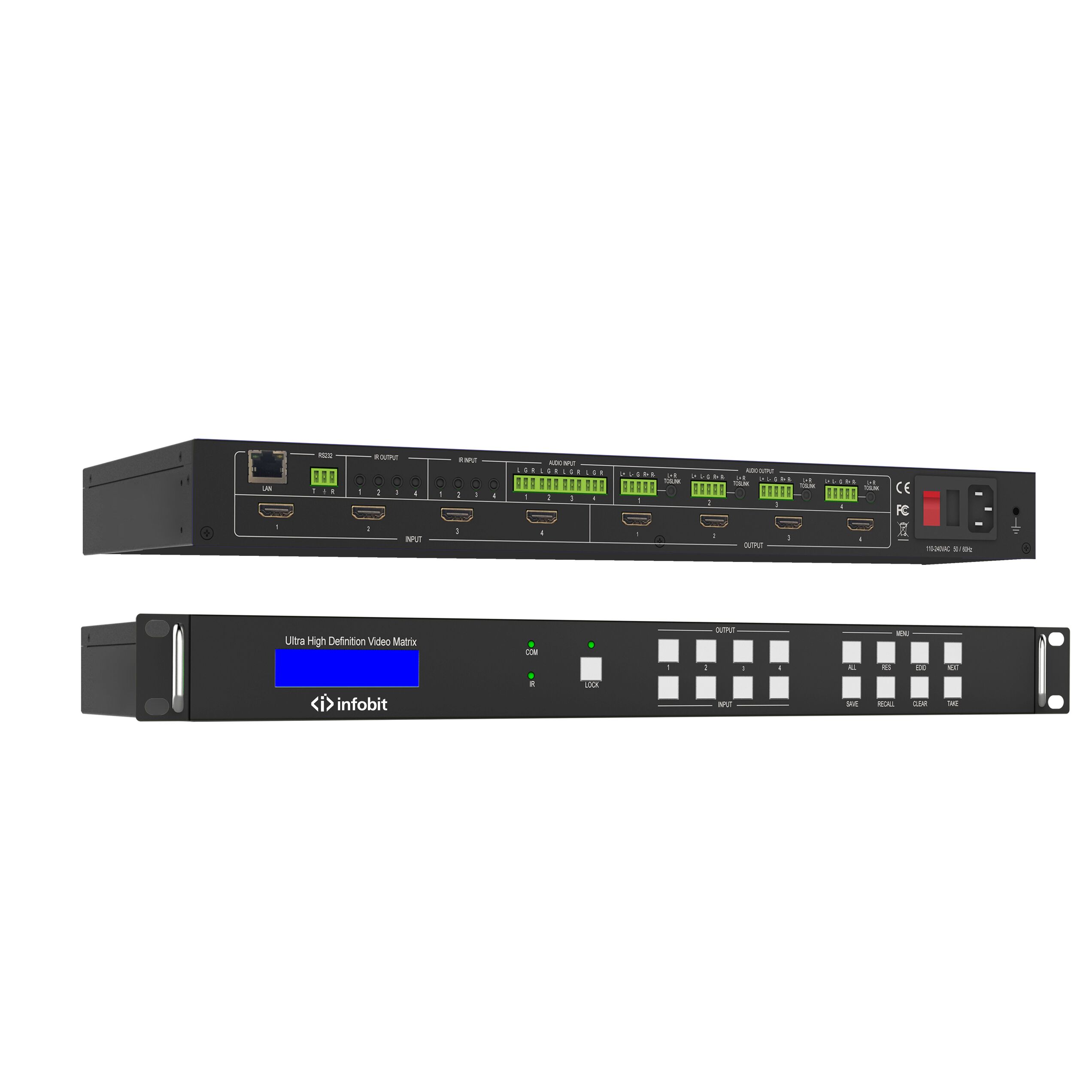

iMatrix H44HAW Matrix Switcher, 4x4 4K60 HDMI, Seamless UHD

Write a review
iMatrix H44HAW
Infobit
Log in to see price Add to wish list Add to Project

The 18Gbps 4x4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix routing follows the video routing. Audio extract and insert are supported. The product supports CEC management and strong video wall processing.

Features
  • IMatrix H44HAW
  • 4x4 18Gbps HDMI 4K60 Seamless Matrix Switcher with Videowall
  • HDMI 2.0 and HDCP 2.2 compliant
  • Support 18 Gbps video bandwidth
  • Support video resolution up to 4K60 4:4:4
  • Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Support seamless switching, video wall function
  • Support CEC management
  • Support audio matrix and IR matrix function
  • Support external L/R audio insert on HDMI stream
  • Support EDID management
  • Support front panel, RS232, TCP/IP (LAN 10M/100M) control
Brand:
Infobit
Product Type:
Matrix Switcher
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
4xIR IN (3.5mm Stereo Mini-Jack), 4xIR OUT (3.5mm Stereo Mini-Jack), 1xTCP/IP (RJ45), 1xRS-232 (D-Sub 9)
Special Features:
Support Seamless Switching, Video Wall Function
Power Rating:
60W
Applications:
Broadcast, Education, Conference, Home Theater, Control Room, Digital Signage
Humidity:
10 to 50%
Minimum Operating Temperature:
0°C
Includes:
1x4K60 4x4 Seamless UHD Matrix, 1xAC Power Cord, 1xMatrix IR Remote, 4xIR Receiver cable (1.5 m), 4xIR Blaster cable (1.5 m), 1x3-pin Phoenix Connector, 1×CAT6 Cable, 1×USB to RS232 Cable, 1×User Manual
Performance
Resolution:
4K@60Hz (4:4:4)
Video Bandwidth:
18Gbps
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
4 xHDMI Type-A, 4xCoaxial Audio (3.5mm Stereo Mini-Jack)
Output Port Type:
4xHDMI Type-A, 4xCoaxial Audio (3.5mm Stereo Mini-Jack), 4xBalanced Analog Audio (5-pin Phoenix Connector)
Number of Ports:
8
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
43cm
Width:
22cm
Height:
4.4cm
Weight:
5kg
Other
Voltage Rating:
100 TO 240V AC
Warranty:
3 years

iMatrix H44HAW 1 (iMatrix-H44HAW-User-Manual_V2.1.pdf, 21,448 Kb) [Download]
