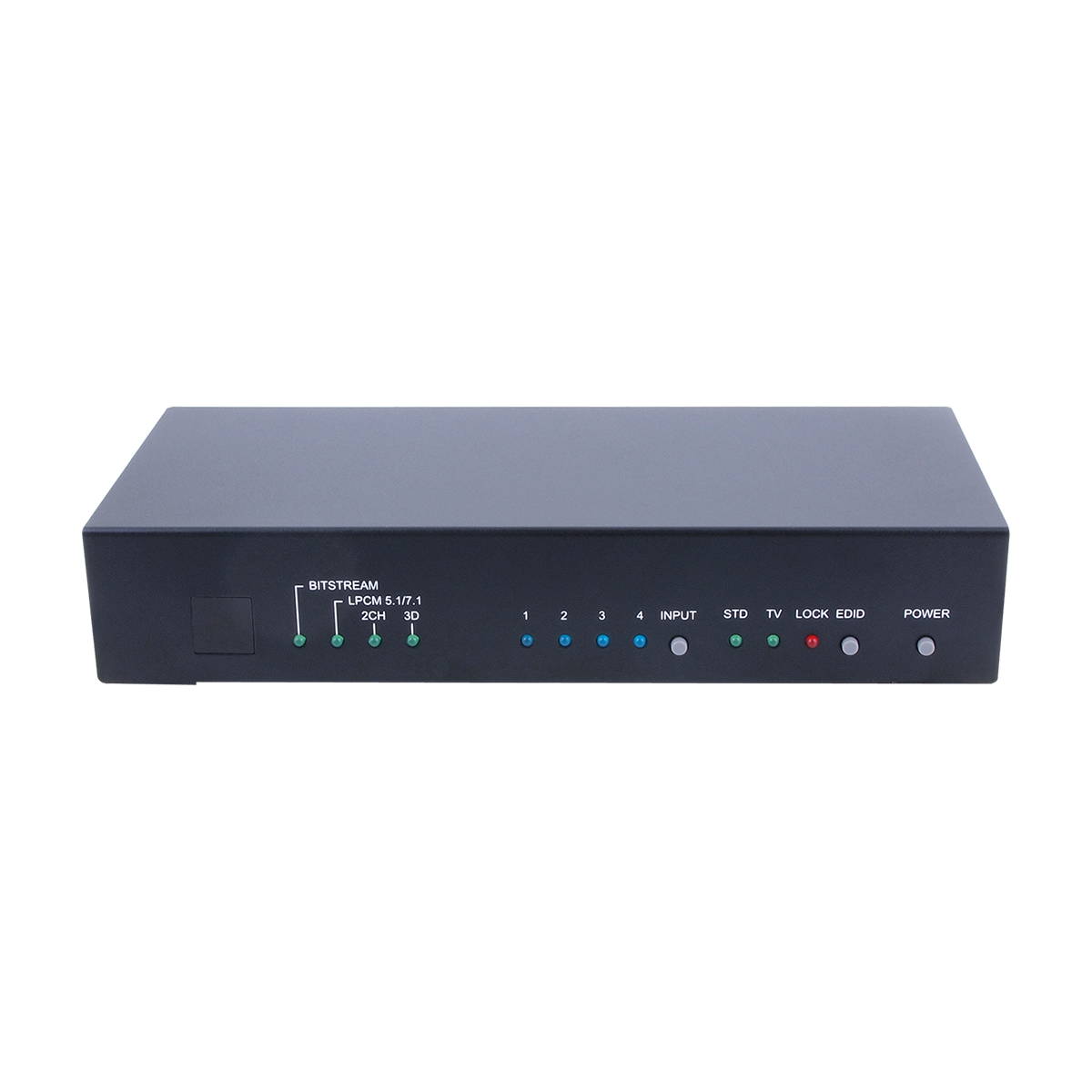

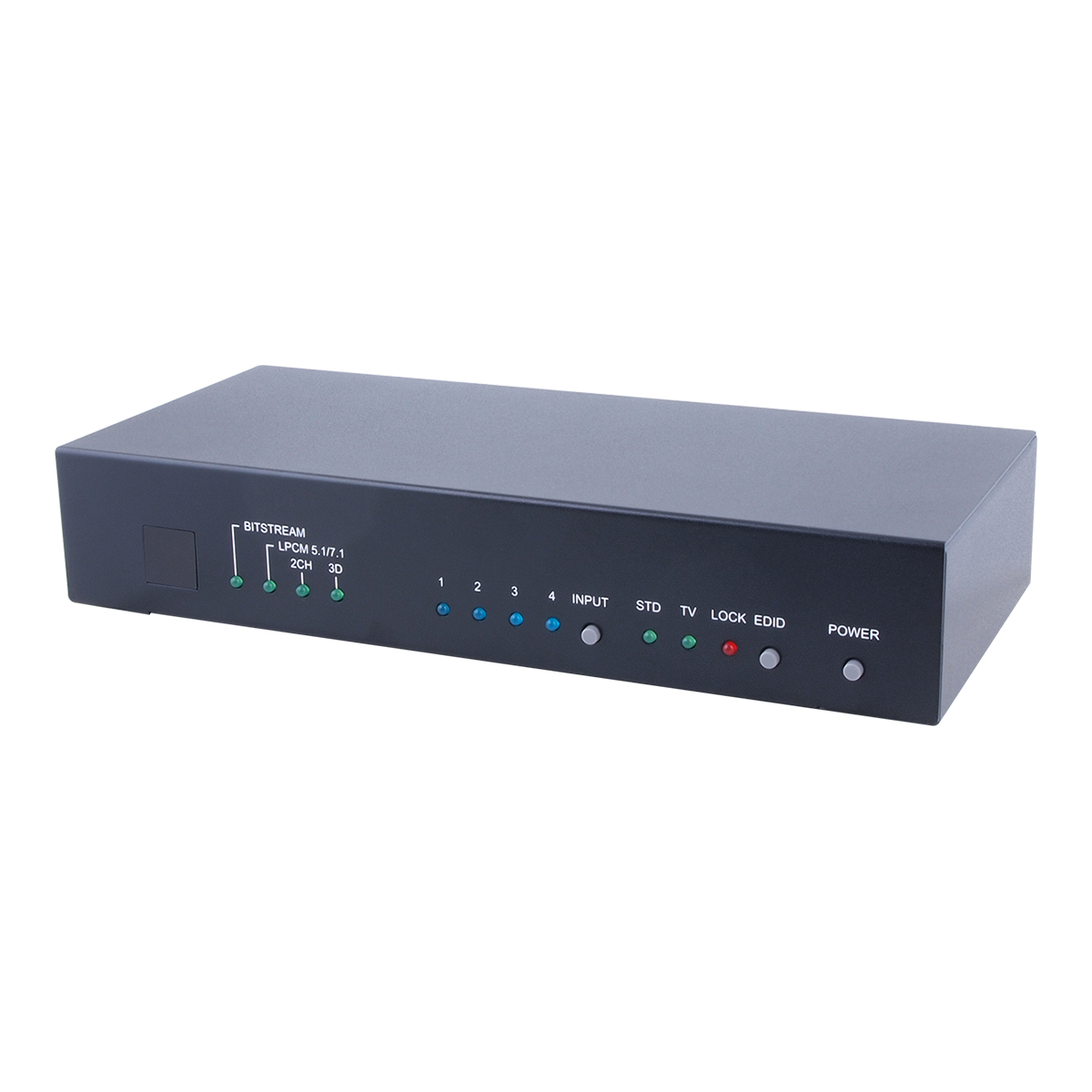

CPRO-3D42S 4 by 2 HDMI Switcher with HEAC
Please sign in so that we can notify you about a reply
This is a high performance HDMI Switcher with four HDMI inputs & two outputs HDMI Switcher, the output ports support Audio Return Channel (ARC) from a compaitble ARC TV and HDMI Ethernet Channel (HEC) following the HDMI specification. The HDMI Switcher provides an S/PDIF link from the HDMI signal and output through the ARC port to an AVR amplifier to get audio from the sink. The HEC feature adds a network connection to the HDMI link 100 Mbps Ethernet connection. Using an HDMI with HEAC cable allows for the convenient integration of internet capable HEAC Televisions into the end user’s home network system.
Features- Two output ports supporting Ethernet Channel (HEC) and Audio Return
- Channel (ARC) following the HDMI specification
- Deep Color support 36/30/24-bit
- Supports CEC bypass on HDMI OUT 1
Brand:
Cypress Technology
Product Type:
4 by 2 HDMI Switcher with HEAC
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
RS-232
Special Features:
EDID Options Include Standard, TV or Lock EDID Feature
Power Rating:
4.2W
Chassis Material:
Metal
Applications:
Simultaneously display a HDMI source on 2 Tvs/displays, Connect internet capable devices through HEC to Network Routers/ Modems, Connect Network Attached Media Streaming Devices to Compatible HEAC TV, Showroom Displays, Educational Demonstrations, Commerc
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5 V/2.6 A DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480i to 1080Pixel
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
4×HDMI
Output Port Type:

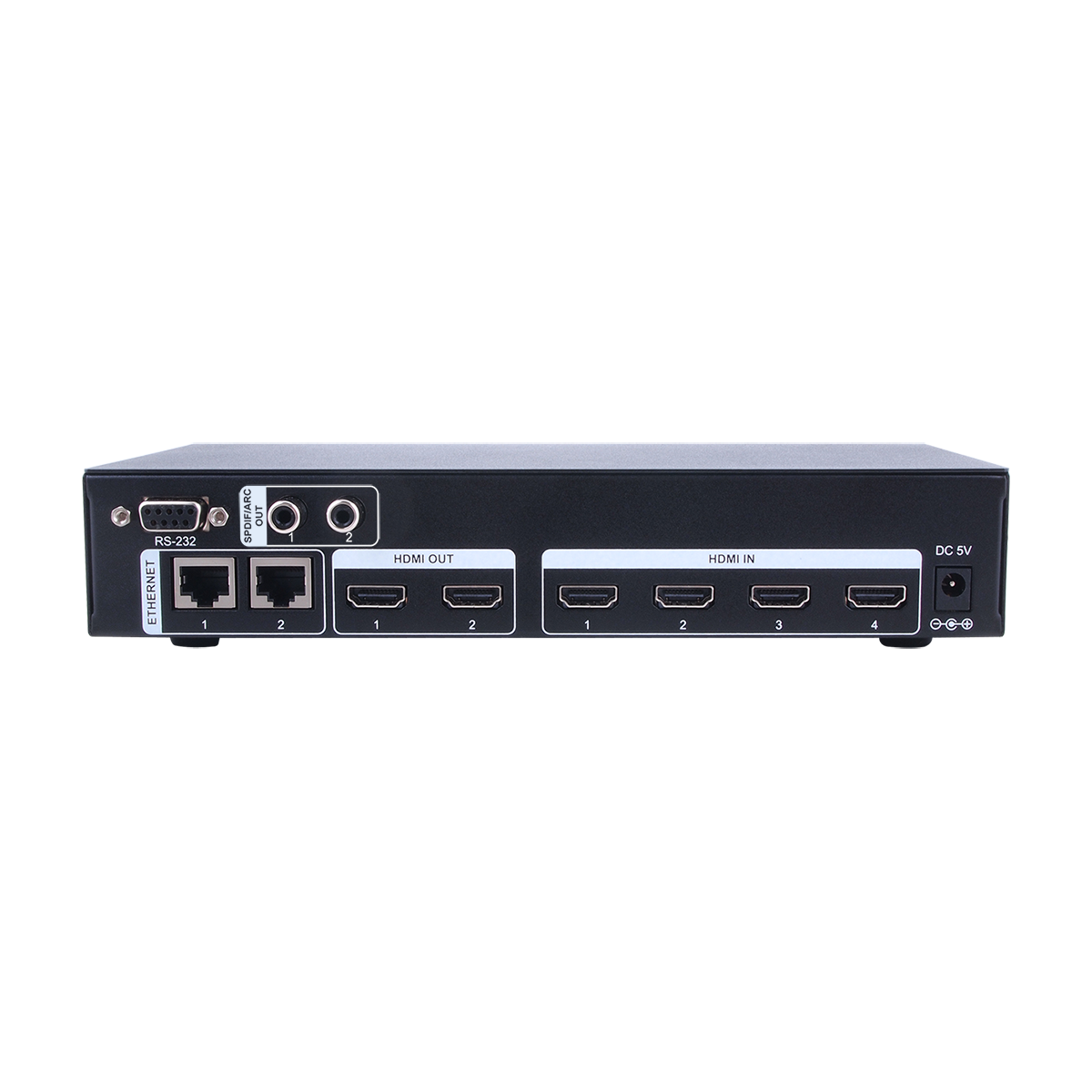

2×HDMI, 2 × Ethernet, 2 × ARC
Number of Ports:
4x2
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
11.3cm
Width:
24cm
Height:
4.9cm
Weight:
810g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
