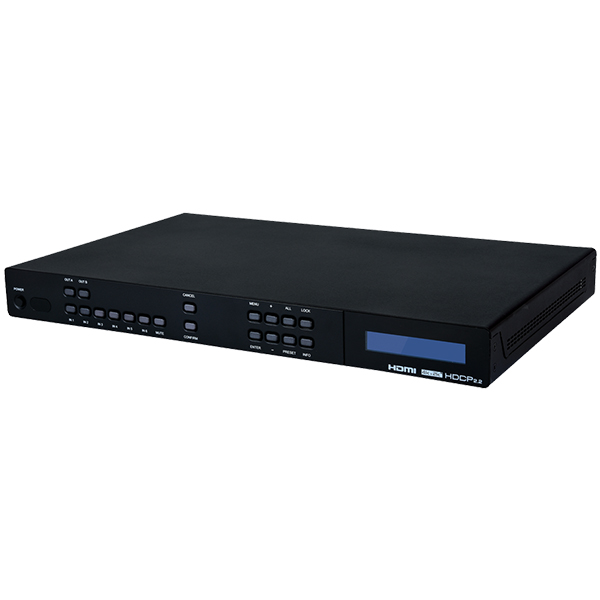

CPLUS-V6H2HP UHD+ 6x2 HDMI Matrix with Audio De-Embedding
Please sign in so that we can notify you about a reply

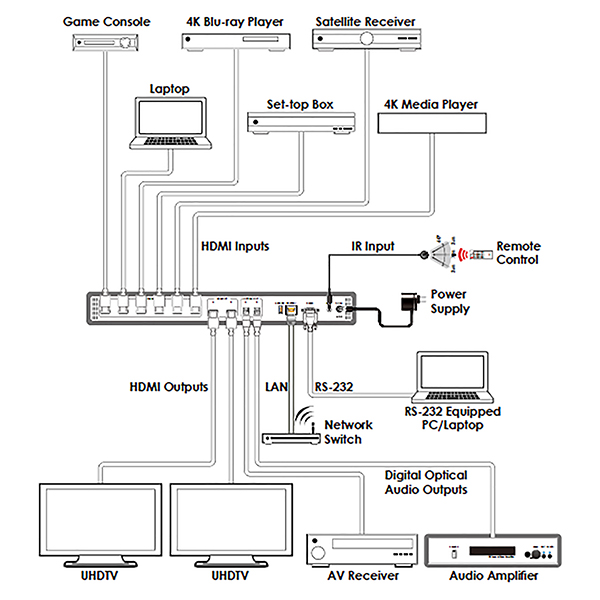

This 4K UHD+ 6 by 2 Matrix provides the ability to connect up to six 4K UHD HDMI sources to up to two 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color (up to 1080p@60Hz), HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between six built in default EDIDs, or an EDID copied from a connected sink device, this matrix can solve many interconnectivity problems. Added flexibility comes from the ability to extract audio from each HDMI output’s source and output it as optical digital audio (LPCM 2.0 and standard Bitstream only). Six fully configurable presets are also provided to simplify the routing process. This unit provides an intuitive set of front panel controls with associated LCD, as well as RS-232, Telnet, WebGUI, and IR remote control options.
Features
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Display any of 6 high-definition sources on up to 2 HDTV displays simultaneously
- Optical audio extraction paired with each HDMI output (LPCM 2.0 or Bitstream only)
- Supports 6 internal EDIDs or 2 external EDIDs copied from connected devices

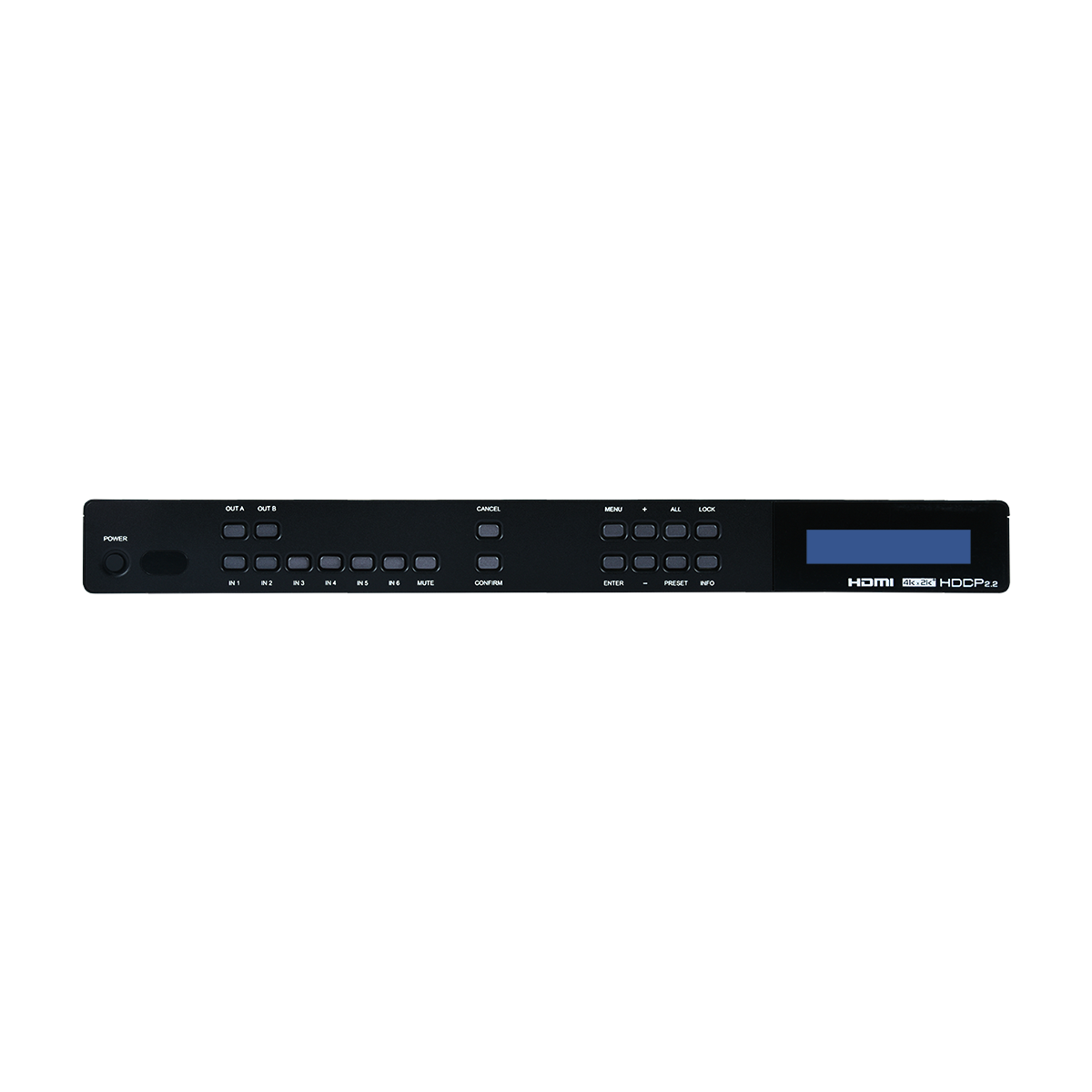

- Controllable via front panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote
Brand:
Cypress Technology
Product Type:
HDMI Matrix with Audio
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1xIR Extender (3.5mm), 1xRS-232 (9-Pin D-sub), 1xIP Control (RJ45)
Special Features:
Controllable via Front Panel Button with LCD, WebGUI, Telnet, RS-232, and IR Remote
IR Frequency:
30 to 50kHz
Power Rating:
12.65W
Chassis Material:
Steel
Applications:
Entertainment Rooms and Home Theatres, Lecture Rooms, Showrooms & Demo Rooms, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4K UHD+ 6 by 2 HDMI Matrix, 1xRemote Control (CR-175), 1xIR Extender Cable, 1x5V/3A DC Power Adaptor, 1xRack Mount Ears (Set of 2), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
18Gbps
Baud Rate:
115200bps

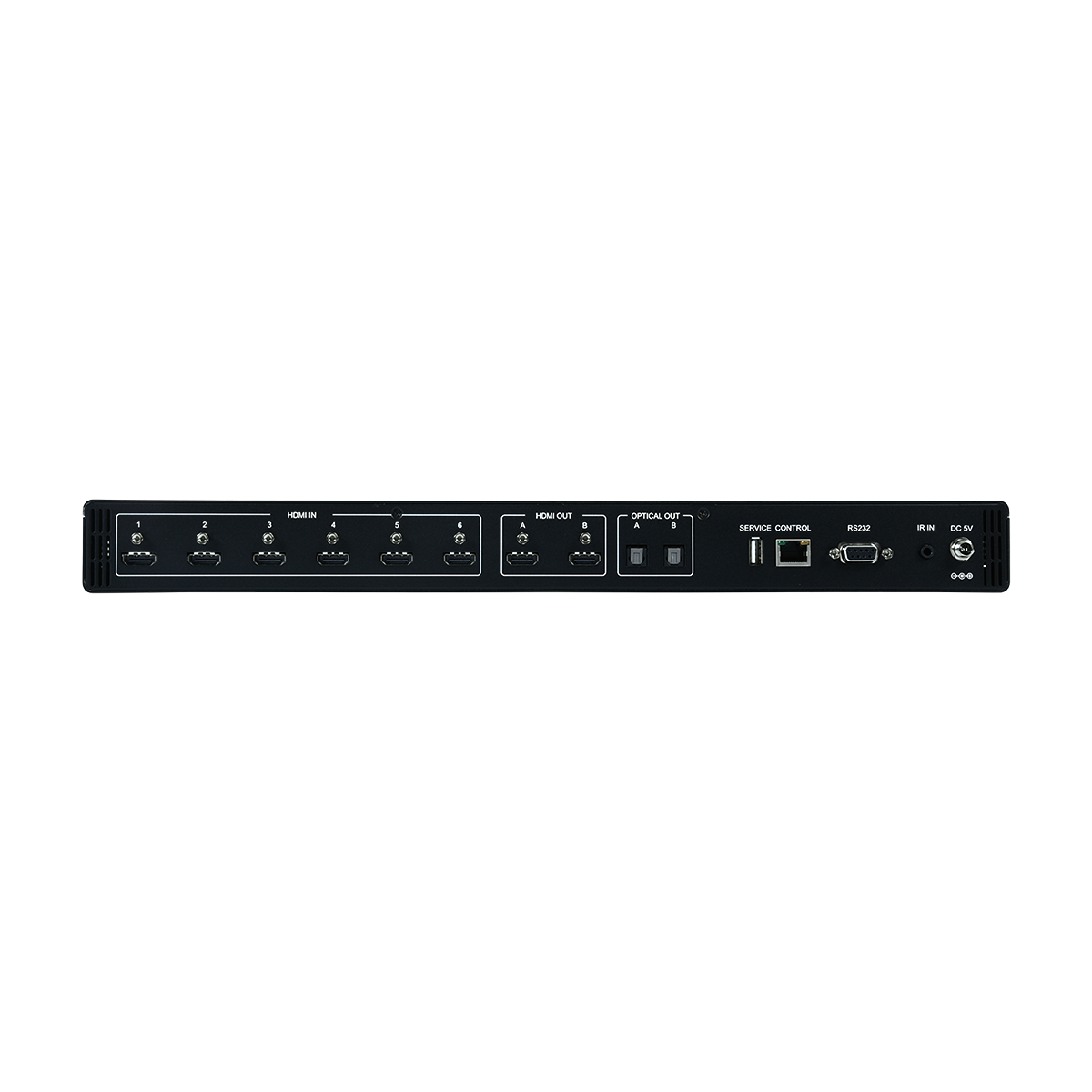

Inputs and Ports
Input Port Type:
6xHDMI
Output Port Type:
2xHDMI, 2xTOSLINK (S/PDIF Audio)
Number of Ports:
6x2
Power
Current Rating:
3A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Length:
27.6cm
Width:
48.2cm
Height:
5.2cm
Weight:
2840g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
