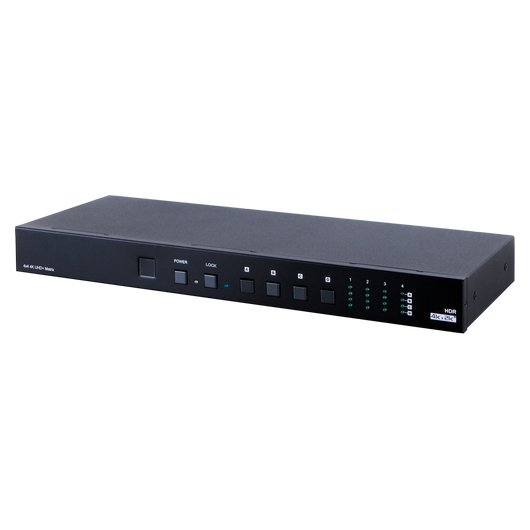

CPLUS-V4H4H 4K HDR 4x4 HDMI Matrix
Please sign in so that we can notify you about a reply
This 4x4 4K UHD Matrix provides a high level of audio and video performance with support for resolutions up to 4K@6Hz (YUV 4:4:4, 8-bit), HDR (High Dynamic Range), and pass-through support of digital audio formats including LPCM 7.1 (with sampling rates up to 192kHz), bitstream, and HD bitstream. The 4 HDMI inputs and 4 HDMI outputs support fully matrixed switching. A sophisticated WebGUI interface supports storing and recalling up to four routing presets, making remote control and configuration of the unit a breeze. Built in EDID management support allows the user select from multiple built in EDIDs as well as to upload custom EDID files and download the EDID from connected displays. Control is provided via front panel buttons, IR remote, WebGUI, RS-232, and telnet.
Features
- HDMI inputs and outputs with 18Gbps (6MHz) 4K UHD support
- DVI 1. compliant with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 384x216@6 Hz (YUV 4:4:4, 8-bit) & 496x216@6 Hz (YUV 4:4:4, 8-bit)
- Supports 48-bit Deep Colour up to 18p6
- Supports 3D signal bypass
- Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over HDMI
- Provides powerful EDID management tools with 4 slots for user created EDIDs, and EDID bypass support
- Supports storing and recall of up to four routing presets

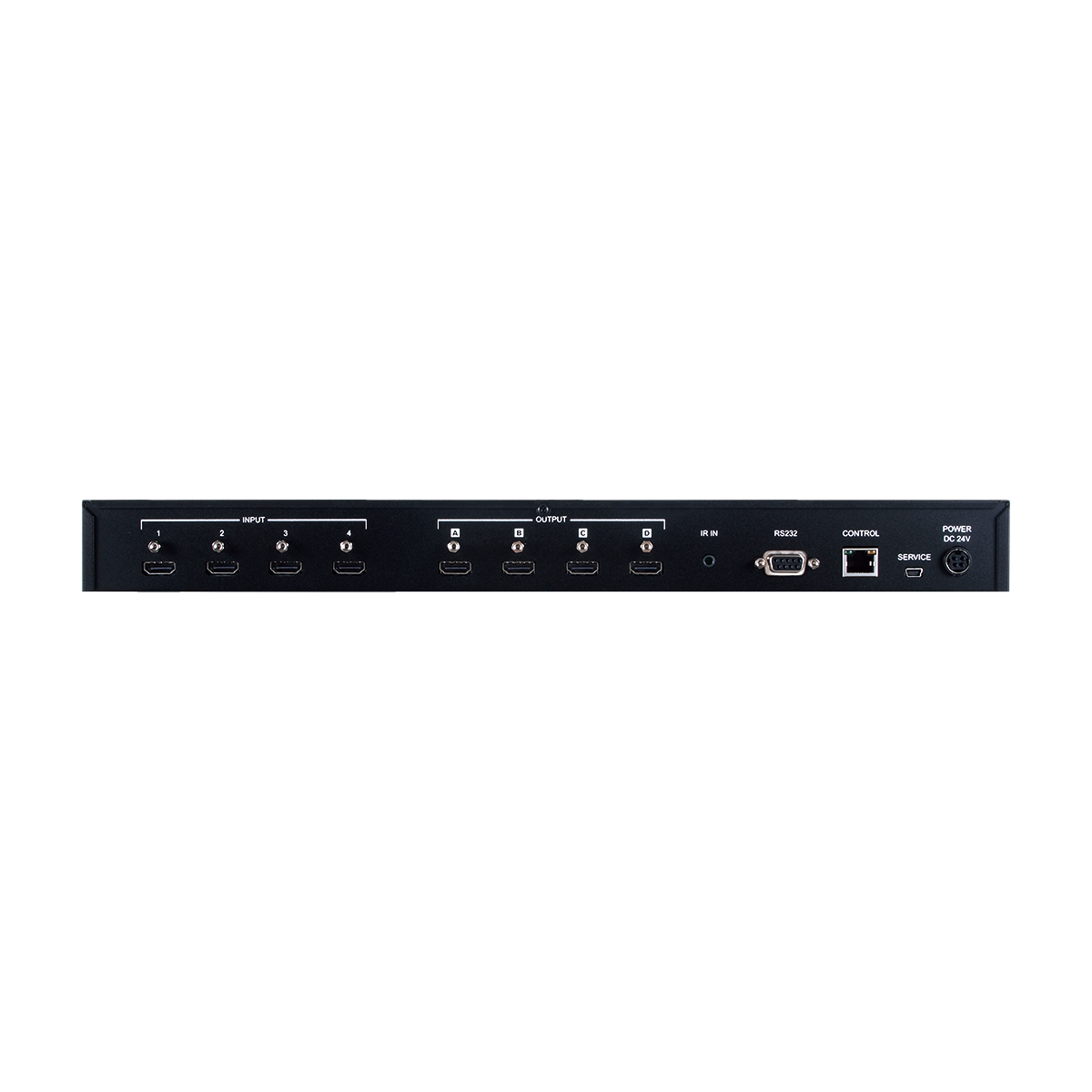

- Controllable via front-panel buttons, RS-232, Telnet, WebGUI, and IR remote
