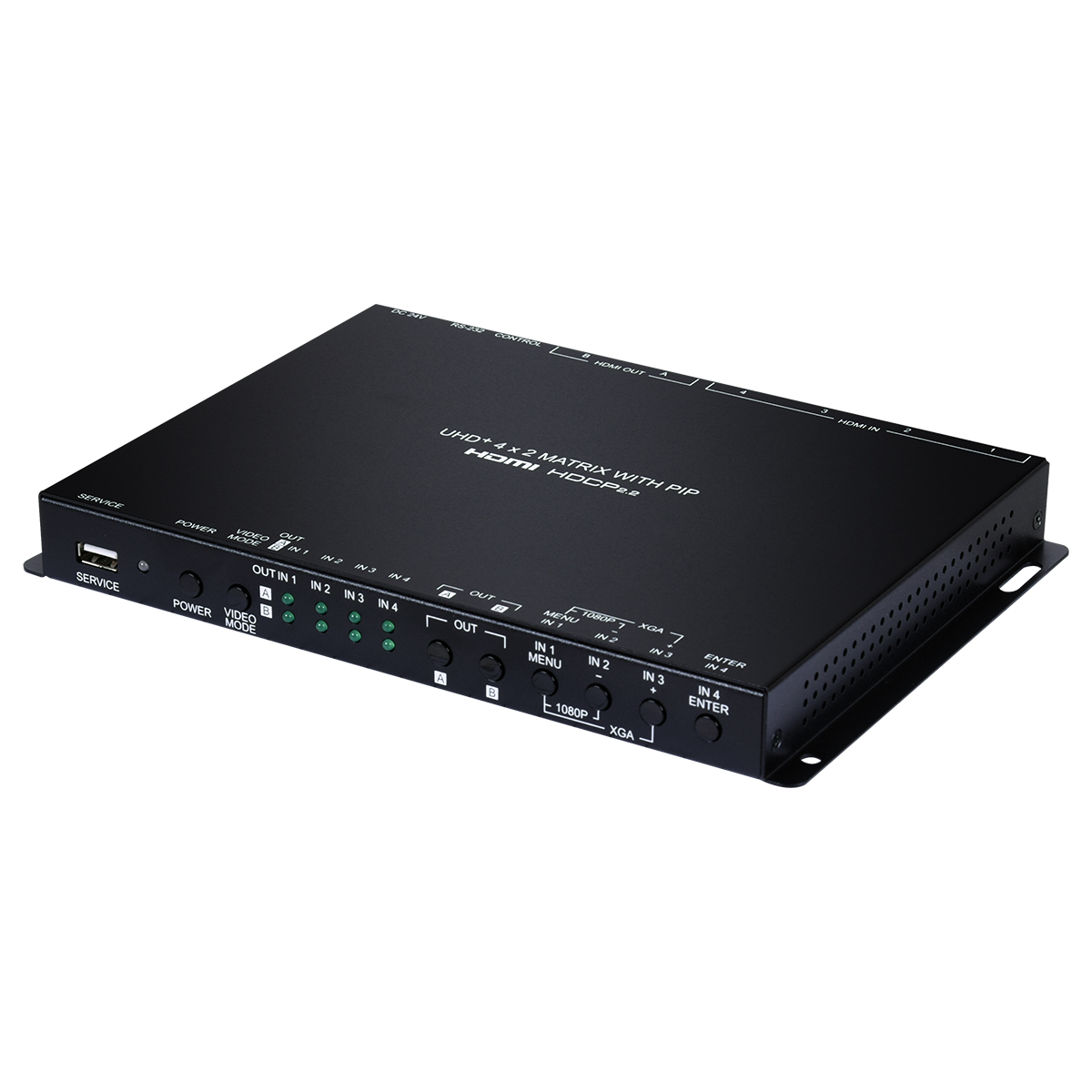

CPLUS-V4H2HPIP UHD+ 4 x 2 HDMI Matrix with PiP
Please sign in so that we can notify you about a reply
This 4 by 2 Matrix is a high performance HDMI switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz and LPCM audio up to 7.1 channels and 192kHz are supported on both input and.
Features
- HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
- Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode.
- Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- Each window can have a border with a selectable color
- EDID management
- Uploadable and freely positioned graphic logo support
- Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI

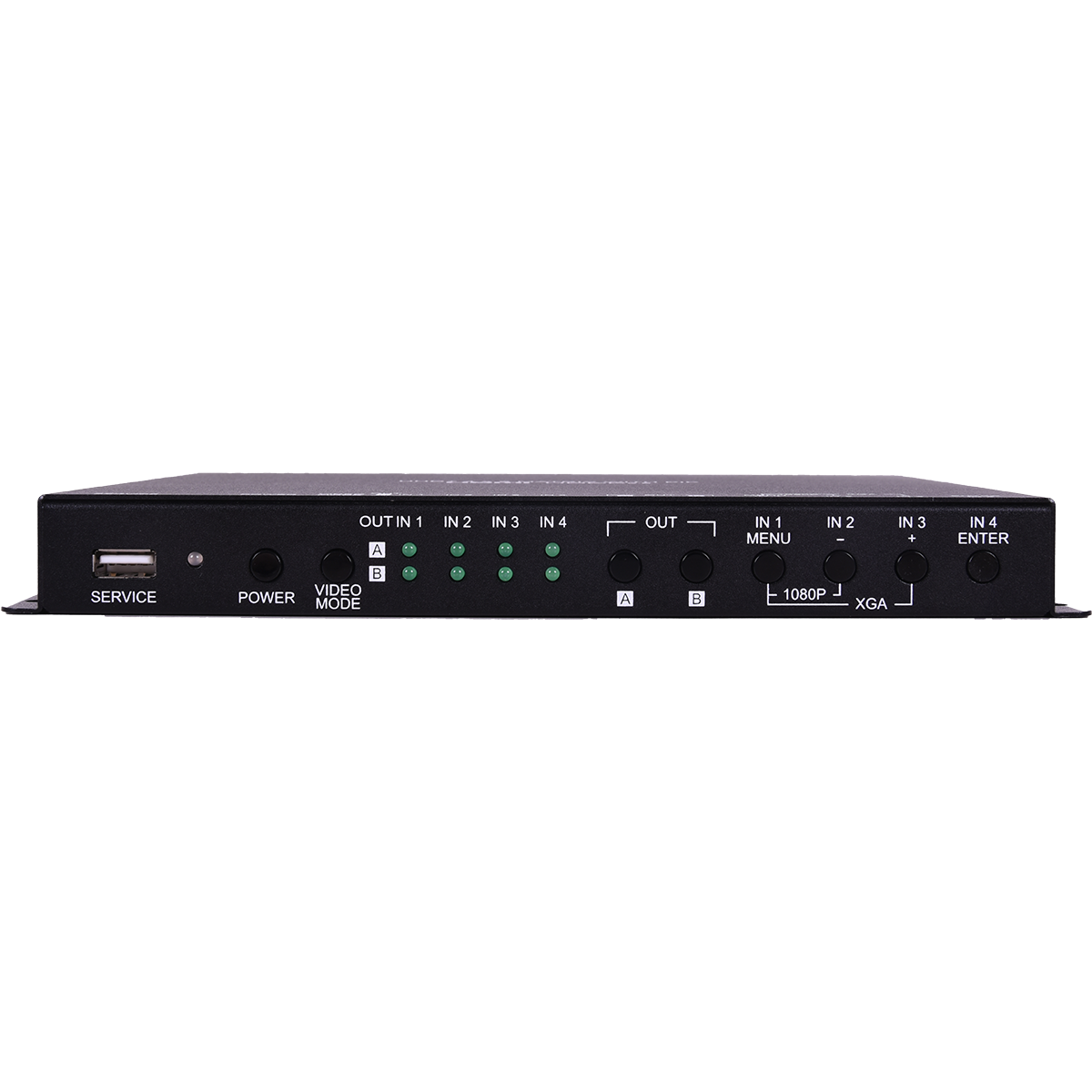

- Controllable via front panel buttons, WebGUI, Telnet, RS-232
Brand:
Cypress Technology
Product Type:
HDMI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1xRS-232 (3.5mm), 1xControl (RJ45)
Special Features:
EDID Management, Controllable via Front Panel Button, WebGUI, Telnet, RS-232
Power Rating:
15.29W
Chassis Material:
Steel
Applications:
Entertainment Rooms and Home Theatres, Show Room & Demo Room, Lecture Room & Hall Presentation, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xUHD+ 4x2 HDMI Matrix with PiP, 1x24V/2.7A DC Power Adapter, 1xRackmount Ears (Set of 2), 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
18Gbps
Baud Rate:
19200bps

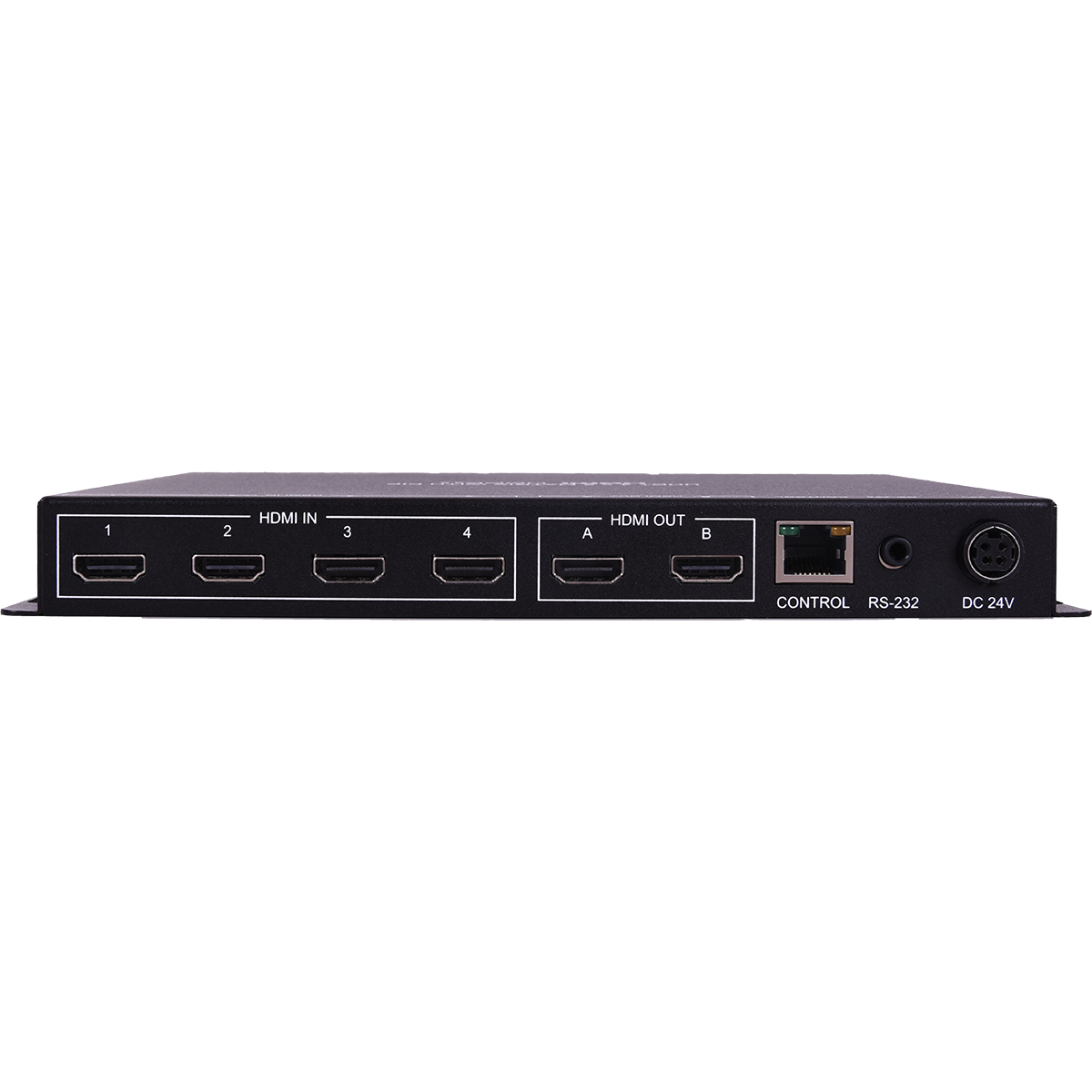

Inputs and Ports
Input Port Type:
4xHDMI Type A
Output Port Type:
2xHDMI-Type A
Number of Ports:
4x2
Power
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
16.1cm
Width:
23.15cm
Height:
2.5cm
Weight:
968g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
CE/FCC/UL Certified
