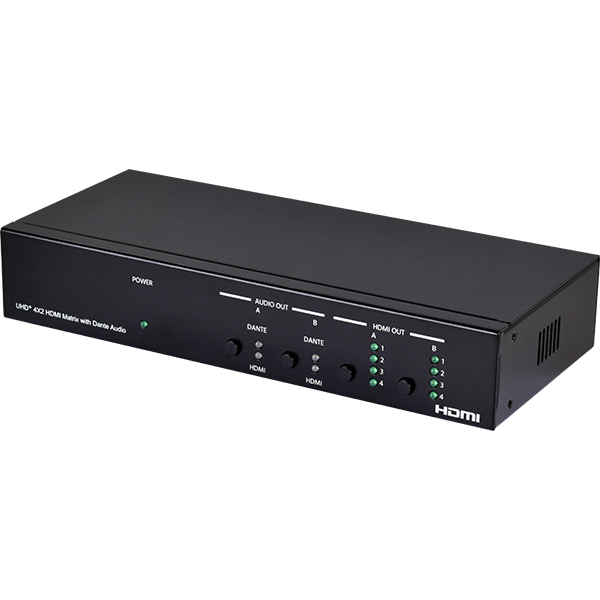

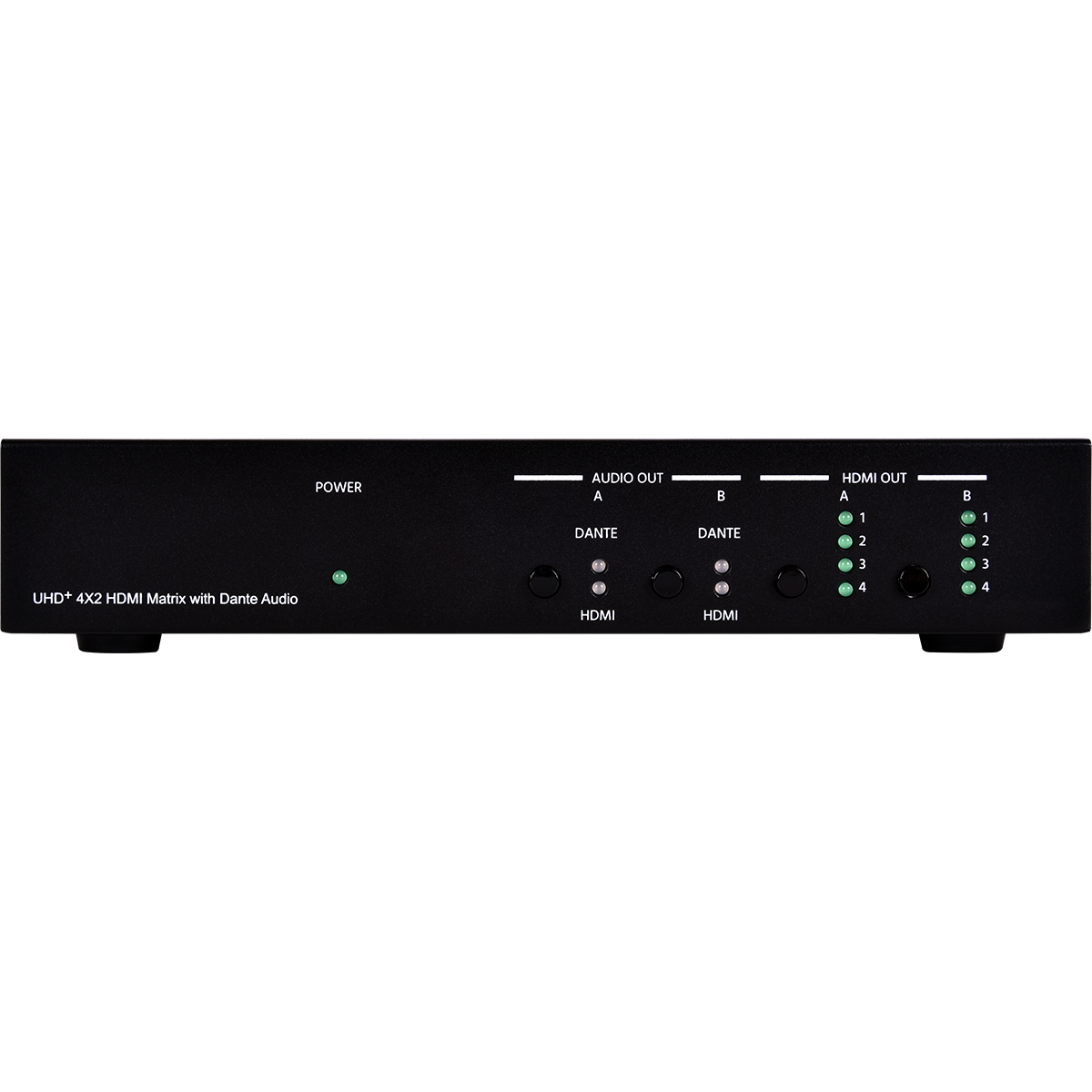

CPLUS-V4H2HP-DT UHD+ 4x2 HDMI Matrix with Dante Audio

Write a review
CPLUS-V4H2HP-DT
Cypress Technology
Out of stock
Log in to see price Add to wish list

Dante® (digital audio network through Ethernet) is a powerful technology that allows many audio channels to be sent and received through Ethernet. CPLUSV4H2HP-DT integrates Dante® technology and 4X2 matrix. It allows the user to route four 18Gbps HDMI input signals to any of two 18Gbps HDMI and Dante digital audio outputs. Dante® digital audio output enables audio transport of up to two stereo audio signals over a network using standard Internet protocols. It also supports AES67 and Audinate Dante® Controller. Ethernet is used for remote control while a front panel with buttons optimized for use in challenging environments, allows full local control of all features. The integration of Dante® audio out facilitates system expansion when paired with many of Cypress’s Dante-enabled audio processing products.

Features

  • Enabled HDMI de-embedded/embedded designed to bridge 2-channel PCM HDMI audio to/from a Dante audio network
  • Balance Audio out can be switch between HDMI De-embedded audio or Dante® -In source
  • Dante audio networking utilizes standard IP networks to transmit high-quality, uncompressed audio with near-zero latency
  • Non-compress audio performance
  • Audio output supports 48kHz Sampling Rate
  • Supports Dante / AES67 inputs and outputs
  • Sample-accurate time alignment between networked devices
  • Real-time latency statistics, Clock status statistics and signal presence exposed to network
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
2xRS-232 (4-Pin Terminal Block), 1xLAN (RJ45)
Special Features:
Non-Compress Audio PerformanCE, Sample-Accurate Time Alignment Between Networked Devices
Power Rating:
11.68W
Chassis Material:
Steel
Applications:
Home Theatres, Classroom, Lecture Halls
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xUHD+ 4x2 HDMI Matrix with Dante Audio, 1x5V/2.6A DC Power Adapter, 2x5-Pin Terminal Block, 1x3-Pin Terminal Block, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
18Gbps
Signal-to-Noise Ratio:
>110dB@0dBFS
Baud Rate:
19200bps
Crosstalk Level:
<-88dB@10kHz

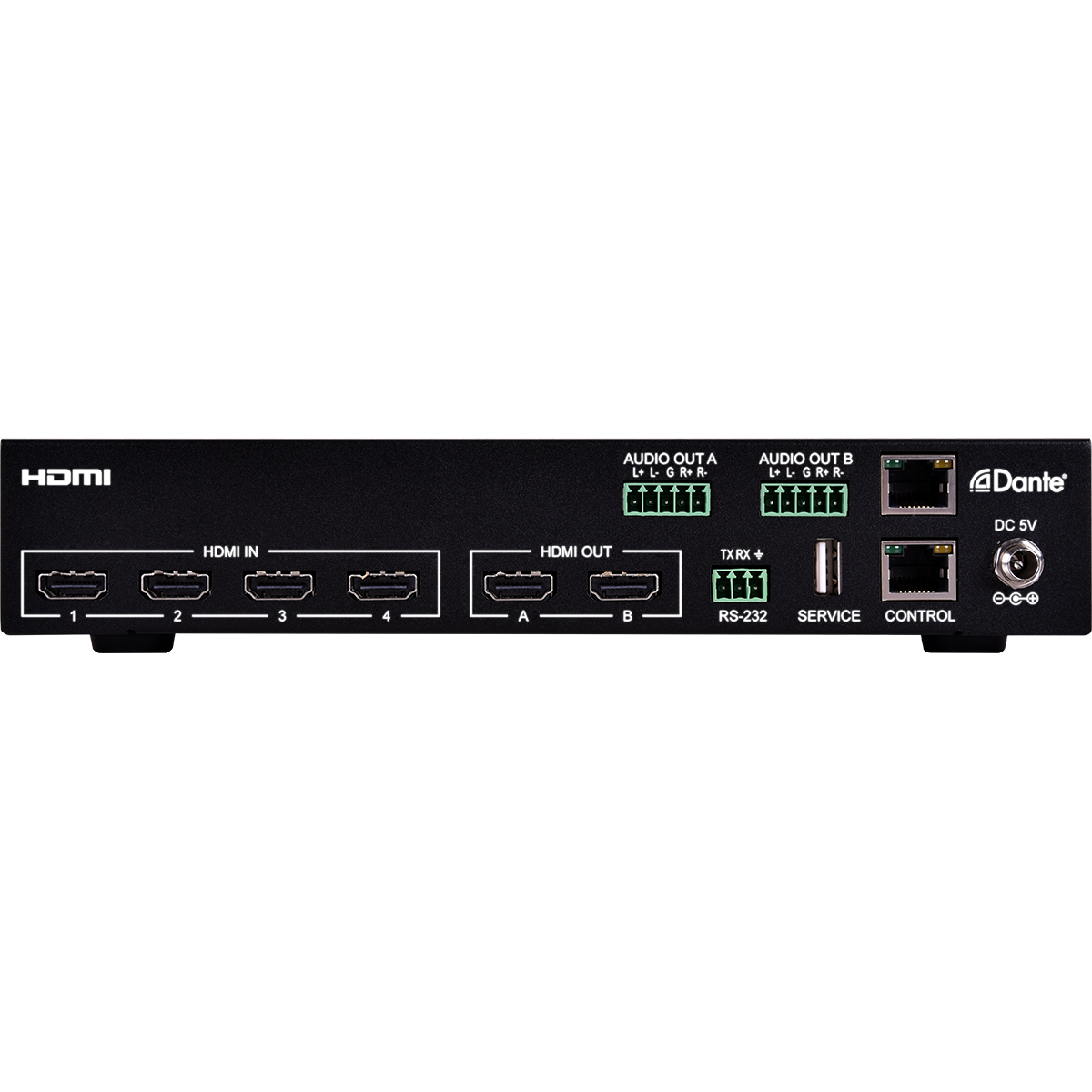

Inputs and Ports
Input Port Type:
4xHDMI Type A
Output Port Type:
2xHDMI-Type A, 2xStereo Analog Out (5-Pin Terminal Block)
Number of Ports:
4x2
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
11.2cm
Width:
24cm
Height:
4.8cm
Weight:
807g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
CE/FCC/UL Certified
