CPLUS-V32USBC UHD+ 3x2 Matrix Switcher with USB Ethernet Hub
Please sign in so that we can notify you about a reply

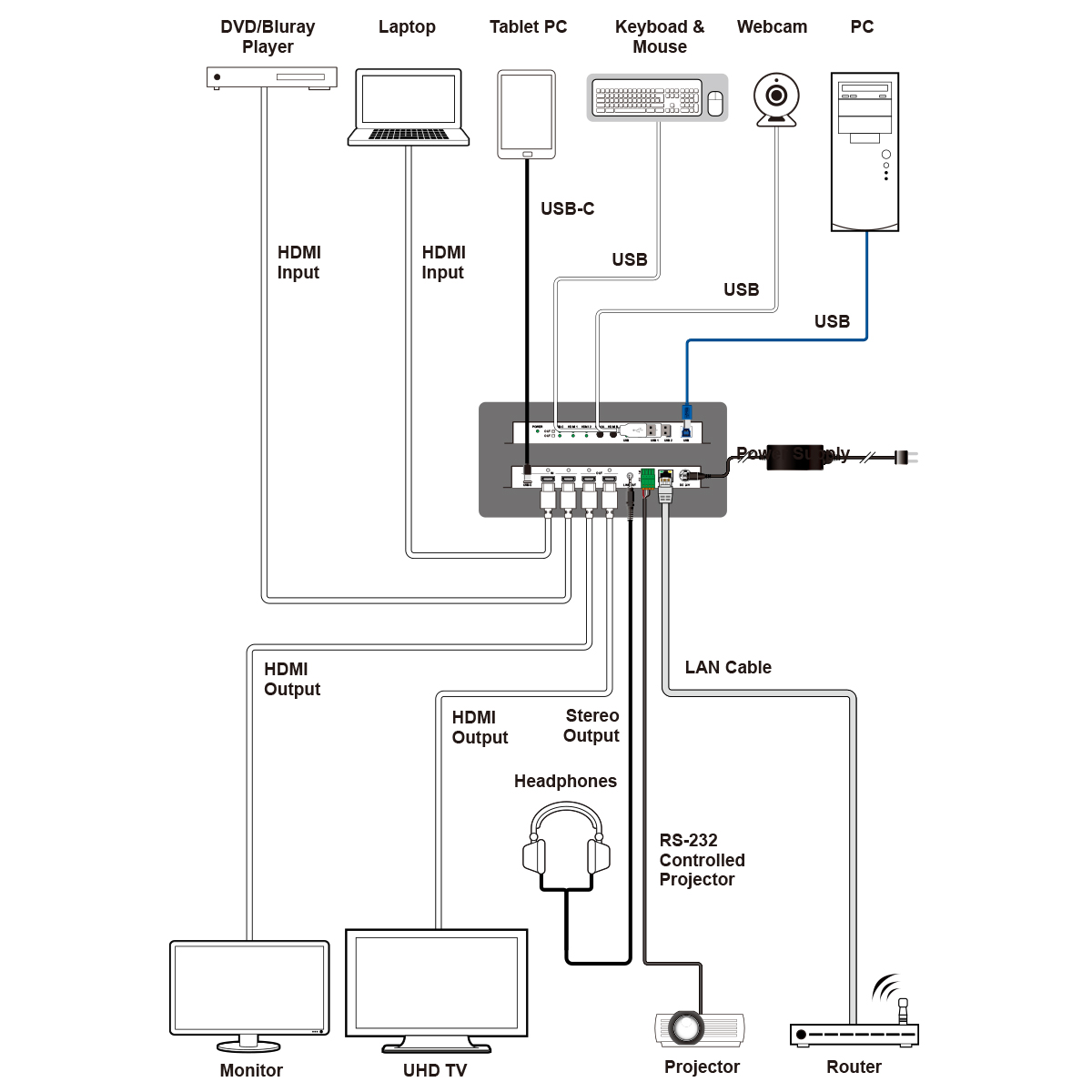

This 3 by 2 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 Compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit). The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection. This matrix also includes a USB 3.0 hub with two host ports (Type-B and Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is ideal for use in meeting rooms, classrooms, and audio integration with USB expansion. This unit is controllable via front panel controls, WebGUI, Telnet and RS-232.
Features
- HDMI Output Port A supports downscale a 4K signal to 1080p@60Hz
- USB-C port supports USB 3.0 speed, device powering 20V/3A and one gigabit Ethernet at best
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- The matrixed, dual HDMI outputs can directly feed into two flat-panel displays side-by-side
- Support USB 3.0 with one USB type B and one USB type C interface for connection to a host PC, plus two USB type A ports for peripheral devices such as keyboard, mouse and storage extension
- Supports auto-switch functionality with a “last memory” feature for both input ports and USB ports
- Supports basic signal event automation (via RS-232, IP or CEC)
Brand:
Cypress Technology
Product Type:
HDMI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
2xRS-232 (4-Pin Terminal Block), 1xLAN (RJ45)
Special Features:
Supports Auto-Switch Functionality with a “last Memory” Feature for Both Input Ports and USB Ports
Power Rating:
67.68W
Chassis Material:
Steel
Applications:
Home Entertainment Room, Lecture Hall Display and Control, Showroom Displays, Meeting Room Presentation and Control, Classroom Presentations
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xUHD+ 3x2 Matrix Switcher with USB Ethernet Hub, 1x24V/5A DC Power Adapter, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
18Gbps
Signal-to-Noise Ratio:
>104dB@0dBFS
Baud Rate:
Up to 115200bps
Crosstalk Level:
<-76dB@10kHz
Inputs and Ports
Input Port Type:
2xHDMI-Type A, 1xUSB Type C
Output Port Type:
2xHDMI-Type A, 1xStereo Audio (3.5mm)
Number of Ports:
3x2
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
11.2cm
Width:
21.35cm
Height:
2.5cm
Weight:
690g
Other
Voltage Rating:
24V
Voltage Rating:
24V
