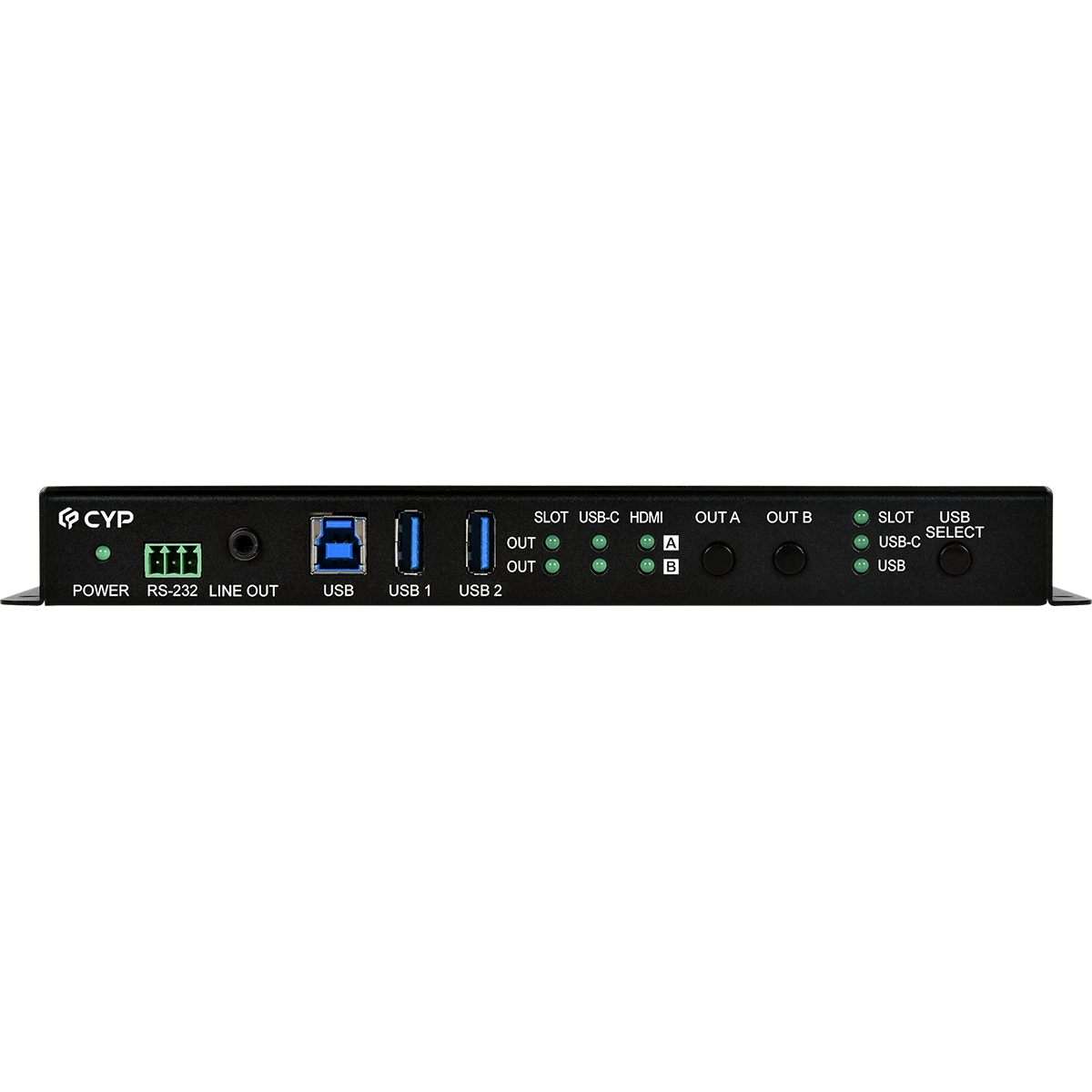

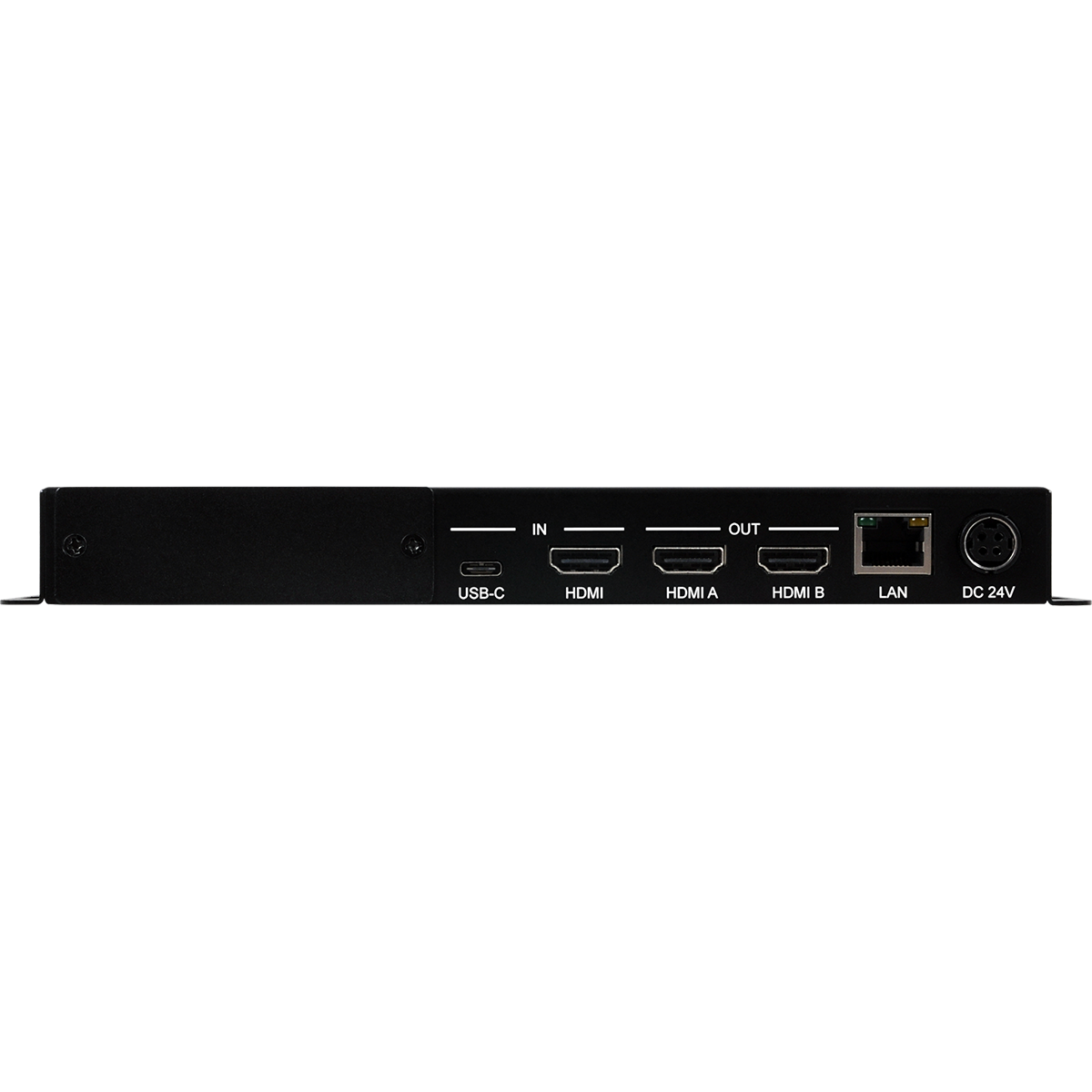

CPLUS-V32SDM Matrix Switcher, 3x2 Mulit-Format with USB Ethernet
Please sign in so that we can notify you about a reply
CPLUS-V32SDM is a 3x2 matrix switch for use in a wide range of multi-format signals and can be equipped with SDM module cards to widen usages. With the commonly used HDMI outputs, this unit can switch video signals between HDMI and USB-C. This product has a module card slot to let users equip additional function cards and fulfill different scenarios. This matrix switcher supports HDCP2.2, resolutions up to 4k@60Hz (4:4:4, 8-bit), and can be controlled via WebGUI, Telnet and RS-232. It also includes USB3.0 hub with two host-ports and two device-ports for flexible KVM configuration. With the USB extension, this product is ideal for conference, remote meeting, and education scenarios.
Features- Supports USB 3.0 with one USB-B port, one USB-C port for connecting to a host PC, and two USB-A ports for peripheral devices and storage extension
- Supports gigabit Ethernet
- Supports pass-through of 8 channel LPCM, bit stream & HD bit stream audio formats
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- Supports basic signal event automation (via RS-232, IP or CEC)
- One module card slot for CYP SDM series module cards
Brand:
Cypress Technology
Product Type:
Matrix Switcher
Specifications
Colour:
Black
Control Port Type:
1×RS-232 (3-pin Terminal Block), 1×LAN (RJ-45)
Special Features:
Supports Gigabit Ethernet, Supports 8 Channel LPCM, Supports 4K HDR
Power Rating:
75W
Chassis Material:
Steel
Applications:
Conference, Remote Meeting, Education Scenarios
Includes:
USB3.0 Hub, 2xHost-Ports , USB Extension
Performance
Resolution:
4096x2160pixel@60 (YUV 4:4:4)
Inputs and Ports
Input Port Type:
1xHDMI, 1×USB -C, 1×Slot
Output Port Type:
2×HDMI, 1×Stereo Audio (3.5mm)
Number of Ports:
11
Power
Current Rating:
6.25A
Dimensions
Length:
23.1cm
Width:
15.8cm
Height:
2.4cm
Weight:
896g
Other
Voltage Rating:
24V DC
