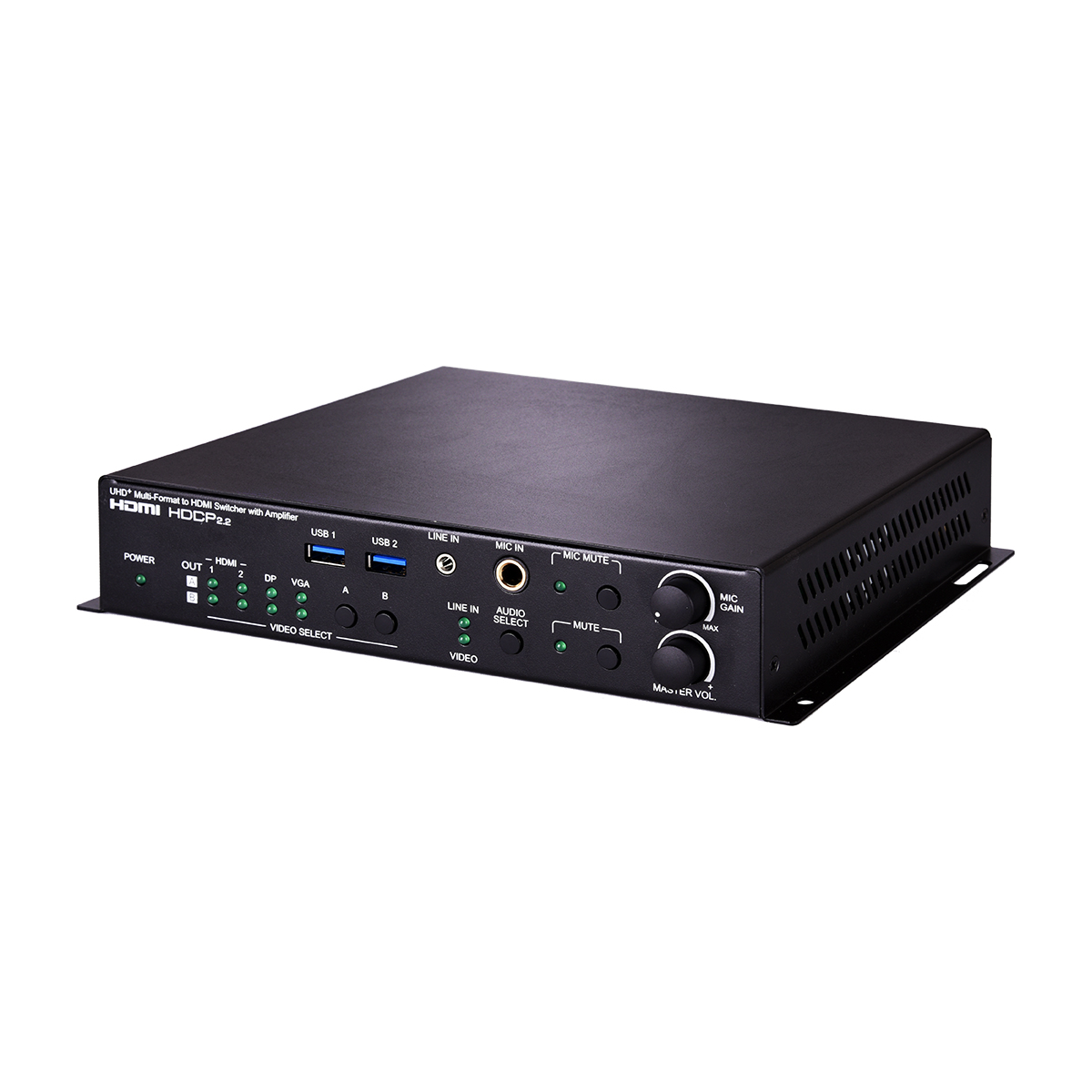

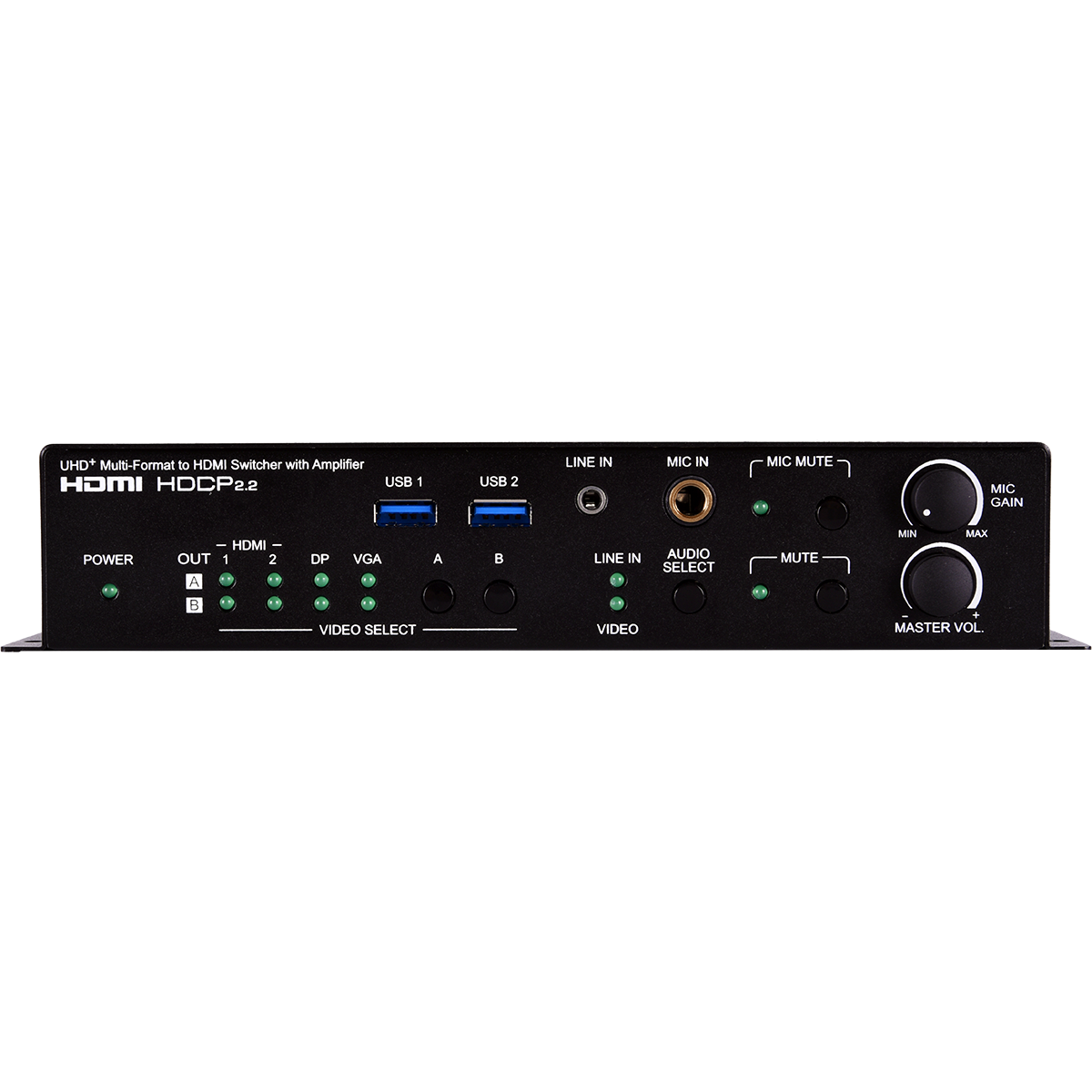

CPLUS-V2030 UHD+ Multi-Format to HDMI Switcher with Amplifier

Write a review
CPLUS-V2030
Cypress Technology
Out of stock
Log in to see price Add to wish list

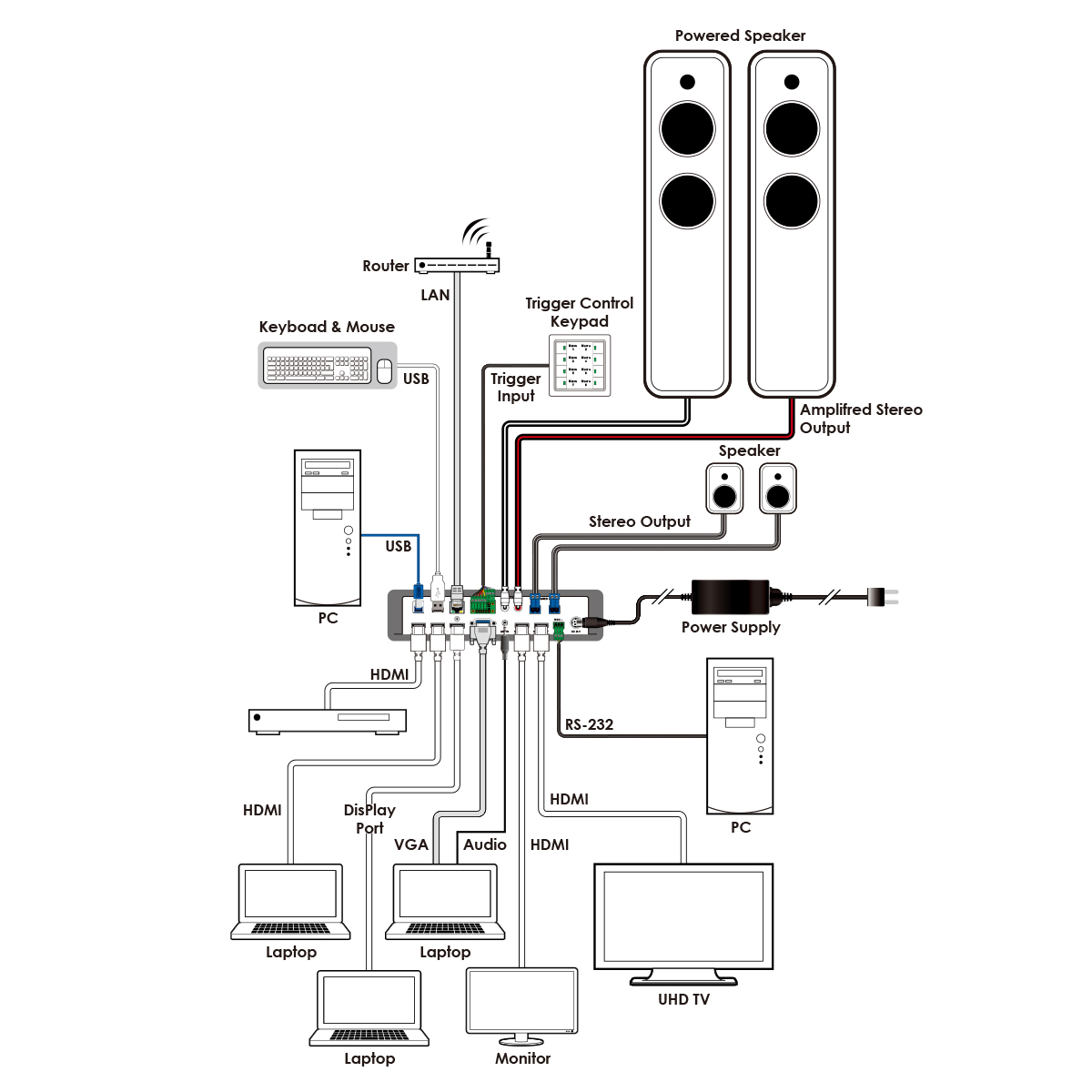

This 4 by 2 matrix switcher features HDMI, VGA, and Display Port inputs, plus HDMI outputs. The CPLUS-V2030 is HDCP 2.2 Compliant and supports up to a maximum of 4K@60Hz (4:4:4, 8-bit) for HDMI and Display port inputs. The included microphone input, with optional 48V/0V phantom power support and automatic ducking, feeds directly into a DSP mixer, allowing for powerful presentations with live voice-overs or even an impromptu karaoke session. This switcher supports USB3.0 with one host (Type B) PC, plus three peripheral devices (Type-A) for a multisource, bidirectional, and highly flexible KVM configuration (Note:Only 1 USB host may be active at a time). Moreover, it also provides an interface for a remote control keypad or trigger interface, which can be easily installed within a podium or table. CDPS-Trigger Control Keypad is suitable for this application. This matrix switcher is ideal for use in meeting rooms and classrooms with dual displays, auditoriums and lecture halls which need comprehensive audio integration features as well as video conferencing that requires USB data.

Features

  • Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats
  • Supports microphone/line level input with 48 volt phantom power and automatic ducking, audio output matrix mixing, and volume, mute
  • High performance and efficient 2 channel, class D amplifier with 20 watts of power per channel and volume control
  • Supports extended keypad (trigger) control for easy, single button and macro activation (optional equipment)
  • The matrixed, dual HDMI outputs can directly feed into two flat-panel displays side-by-side
Brand:
Cypress Technology
Specifications
Product Type:
Multi Format HDMI/HDBaseT Scaler
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1xRS-232 (3-Pin Terminal Blo), 1xTrigger (10-Pin Terminal Block), 1xLAN (RJ45)
Special Features:
The Matrixed, Dual HDMI Output Can Directly Feed Into Two Flat-Panel Displays Side-By-Side
Power Rating:
43W
Chassis Material:
Steel
Applications:
Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xUHD+ Multi-Format HDMI Switcher with Amplifier, 1x24V/3.75A DC Power Adapter, 1xPower Cord, 2x5-Pin Terminal Block, 1x3-Pin Terminal Block, 2x2-Pin Terminal Block, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Signal-to-Noise Ratio:
>100dB@0dBFS, >106dB@0dBFS
Baud Rate:
19200bps
Crosstalk Level:
<-84dB@10kHz, <-80dB@10kHz

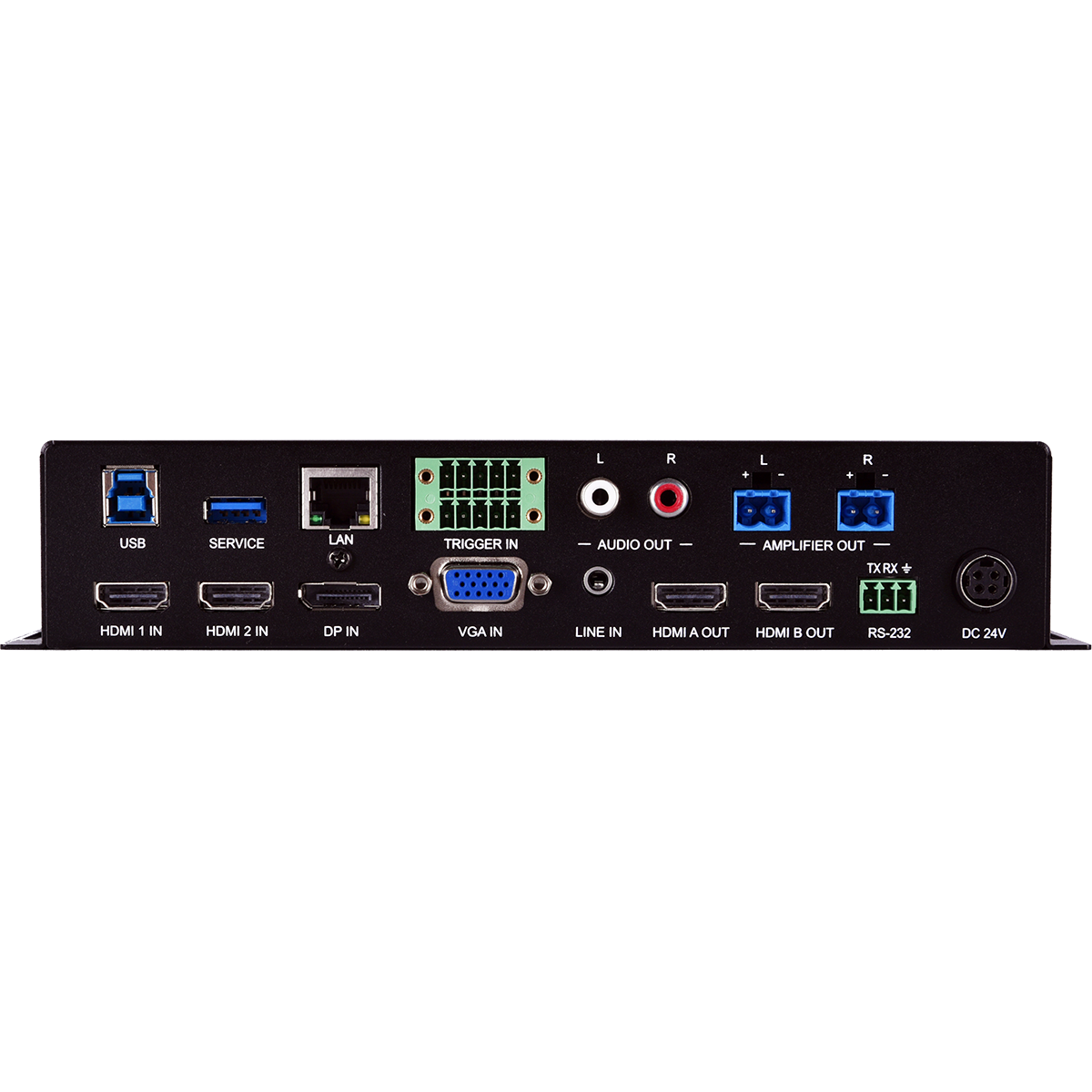

Inputs and Ports
Input Port Type:
2xHDMI-Type A, 1xVGA (HD-15), 1xDisplay Port, 2xUnbalanced Stereo (3.5mm), 1xMicrophone (6.35mm)
Output Port Type:
2xHDMI-Type A, 1xStereo (2xRCA), 1xStereo (2x2-Pin Terminal Block)
Number of Ports:
4x2
Power
Current Rating:
3.75A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
17.1cm
Width:
23.15cm
Height:
4.4cm
Weight:
1200g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
CE/FCC/UL Certified
