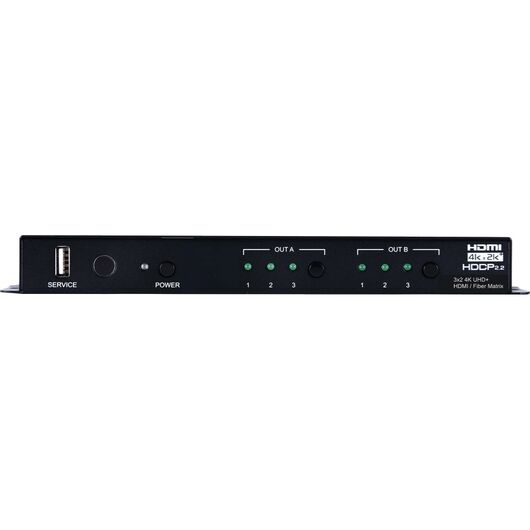

CPLUS-32FX HDMI over Fiber 4K UHD+ Transceiver
Please sign in so that we can notify you about a reply
3x2 HDMI matrix switcher supporting input and output resolutions up to 4096x2160/60 (at YUV 4:4:4, 8bit), EDID and HDCP 1.4/2.2. Has two HDMI inputs with a bandwidth of 18 Gbps, 600 MHz and one optical input with a bandwidth of 10.2 Gbps, 340 MHz for a multimode cable with 2xLC connectors. Outputs: one 600 MHz HDMI and one 2xLC, 340 MHz optical output. Controlled using front panel buttons, via IR, RS-232 and IP (Telnet, web-interface).
Features- HDMI with 3D & 4K@60Hz with HDR support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 2.2 and 1.x compliant
Brand:
Cypress Technology
Product Type:
HDMI over Fiber 4K UHD+ Transceiver
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
1×IR Extender (3.5mm), 1×RS-232 (3.5mm), 1×IP Control (RJ-45)
Special Features:
HDMI with 3D & 4K@60Hz with HDR Support, Fiber Transmission Distances of Up to 300m
Power Rating:
7.1W
Chassis Material:
Metal
Applications:
Entertainment Rooms & Home Theaters, Showrooms & Demo Rooms, Lecture Hall Presentations, Public Commercial Displays
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
3 by 2 HDMI and Fiber Matrix, Remote Control (CR-155), IR Extender Cable, 3.5mm to 9-pin D-sub Adapter, 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Resolution:
4096×2160Pixel
Video Bandwidth:
600MHz/18Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
2×HDMI, 1×Fiber Optical (Paired LC connector)
Output Port Type:
1×HDMI, 1×Fiber Optical (Paired LC Connector)
Number of Ports:
3x2
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
11.2cm
Width:
2.4cm
Height:
4.8cm
Weight:
796g
Other
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE/FCC/UL Certified
No reviews found
