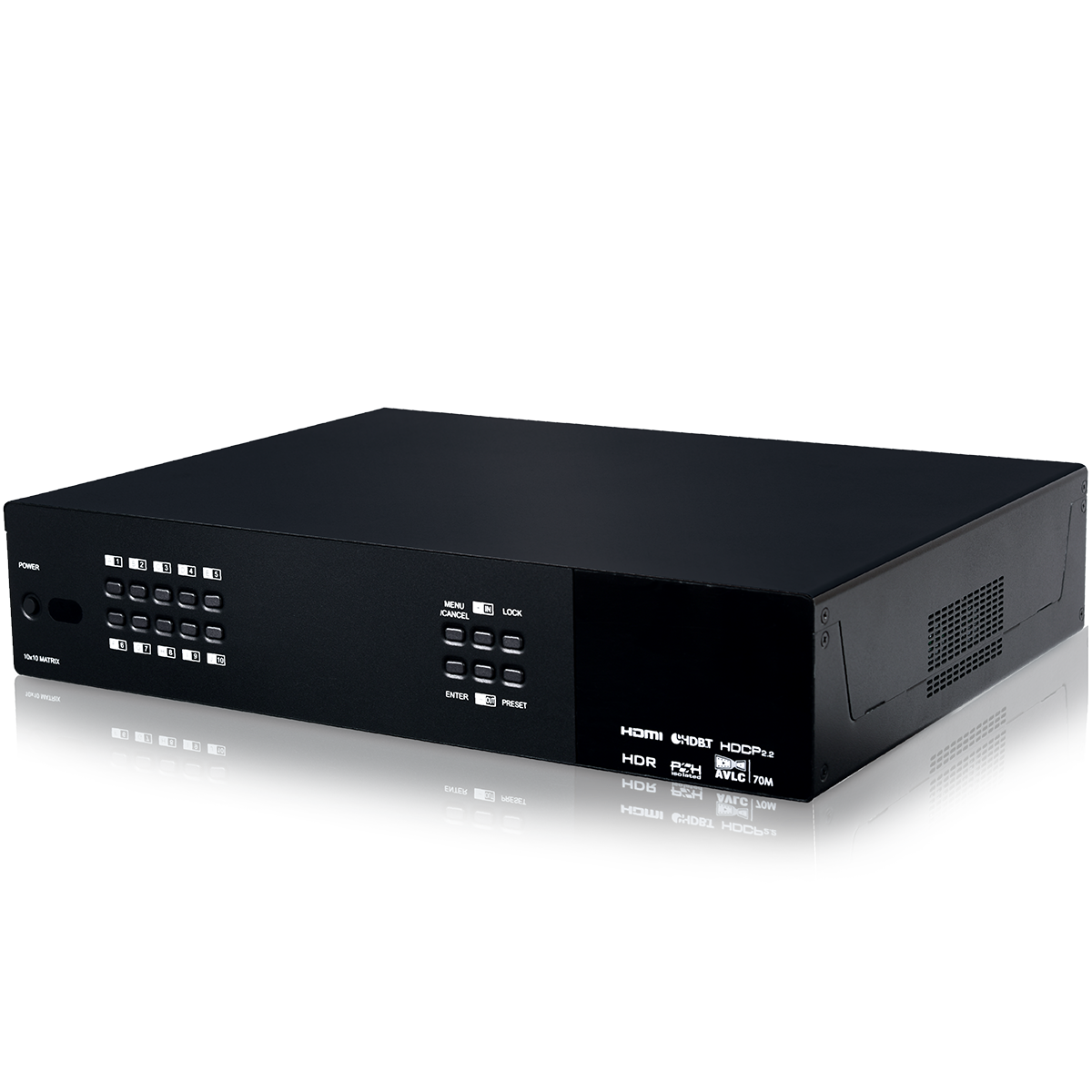

CPLUS-1082VA UHD + 10x10 HDMI/HDBaseT Matrix with AVLC & Audio Matrixing
Please sign in so that we can notify you about a reply
As many as ten UHD sources may be routed to any of eight HDBaseT outputs (up to 100m at 1080p or up to 70m at 4K) or two HDMI outputs at resolutions up to 4K@60Hz (8-bit, Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. The HDMI outputs can also be set to mirror any of the HDBaseT outputs for local monitoring.
Features
- Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs
- Supports Deep Color input and output up to 12-bit
- Supports 10-bit and 12-bit HDR bypass
- Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass through)
- All HDBaseT outputs support OAR (Optical Audio Return)
- 4K signals can be transmitted up to 70m via Cat.5e/6 and up to 100m via Cat.6a/7
- Supports pass-through of these standard digital audio formats via HDMI/HDBaseT: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Advanced DAC (Digital to Analog Conversion) and ADC (Analog to Digital Conversion) for audio integration
- Supports integrated audio over CAT inputs and outputs for transmission up to 300m
- Supports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputs
- Audio mixer functionality (three mixers in total)
- Advanced internal and external EDID management with 4 sets of configurable EDID settings
- Internal test pattern generation (up to 1080p) for self and sink testing
- 2U rack mounted design

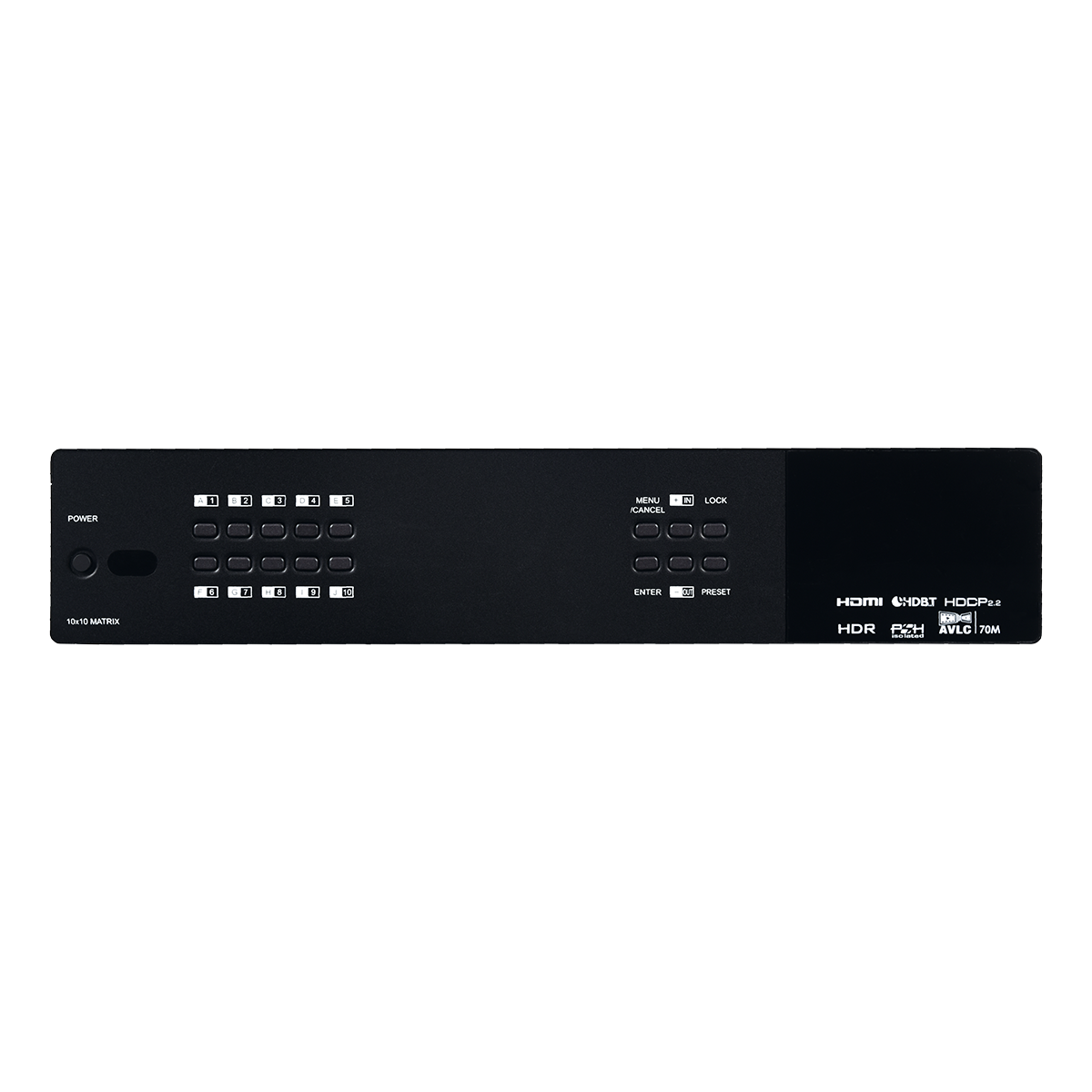

- Control via front panel buttons with OLED menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote
Brand:
Cypress Technology
Specifications
Product Type:
HDMI/HDBaseT Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
1xLAN (RJ45)
Special Features:
Audio Mixer Functionality, Internal Test Pattern Generation (Up to 1080p) for Self and Sink Testing
IR Frequency:
30 to 50kHz, 30 to 60kHz
Power Rating:
236W
Chassis Material:
Steel
Applications:
Full Audio/Video Matrix Systems, Residential AV Matrix Installations, Commercial AV Matrix Installations, Security Systems, University Lecture Hall Systems, Retail Installation System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI/Audio Over HDBaseT Matrix, 2x24V/6.25A DC Power Adapter, 2xPower Cord, 2x3.5mm to IR Extender Cable, 2x3.5mm to IR Blaster Cable, 1xRemote Control (CR-163), 1xRackmount Ears (Set of 2), 1xDetachable Handles (Set of 2), 1xOperation Manual
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
HDMI:600MHz/18Gbps, HDBaseT Bandwidth:34 0MHz/10.2Gbps
Signal-to-Noise Ratio:
>100dB@0dBFS
Baud Rate:
Up to 115200bps
Total Harmonic Distortion:
<0.01%
Crosstalk Level:
<-90dB@10kHz
Inputs and Ports

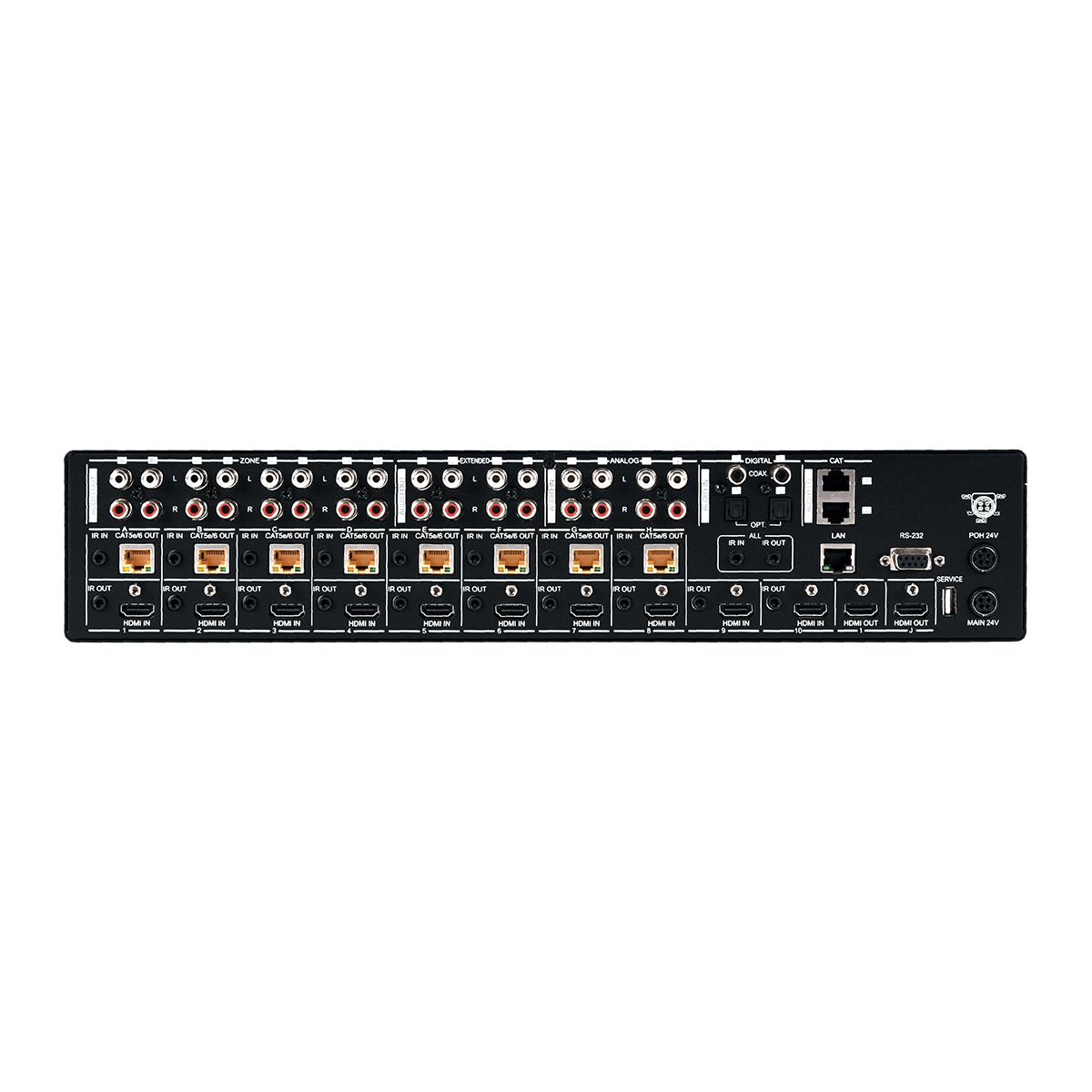

Input Port Type:
10xHDMI, 2xS/PDIF (TOSLINK), 2xS/PDIF (RCA), 4xAnalog Stereo (8xRCA)
Output Port Type:
2xHDMI, 8xHDBaseT (RJ45), 12xAnalog Stereo (24 RCA)
Number of Ports:
10x10
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
35.6cm
Width:
48.3cm
Height:
9.6cm
Weight:
6500g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
