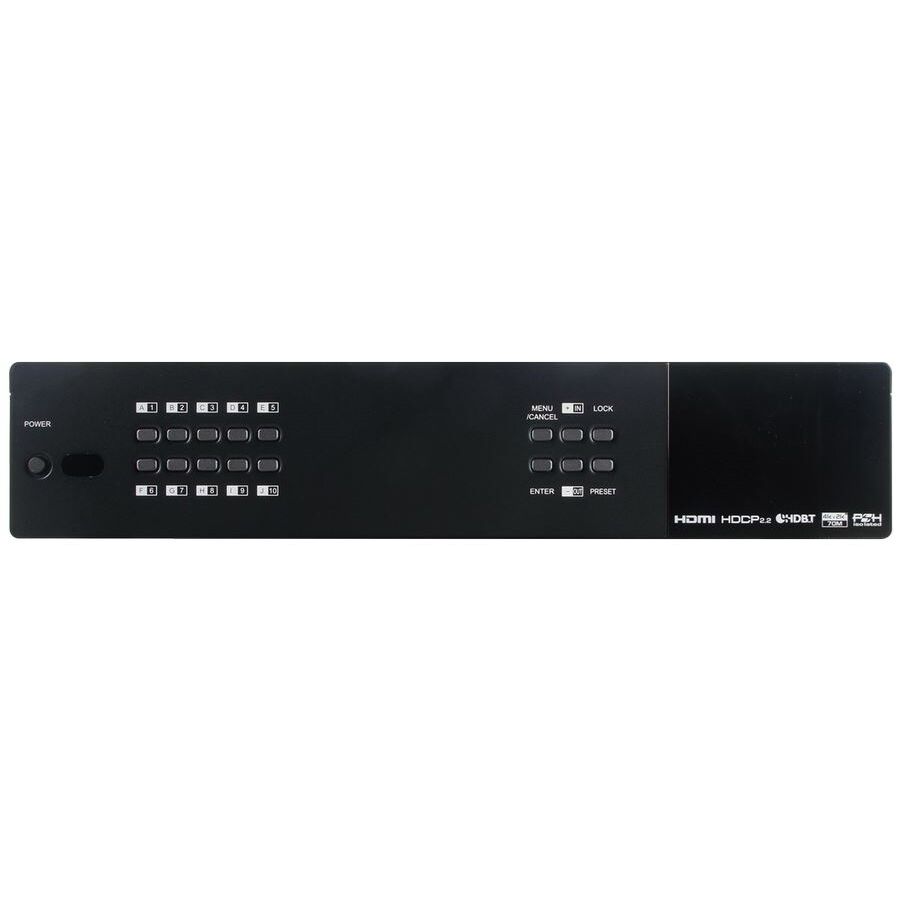

CPLUS-1082CVEA 10x10 HDMI HDBaseT Matrix
Please sign in so that we can notify you about a reply
The 10 x 10 HDMI/HDBaseT Matrix supports video transmission (resolutions up to 4K2K@60Hz & HDCP 2.2), multi-channel digital and analog audio and control via IR, RS-232, Telnet or WebGUI from ten High Definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. In addition, 2 HDMI outputs can work with any 2 HDMI input, together they can work as a 2x2 Matrix of 6G video. Further, it supports passthrough of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and a 3D source.
Features- Routes 10 HDMI sources to 10 displays
- 8 x HDBaseT outputs support 300MHz resolution YUV 4:4:4 and 2 support 600MHz resolution
- Supports resolutions up to 1080p and 4K@30Hz on HDBaseT output ports and up to 4K@60Hz YUV444 on HDMI output ports
- HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliant
Brand:
Cypress Technology
Specifications
Product Type:
10x10 HDMI HDBaseT Matrix
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
9×IR Extender, 11×IR Blaster, 1×RS-232 (9-pin D-sub), 1×IP Control (RJ-45)
Special Features:
2U Rack Mounted Design, Bi-Directional IR Support over HDBaseT
Power Rating:
175W
Chassis Material:
Metal
Applications:
Full Audio/Video Matrix Systems, Residential AV Matrix Installations, Commercial AV Matrix Installations
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Remote Control (CR-163), 2× IR Extender Cable, 2× IR Blaster Cable, 2× 24V/6.25A DC Power Adaptor, 2× Power Cord, Rack Ear Set, Operation Manual
Performance
Resolution:
4096×2160Pixel
Video Bandwidth:
HDMI: 600 MHz/18 Gbps, HDBaseT: 340 MHz/10.2 Gbps
Signal-to-Noise Ratio:
> 100dB @ 1K 0dBFS
Baud Rate:
115200bps
Maximum Output:
2Vrms
Total Harmonic Distortion:
1K 0dBFS, 1K -1dBFS
Crosstalk Level:
< 90dB @ 20Hz to 20KHz
Inputs and Ports
Input Port Type:
10×HDMI, 8×RCA [Stereo Audio], 2×Coaxial [S/PDIF Audio], 2×Optical [S/PDIF Audio], 2×Cat.5e [Bi-directional Audio]
Output Port Type:
8xHDBaseT, 2xHDMI, 4xRCA, 11xIR
Number of Ports:
10x10
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
35.6cm
Width:
48.3cm
Height:
9.6cm
Weight:
6500g
Other
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE/FCC/UL Certified
