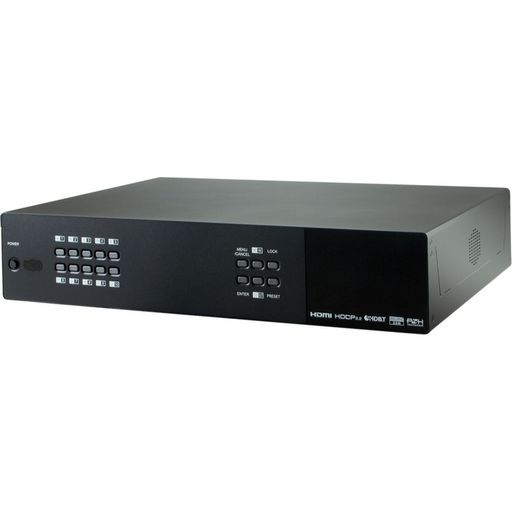

CPLUS-1082CVAL 10x10 HDMI HDBaseT LITE Matrix
Please sign in so that we can notify you about a reply
This 10×10 HDMI and HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as ten UltraHD sources may be routed to any of ten destinations, eight via single Cat.5e/6/7 cables (up to 60m at 1080p or up to 35m at 4K@30Hz) and two via HDMI 2.0 outputs. The two HDMI 2.0 outputs support transmission of 18Gbps UltraHD HDMI sources (up to 4K@60Hz, 4:4:4) from any HDMI input or they can mirror any of the HDBaseT outputs for local monitoring. 3D video is also supported when compatible sources and displays are connected.
Features- HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliant
- Routes 10 HDMI sources to 10 displays using 8 HDBaseT outputs and 2 independent or mirrored HDMI outputs
- Supported HDBaseT resolutions: VGA to WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 & YUV 4:2:2) & 4K@60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Brand:
Cypress Technology
Product Type:
10x10 HDMI HDBaseT LITE Matrix
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
9×IR Extender, 11×IR Blaster, 1×RS-232 (9-pin D-sub), 1×IP Control (RJ-45)
Special Features:
2U Rack Mounted Design, Bi-Directional IR Support over HDBaseT
Power Rating:
175W
Chassis Material:
Metal
Applications:
Full Audio/Video Matrix Systems, Residential AV Matrix Installations, Commercial AV Matrix Installations
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Remote Control (CR-163), 2× IR Extender Cable, 2× IR Blaster Cable, 2× 24V/6.25A DC Power Adaptor, 2× Power Cord, Rack Ear Set, Operation Manual
Performance
Resolution:
4096×2160Pixel
Video Bandwidth:
HDMI: 600MHz/18Gbps, HDBaseT: 340MHz/10.2Gbps
Signal-to-Noise Ratio:
> 100dB @ 1K 0dBFS
Baud Rate:
115200bps
Maximum Output:
2Vrms
Total Harmonic Distortion:
1K 0dBFS, 1K -1dBFS
Crosstalk Level:
< 90dB @ 20Hz to 20KHz
Inputs and Ports
Input Port Type:
10×HDMI, 8×RCA [Stereo Audio], 2×Coaxial [S/PDIF Audio], 2×Optical [S/PDIF Audio], 2×Cat.5e [Bi-directional Audio]
Output Port Type:
2×HDMI, 8×Cat.5e/6/7, 16×RCA [Stereo Audio], 8×RCA [Extended Stereo Audio], 2×Cat.5e [Bi-directional Audio]
Number of Ports:
10x10
Power
Current Rating:
6.25A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Length:
9.6cm
Width:
48.3cm
Height:
35.6cm
Weight:
6500g
Other
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE/FCC/UL Certified
