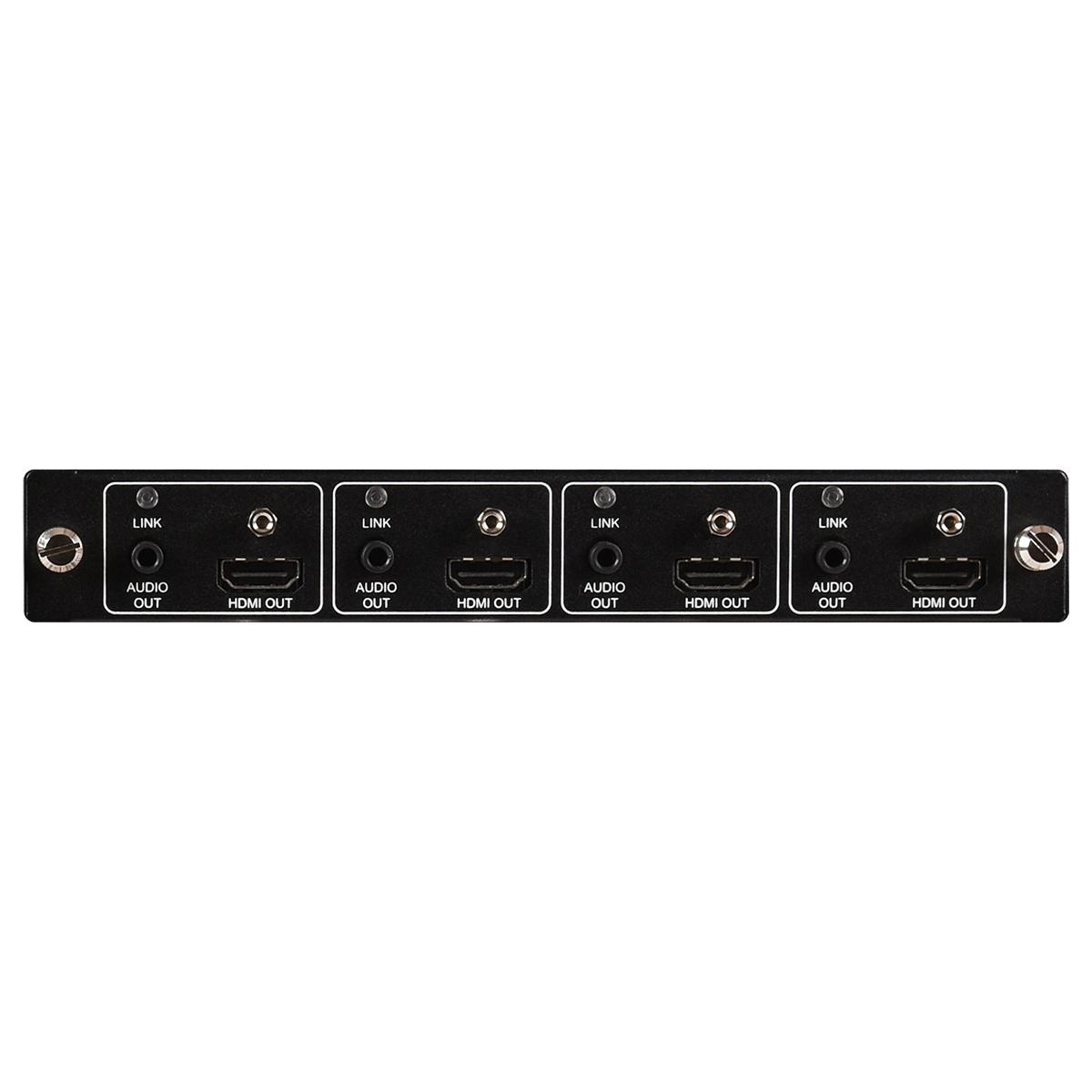

COUT-V4HP 4-Port HDMI Output Card

This 4-port HDMI Output Card provides 4 independent high-bandwidth HDMI outputs, paired with analog stereo outputs. Each output can be freely routed to from any available input on the connected modular matrix. Each HDMI port supports up to 18Gbps allowing for resolutions up to 4K@60Hz with HDR and high-bitrate digital audio. Optionally, analog stereo audio may be extracted from the HDMI signal (LPCM 2.0 sources only).

Features
  • 4 HDMI output ports paired with analog stereo output ports
  • Single-link DVI compatible with the use of an HDMI-DVI adapter
  • HDCP 2.2 and HDCP 1.x Compliant
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) output
  • Supports 12-bit Deep Color up to 1080p@60Hz
  • Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Supports stereo audio extraction (LPCM 2.0 sources only)
  • This card’s features are controlled by the modular matrix
Brand:
Cypress Technology
Product Type:
HDMI Output Card
Specifications
Colour:
Black
Special Features:
Each output can be freely routed to from any available input on the connected modular matrix
Chassis Material:
Steel
Performance
Resolution:
4096x2160pixels@60Hz
Video Bandwidth:
18Gbps
Signal-to-Noise Ratio:
>70dB (1kHz with 0dBFS)
Total Harmonic Distortion:
<0.01% (20Hz to 20kHz)
Crosstalk Level:
<-60dB
Inputs and Ports
Output Port Type:
4xHDMI, 4xAnalog Stereo (3.5mm)
Number of Ports:
4
Dimensions
Length:
36.4cm
Width:
19.75cm
Height:
2.9cm
Weight:
458g
