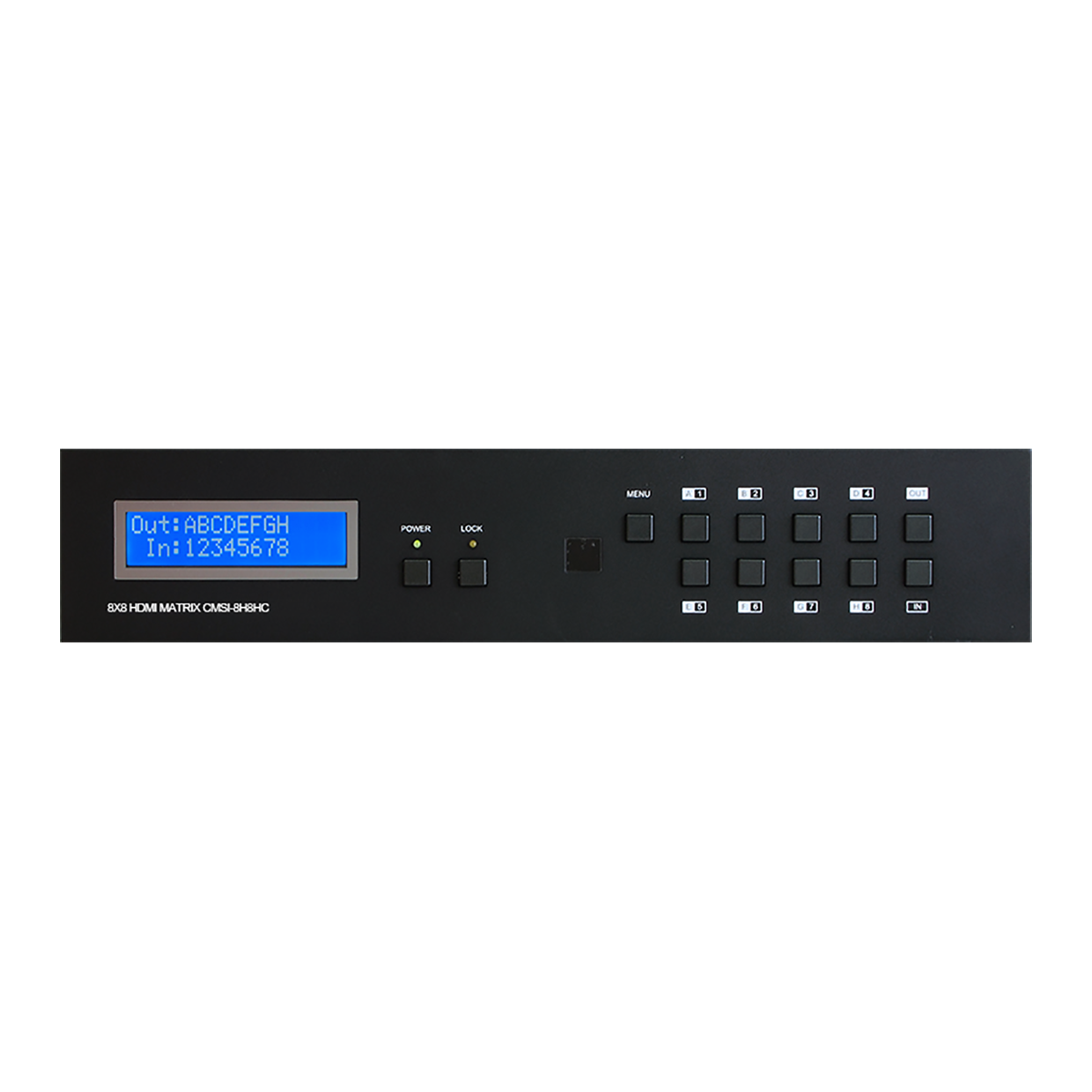

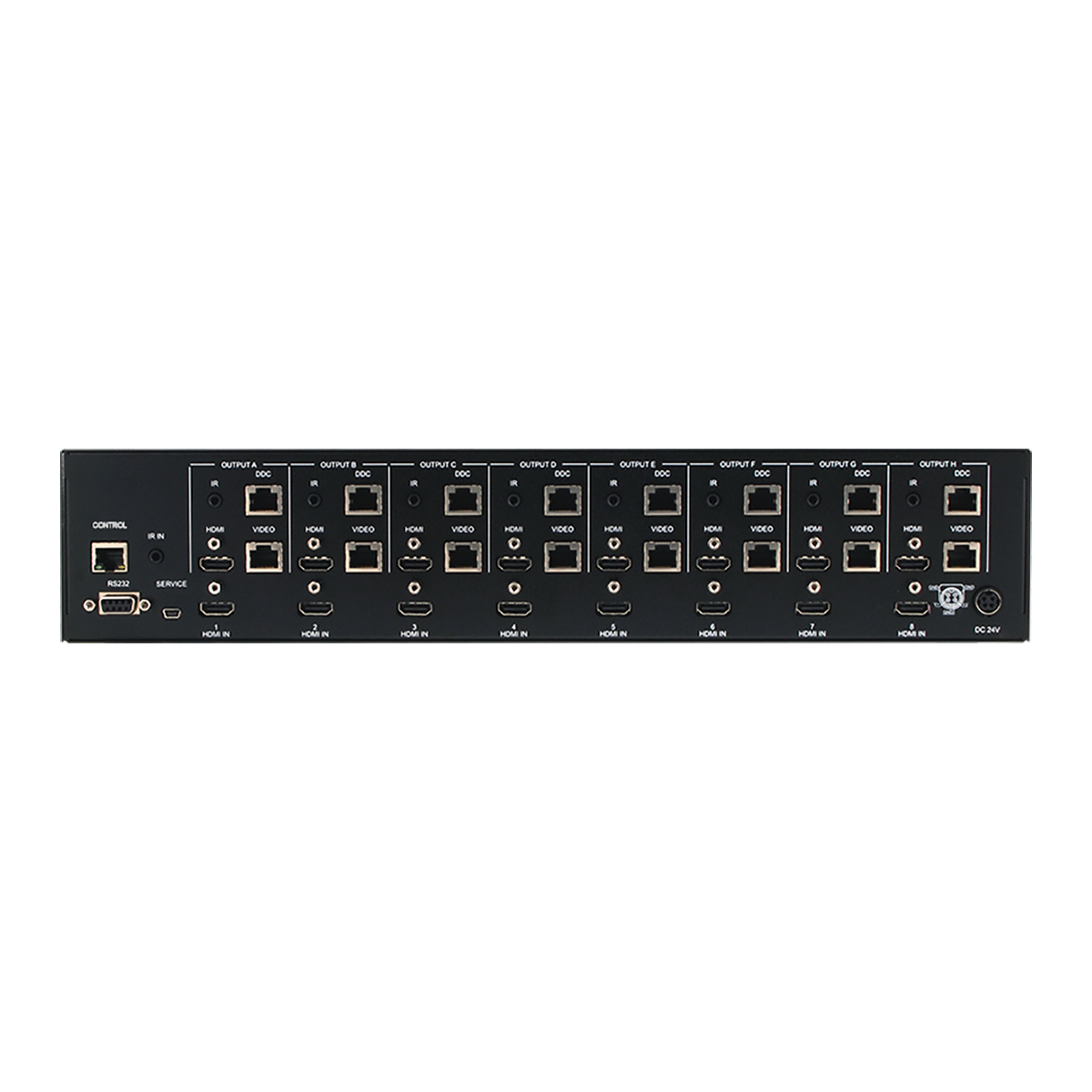

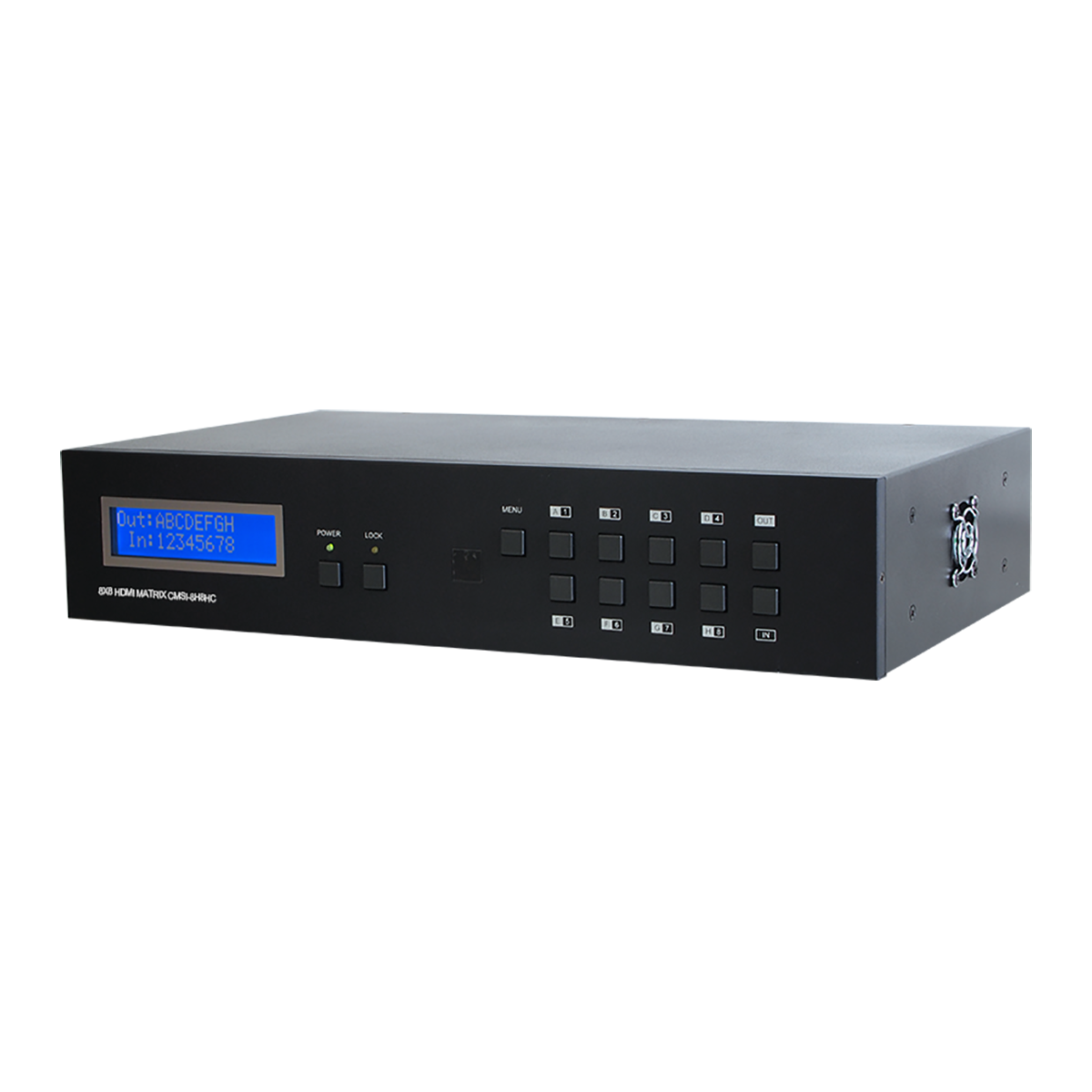

CMSI-8H8HC 8x8 HDMI Matrix with Simultaneous Dual CAT6 and HDMI Outputs
Please sign in so that we can notify you about a reply
The 8×8 HDMI Matrix with simultaneous CAT6 and HDMI outputs connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Dual- CAT-Cable output which runs simultaneously. Connect a CH-1106RX Receiver to each of the Dual-CAT-Cable outputs to extend the HDMI signal up to 45m for multi-room connectivity. This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, Telnet, Web GUI or by using the selection buttons on the front panel. This device supports ‘Deep Color’, High Definition Audio, and 3D signal compatibility.
Features
- HDMI, HDCP 1.1 and DVI Compliant
- Supports HDMI 3D pass-through
- Supports resolutions from VGA~WUXGA@60RB and HD resolutions from 480i~1080p dependent upon the display’s EDID settings
- Supports transmission distances up to 45 meters through Dual CAT6 cables
- Supports 3D signal display dependent upon the display's EDID settings
- Supports simultaneous HDMI and CAT6 outputs
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution; CAT output up to 45 meters at 8-bit resolution
- Supports IR pass-back through CAT for source control
- Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 2U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note:
1. Tested with CAT-6/23AWG cable, results may vary with cables of a different specification.
2. Cable distance tested with a Sony PS3 40G, 37" Philips 8-bit LCD TV and 37" Samsung 12-bit LCD TV.
3. Figures provided in this manual are for reference only, actual figures may vary depending on the source equipment and display being used along with the type of cables and their specifications.
4. Do not connect the LAN/CONTROL port to CAT outputs of this device.
Brand:
Cypress Technology
Product Type:
HDMI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, 2U Size Design
Power Rating:
55W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
225MHz/6.75Gbps
Inputs and Ports
Input Port Type:
8xHDMI, 1xIR Extender, 1xRS-232, 1xMini USB Type B (for Firmware Update Only), 1xRJ45(Control)
Output Port Type:
8xDual CAT6, 8xIR Blaster, 8xHDMI
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.8cm
Weight:
4717 g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
