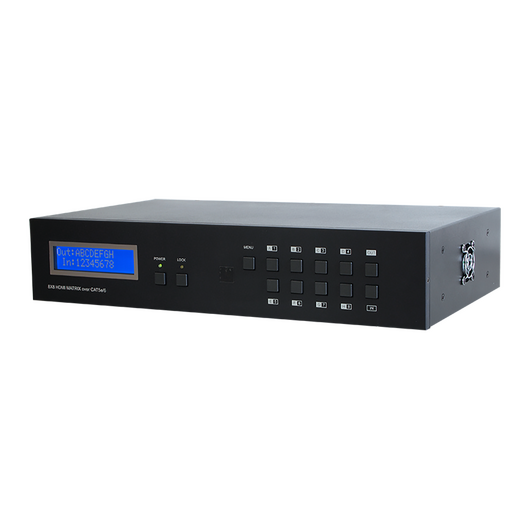

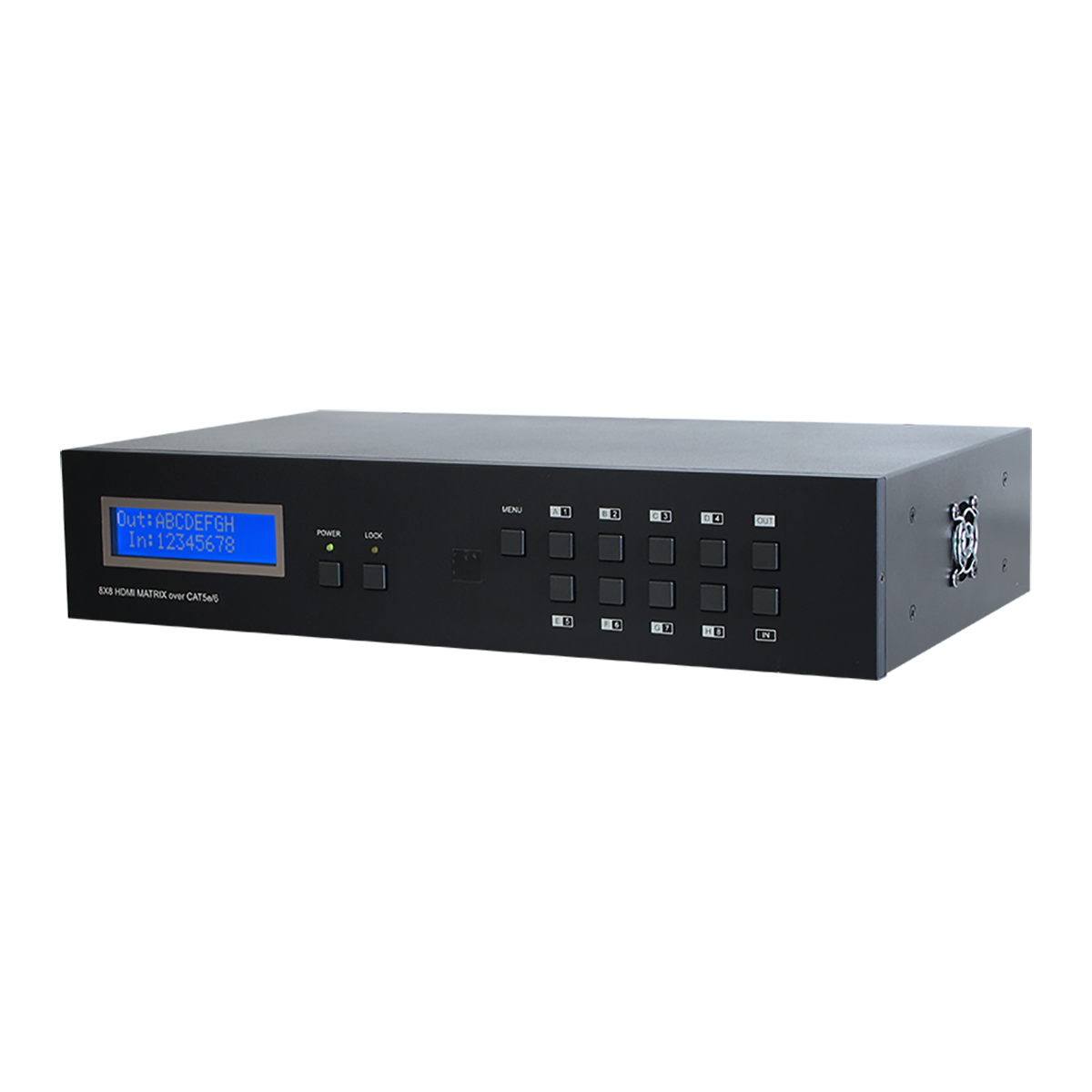

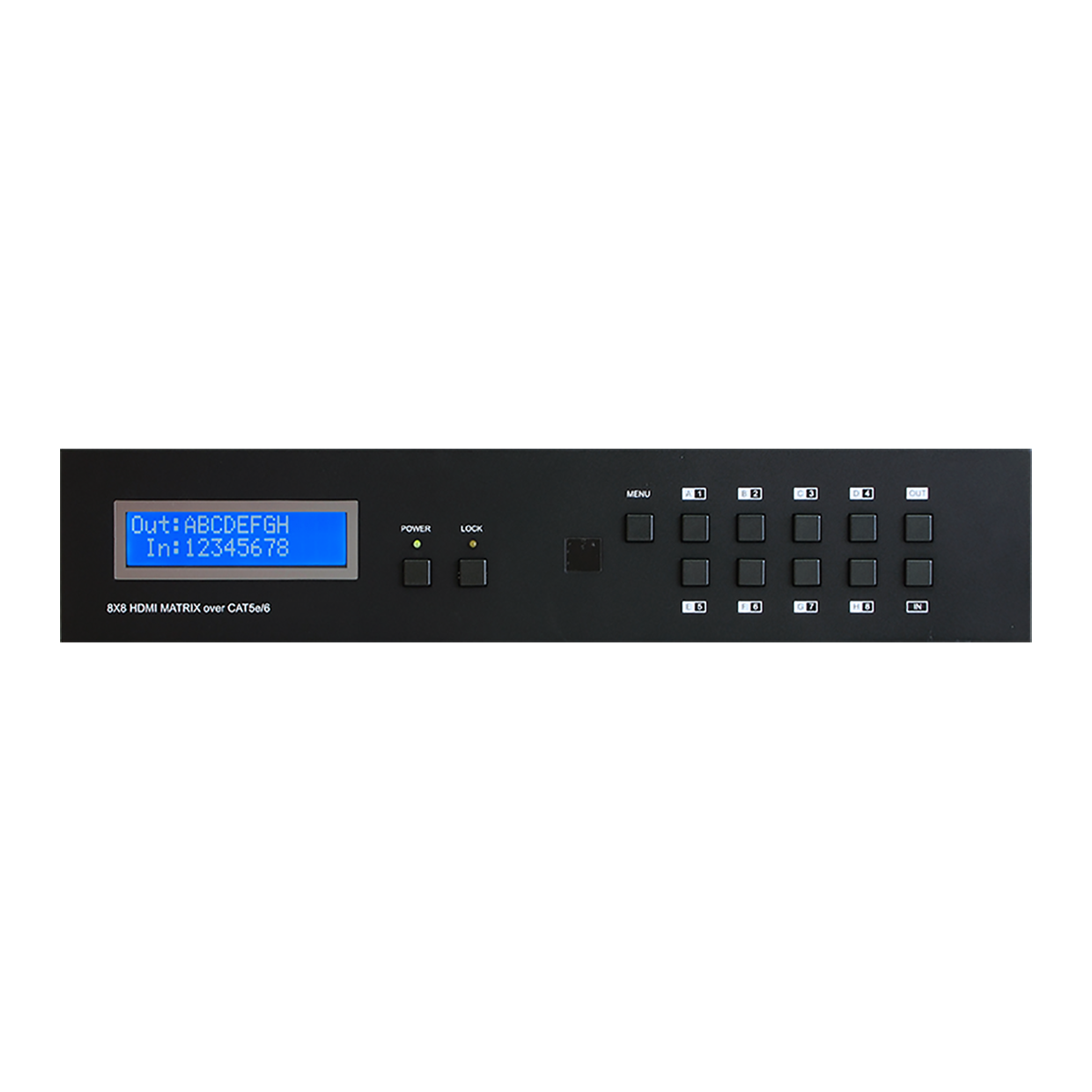

CMSI-8H8CVPL 8x8 HDMI over HDBaseT Matrix (60m) with 24V PoC
Please sign in so that we can notify you about a reply
The matrix is an 8×8 HDMI over HDBaseT Matrix. Installers can switch and distribute up to 8 HDMI sources, and 2-Way IR to lengths of up to 60m using CAT5e/6/7 cable infrastructure. Control of the matrix is via IP, RS-232, IR remote, or manual selection buttons. This single box solution will enable an installer to confidently integrate an eight zone multi-room AV system. The matrix is designed to be used with the compatible receiver which enables the use of 2-Way IR control and 24V PoC (Power over Cable) features.
Features
- Supports all v1.4 HDMI resolutions
- Common supported resolutions - HDTV:480p, 576p, 720p, 1080i, 1080p, 1080p24;PC:VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA
- HDMI, HDCP, and DVI complaint
- Supports passthrough of all standard digital audio formats:LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream (up to 192kHz)
- Uncompressed data transfer over single CAT cable (60m via CAT5e/6/7)
- Supports HDMI input up to 15m at 1080p/8bit or 10m at 1080p/12bit
- Supports RS-232, 2-Way IR, manual selection buttons, and HDMI CEC control passthrough
- Selectable EDID settings - TV (downstream) and STD (fixed)
- Compact 2U rackmount design
- Supports IP control
- Supports 3D signals
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Matrix (60m) with 24V PoC
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP, and DVI complaint
Power Rating:
60.8W
Chassis Material:
Metal
Applications:
HDMI Matrix System, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Display and Control, University Lecture Hall/Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x8 by 8 HDMI Over HDBaseT Matrix (60m) with 24V PoC, 1xRemote Control (CR-110), 2xIR Extender Cable, 2xIR Blaster Cable, 2x24V/6.25A DC Power Adaptor, 2xPower Cord, 1xRack Mount Ears (Set of 2), 1xOperation Manual
Performance
Resolution:
480i@60Hz-1080pixels@60Hz (12bits)VGA@60Hz-WUXGA@60Hz (RB)
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
19200bps

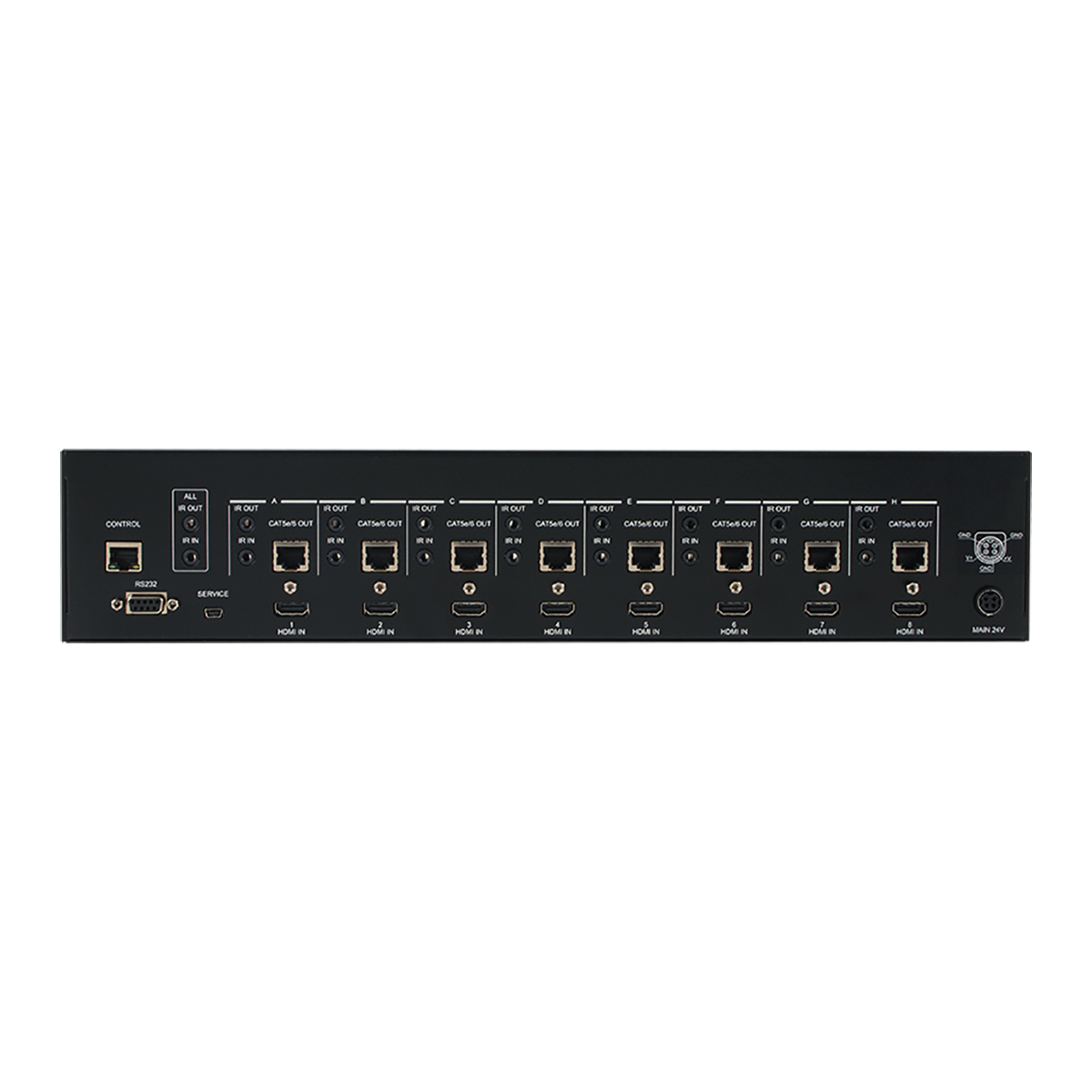

Inputs and Ports
Input Port Type:
8xHDMI
Output Port Type:
8xCAT5e/6/7
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.8cm
Weight:
4458g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
