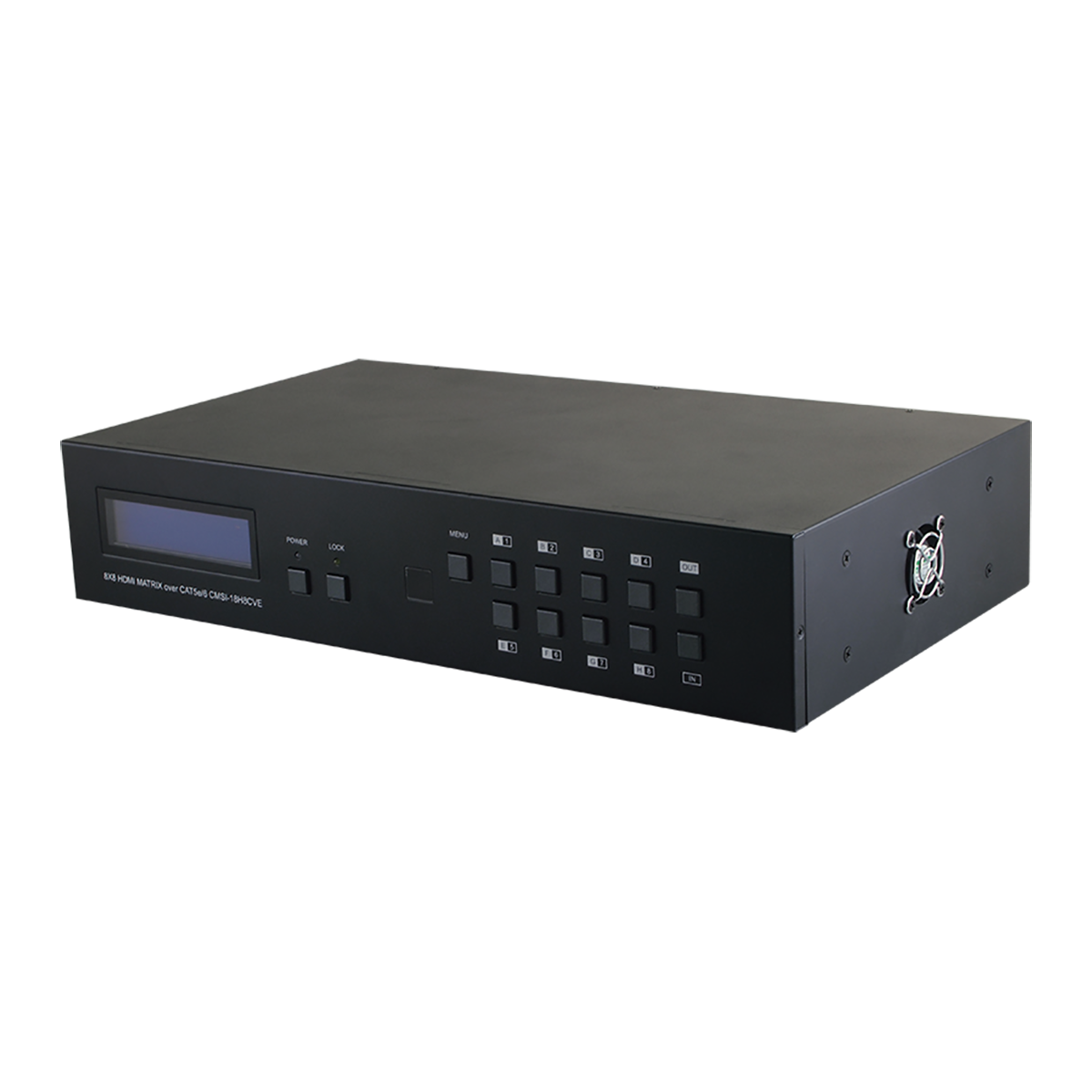

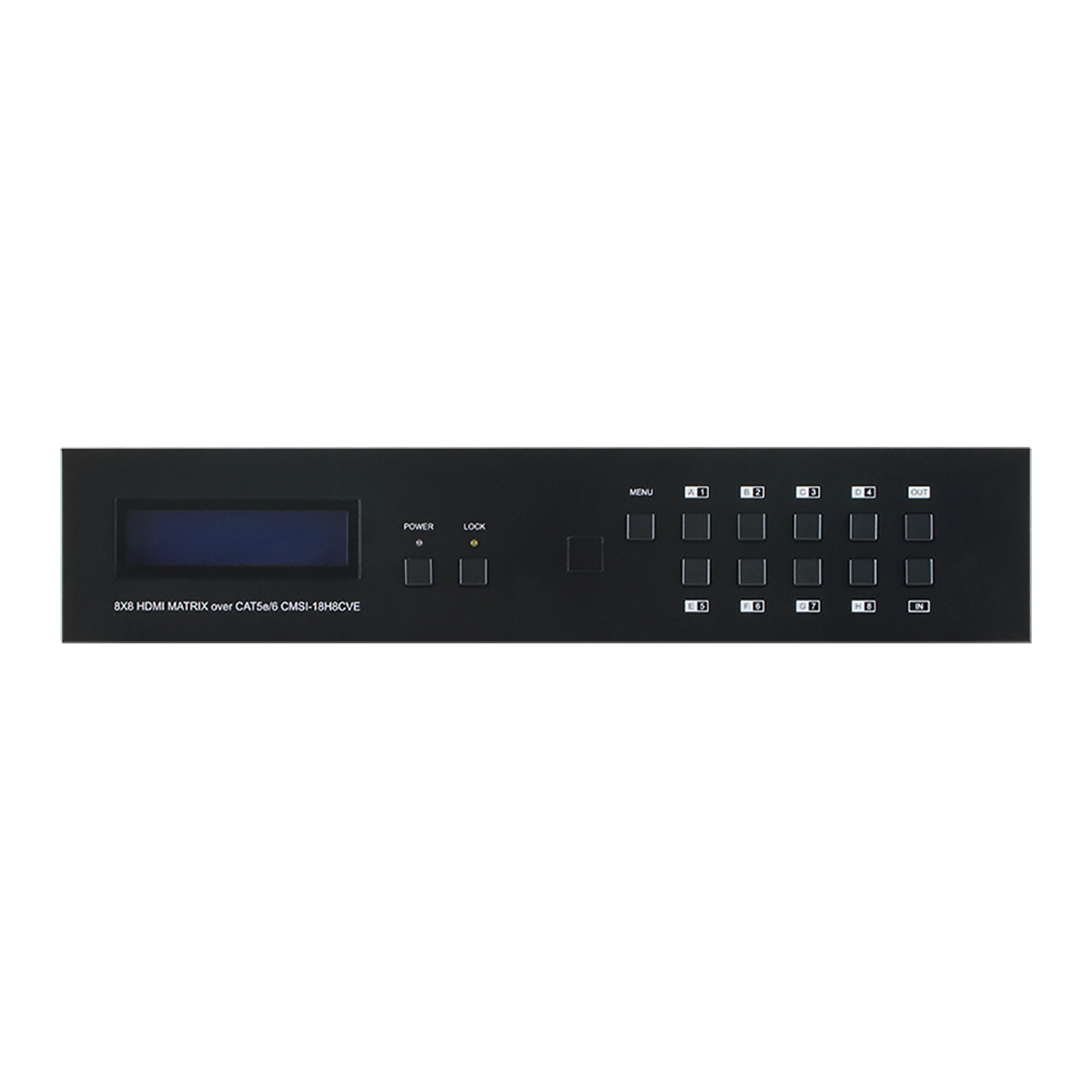

CMSI-8H8CVE 8×8 HDMI to HDBaseT Matrix
Please sign in so that we can notify you about a reply
The HDBaseT 8 by 8 HDMI over CAT5e/6/7 Matrix supports the transmission of video (resolutions up to 1080p Full HD and 1920×1200@60Hz), multi-channel digital audio and control via IR, RS- 232 or Telnet and WebGUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D source. Power over Ethernet (PoE) support means that compatible receivers do not need their own power supplies allowing for greater flexibility in installations and LAN serving allows devices such as Smart TVs to be connected to the network.
Features- HDMI, HDCP 1.1 and DVI compliant
- Supports HDMI 3D features for compatible sources and displays
- Supports PC resolutions of VGA to WUXGA and HDTV resolutions of 480i to 1080p dependent upon the output display’s resolution capabilities
- Supports distances of up to 100m for industry standard CAT5e/6/7 cables
- Supports PoE (Power over Ethernet) on compatible receivers only
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
Brand:
Cypress Technology
Product Type:
8×8 HDMI to HDBaseT Matrix
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
RS-232, LAN
Special Features:
Supports Distances of up to 100m for Industry Standard CAT5e/6/7 Cables
Power Rating:
84W (Main), 52W (PoE)
Chassis Material:
Metal
Applications:
Domestic HDMI Matrix System, Video/TV Wall Display and Control, Security Surveillance and Control, Commercial Advertising, Display and Control, University Lecture Hall Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
2×IR Extender, 2×IR Blaster, 24 V/6.25 A DC Power Adaptor (Main Supply), 48 V/1.35 A DC Power Adaptor (PoE), Power Cable, IR Remote Control, Operation Manual
Performance
Resolution:
480i to 1080Pixel
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

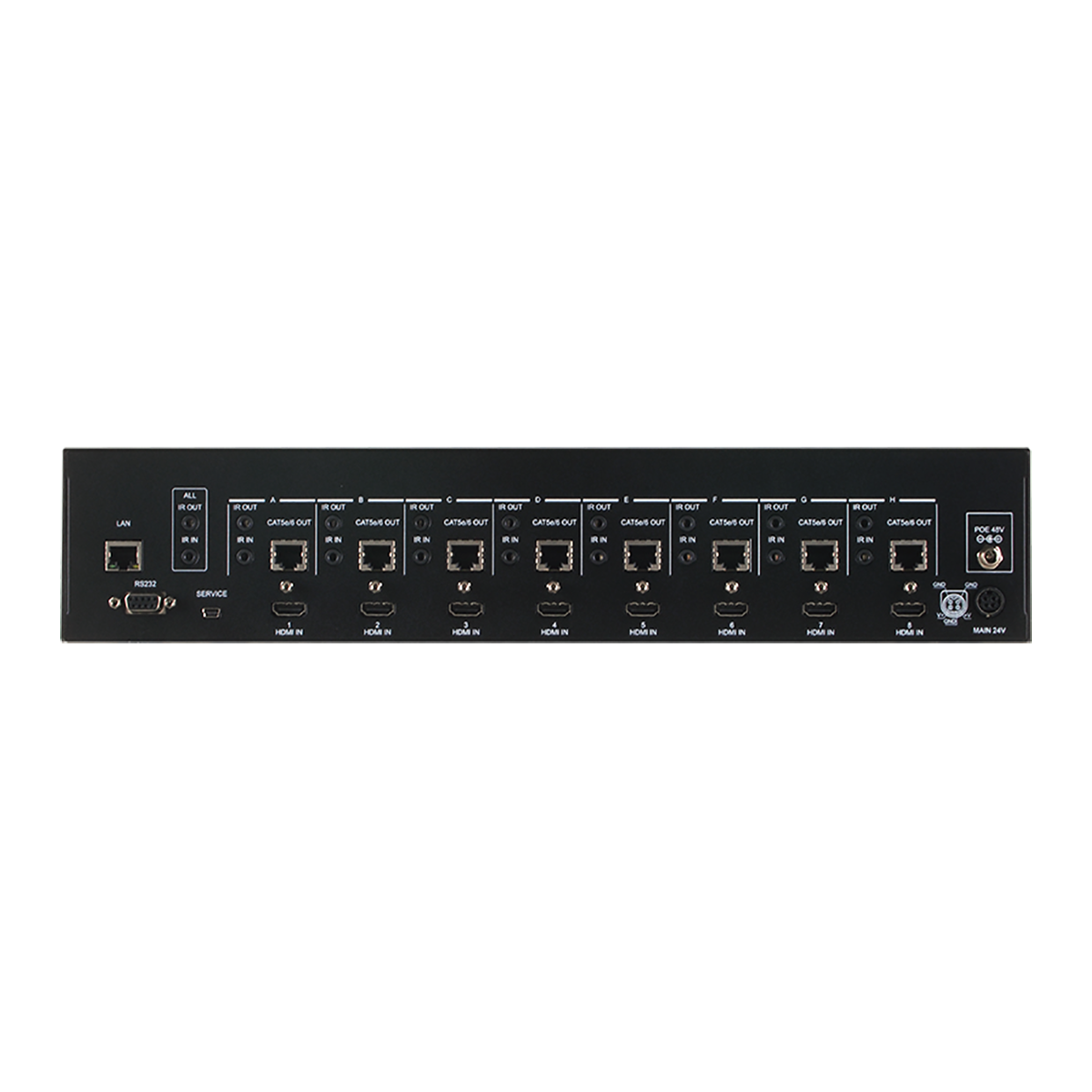

8×HDMI, 9×IR Extender, 1×RS 232, 1×LAN, 1×Mini USB-B Type (For firmware update Only)
Output Port Type:
8×CAT5e/6/7, 9×IR Blaster
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.8cm
Height:
9.2cm
Weight:
4268g
Other
Voltage Rating:
24V, 48V
Standards Met:
US/EU Standards, CE/FCC/UL Certified
