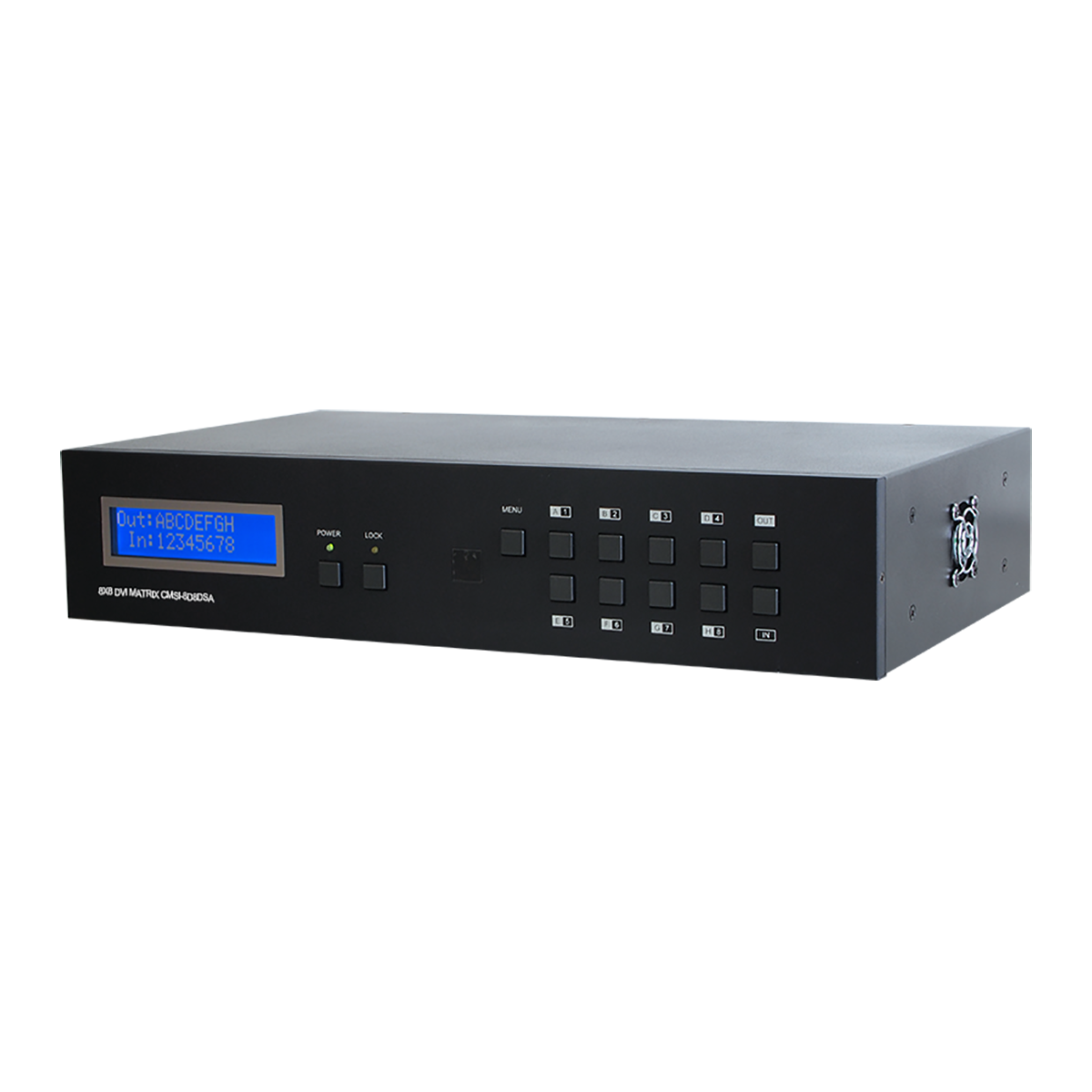

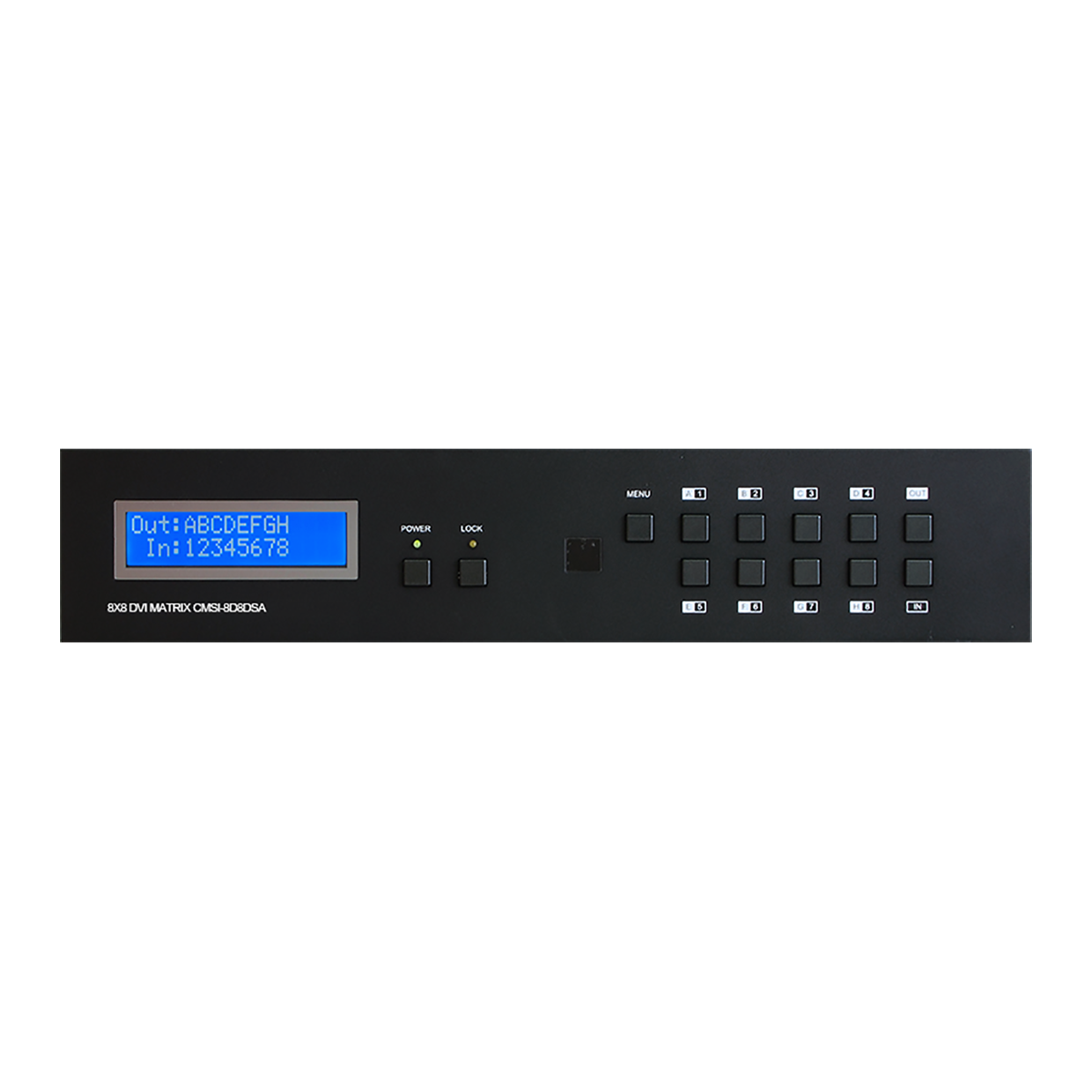

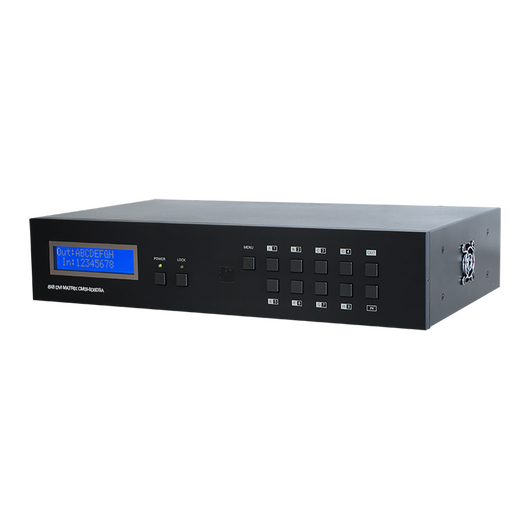

CMSI-8D8DSA 8x8 DVI Matrix with Audio (Plus Analog Audio)
Please sign in so that we can notify you about a reply
The 8×8 DVI Matrix with Audio is the perfect choice for the switching and distribution of DVI sources. Connect up to eight DVI sources to eight DVI displays allowing any source to be independently displayed on any monitor. Each DVI input and output has a corresponding 3.5mm mini-jack connection allowing for audio to be distributed. The Matrix can be controlled via its front panel, IR, RS-232 or Telnet and Web GUI over IP.The matrix supports a full range of PC and HDTV timings up to WUXGA and 1080p, 2.25Gbps bandwidth, 12-bit Deep Color, and 3D.
Features
- HDMI, HDCP 1.1 and DVI Compliant
- Supports HDMI 3D feature (with HDMI to DVI adaptor cable)
- Supports resolutions to VGA ~ WUXGA and 480i~1080p dependent upon the output display's EDID settings
- Supports stereo audio input and output via 3.5mm mini-jack cable
- Supports 3D signal dependent upon the output display's EDID settings
- Supports IR extension
- Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 2U size design
Brand:
Cypress Technology
Product Type:
DVI Matrix with Audio
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, 2U Size Design
Power Rating:
51W
Chassis Material:
Metal
Applications:
Commercial Computer Display Matrixing, Commercial Advertising Display, University Lecture Hall Display, Retail Sales Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
8x8 DVI Matrix with Audio, 1x24V/6.25A DC Adaptor, 1xRemote Control, 1xIR Extender, Operation Manual
Performance
Resolution:
PC:VGA and WUXGA, HDTV:480i to 1080pixels & 4K2K@30Hz
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

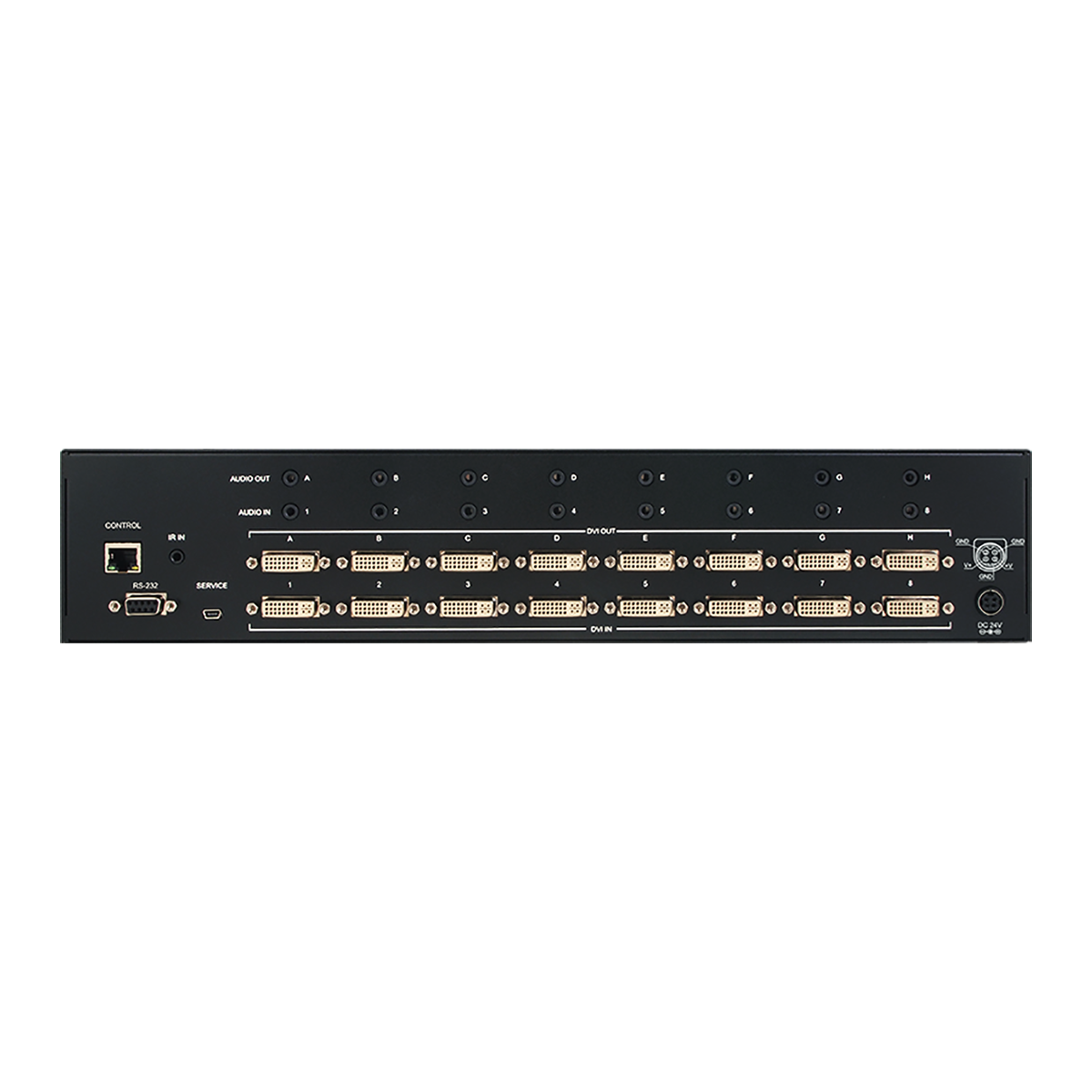

8xDVI, 8x3.5mm Mini-Jack, 1xIR, 1xRS-232, 1xMini USB Type B (For Firmware Update Only), 1xRJ45 (Control)
Output Port Type:
8xDVI, 8x3.5mm Mini-Jack
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.8cm
Height:
9.3cm
Weight:
4648g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
