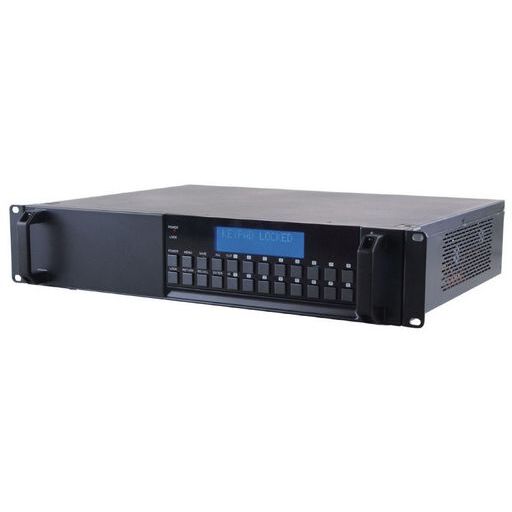

CMSI-88 8x8 Modular Matrix
Please sign in so that we can notify you about a reply
The 8x8 modular matrix is designed to allow switching and distribution of 8 source devices to up to 8 connected displays, directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration ). Providing unprecedented levels of flexibility, with an advanced modular design, these models can be configured in a wide variety of combinations allowing users to adapt Matrix to their needs by simply adding or removing input or output modules as required.
Features
- HDMI, HDCP 1.1 and DVI 1.0 compliant
- Changeable input and output boards
- Input and output module types can be mixed and added in increment of 8 from 8x8 up to 32x32 with HDMI, DVI, CAT5e/6/7 and VGA interfaces
- Supports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission
- Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p or 4K2K
- Supports RS-232, Telnet and Web GUI controls
- Supports redundant power supply
- HDMI cable length with a resolution 1080p/8-bit and 12-bit the Input/ Output source can be 15m/15m (8-bit) and 10/10m (12-bit) away
- CAT5e/6/7 cable length with a resolution 1080p/8-bit and 12-bit the Input/Output source can be 100m/100m away
- EDID modes support: Standard mode: Factory default, Automatic mode: Takes EDID from the lowest output, Manual mode: Assigns any output to any input port
- HDBaseT 5Play™ convergence: Video, Audio, PoE, Ethernet & Control (IR & RS-232)
Brand:
Cypress Technology
Specifications
Product Type:
Modular Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI 1.0 Compliant
IR Frequency:
30 to 50Hz
Power Rating:
40W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
PC:VGA and WUXGA, HDTV:480i to 1080pixels & 4K2K@30Hz
Video Bandwidth:
300MHz/10.2Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:
8xCAT5e/6/7, 1xLAN
Dimensions
Length:
38cm
Width:
48.2cm
Height:
10cm
Weight:
11000g
Other
Voltage Rating:
110 to 240V AC
Standards Met:
CE/FCC/UL Certified
