CMSI-4H4CVL HDBaseT™ 4x4 HDMI Matrix over CAT5e/6/7
Please sign in so that we can notify you about a reply

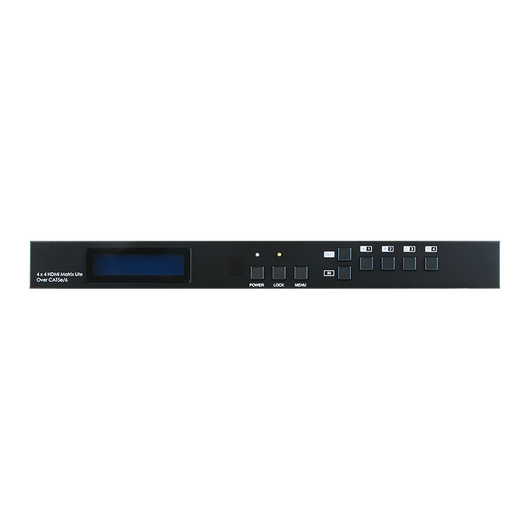

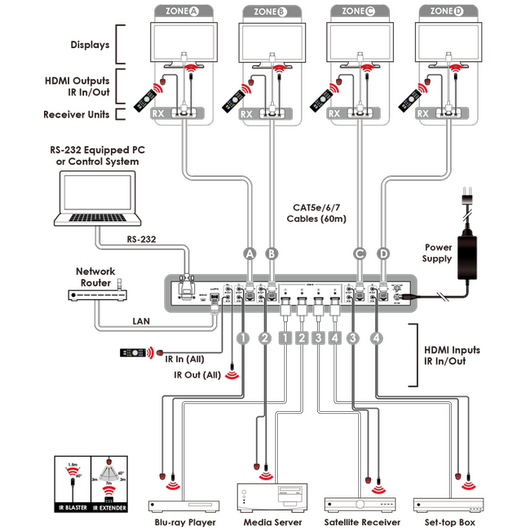

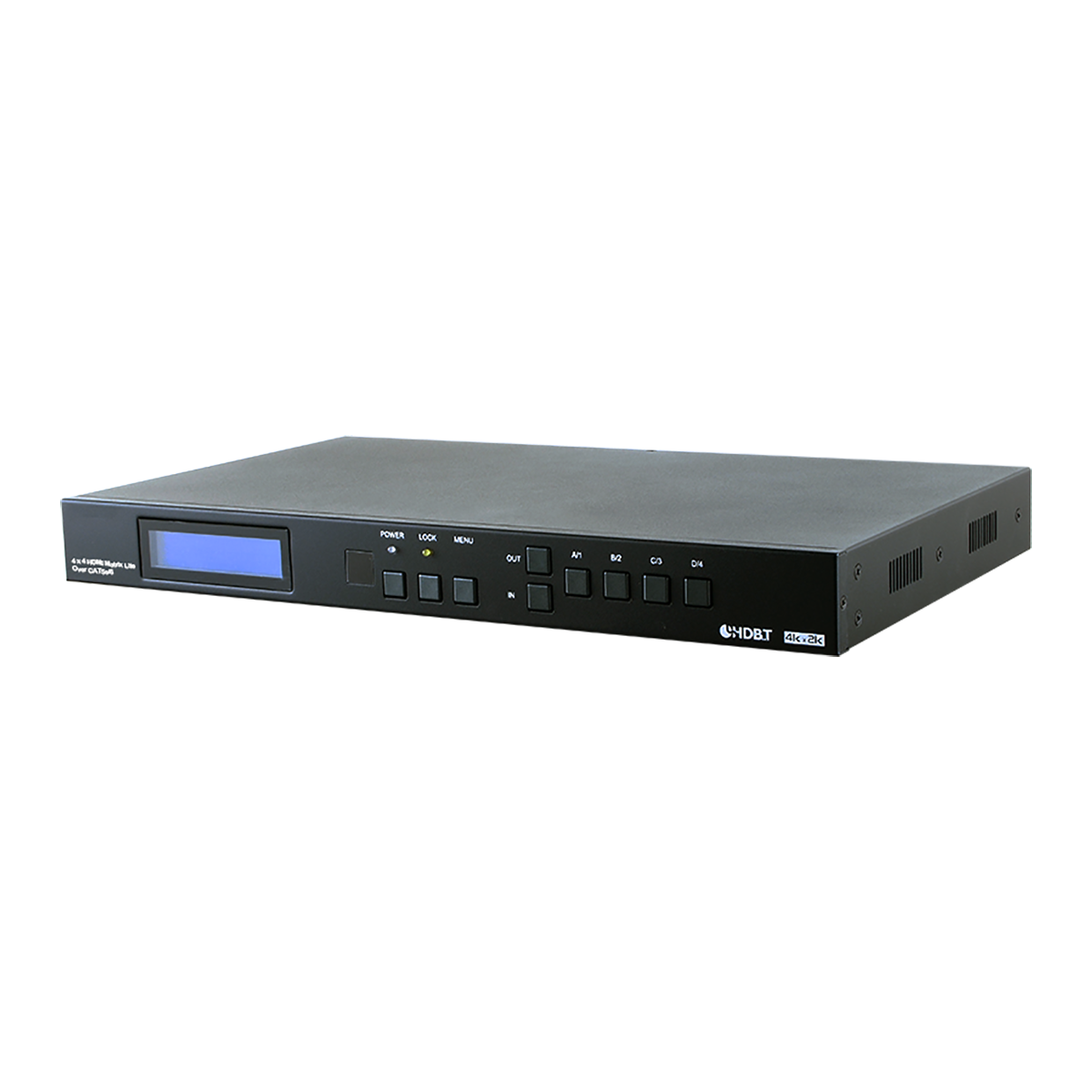

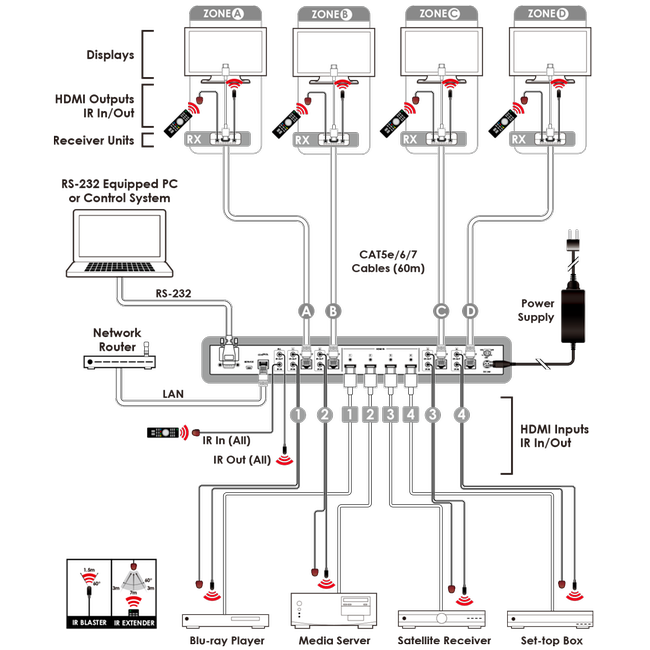

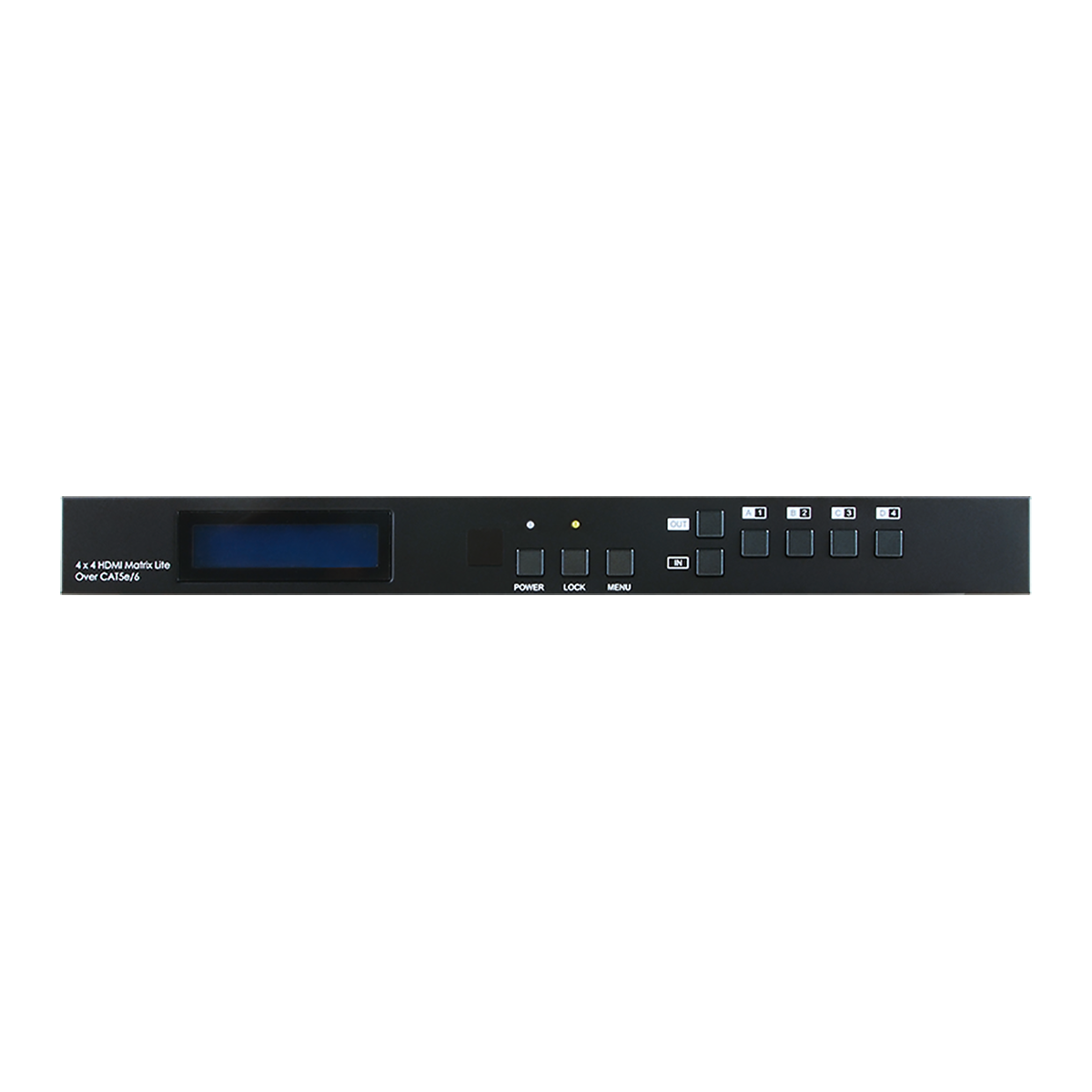

The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz) and multi-channel digital audio from four high definition sources to four outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. It also has the added benefit of control via IR, RS-232, Telnet or Web GUI.
Features
- HDMI, HDCP1.1 and DVI Compliant
- Supports HDMI 3D features
- Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings
- Supports distances up to 60 meters through CAT5e/6/7 cables
- Supports 3D signal display dependent upon the output display EDID settings
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
- Supports bi-directional IR from input and output locations
- Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 1 U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note: Do not connect the CONTROL port to CAT outputs of this device or to CAT inputs or receiver. Doing so may demage the unit.
Brand:
Cypress Technology
Specifications
Product Type:
HDBaseT/HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, Supports HDMI 3D Features
Power Rating:
35W
Chassis Material:
Metal
Applications:
HDMI Matrix System, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Display and Control, University Lecture Hall/Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDBaseT™ 4 by 4 HDMI Over CAT5e/6/7 Matrix, 1xIR Extender, 1xIR Blaster, 1xIR Remote Control, 1x24V/2.7A DC Power Adaptor, Operation Manual
Performance
Resolution:
VGA and WUXGA and 480i to 1080pixels
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

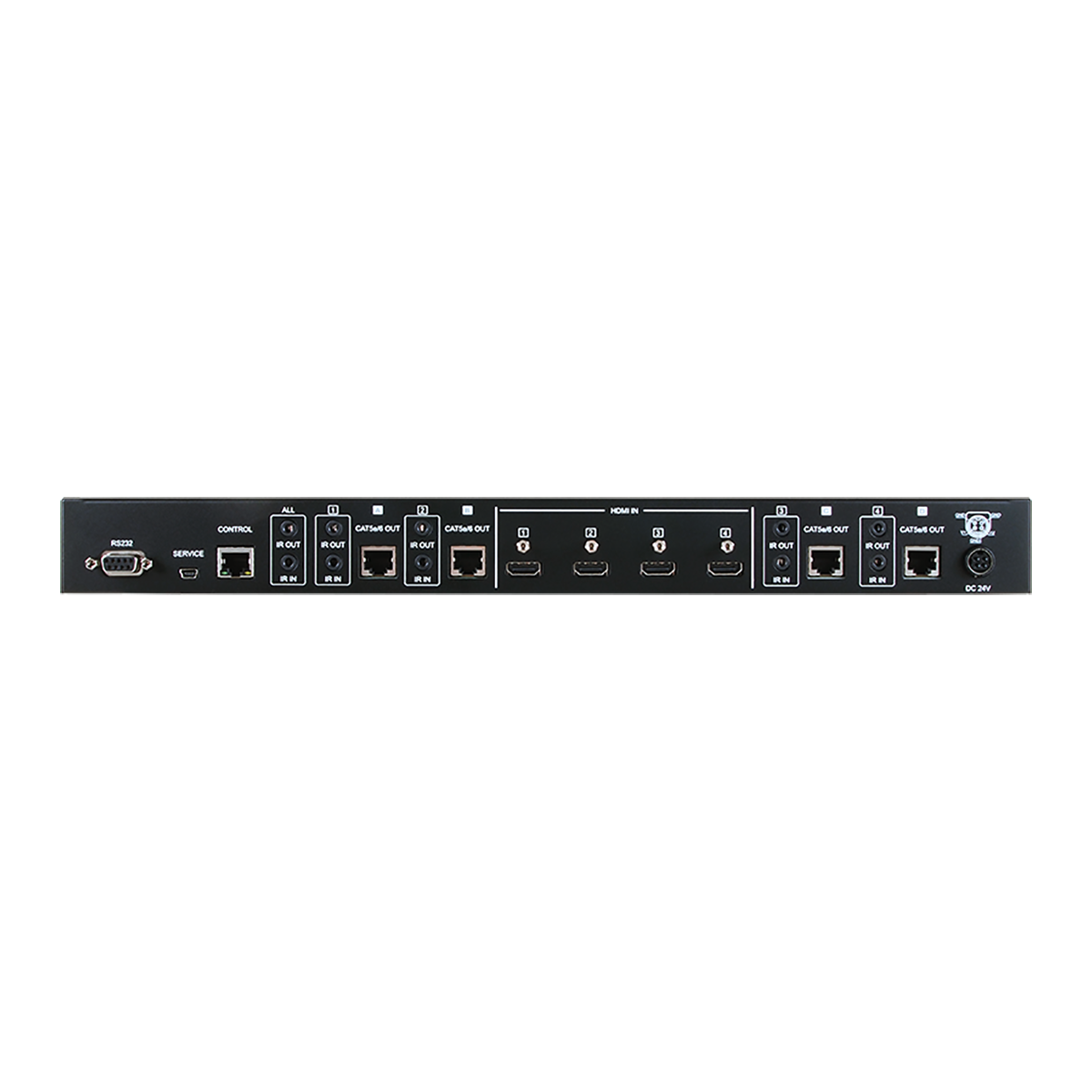

4xHDMI, 5xIR Extender, 1xRS-232, 1xRJ45(Control), 1xMini USB Type B (For Firmware Updated Only)
Output Port Type:
4xCAT5e/6/7, 5xIR Blaster
Number of Ports:
4x4
Power
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.6cm
Height:
4.8cm
Weight:
3234g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
