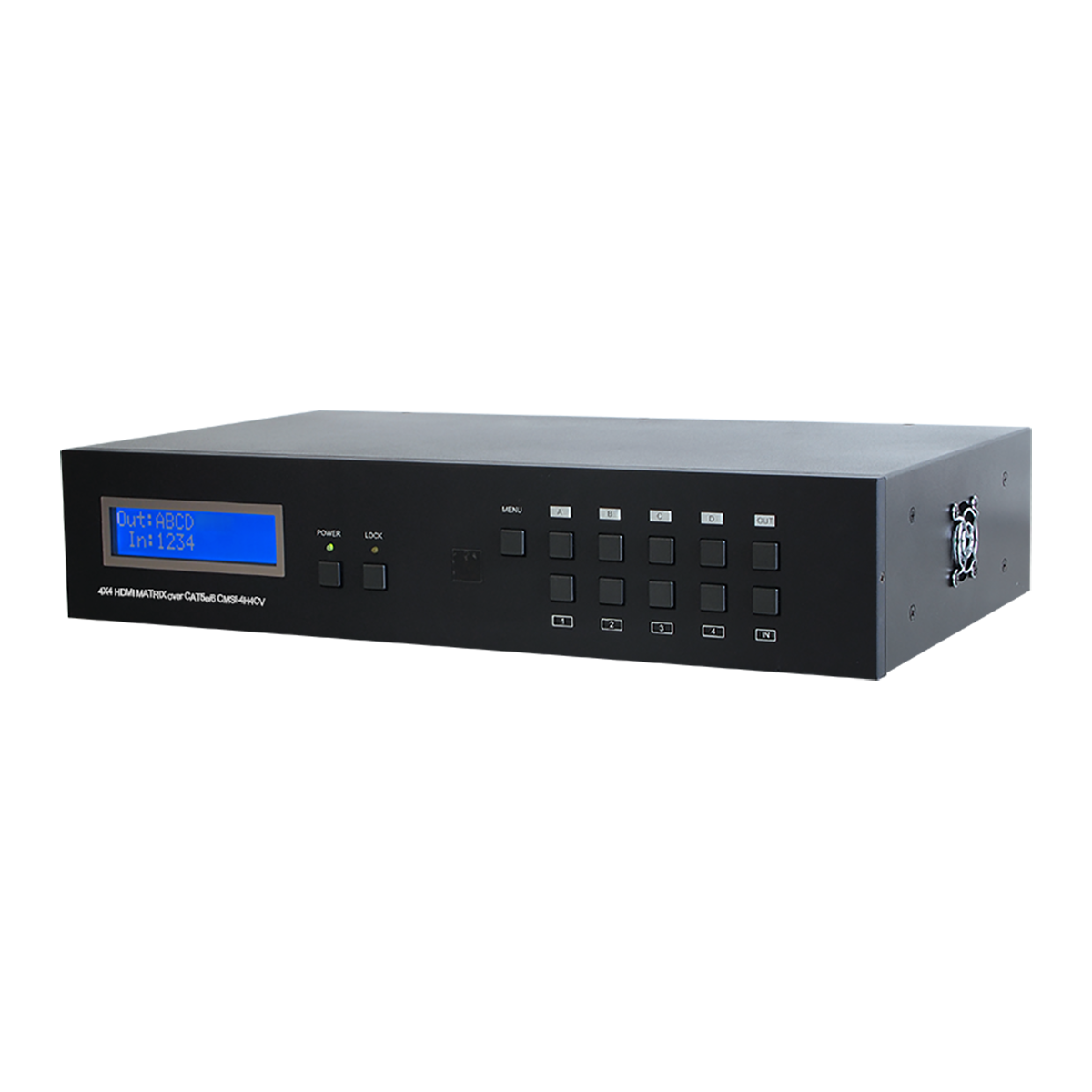

CMSI-4H4CV HDBaseT™ 4x4 HDMI Matrix over CAT5e/6/7
Please sign in so that we can notify you about a reply
The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920×1200@60Hz) and multi-channel digital audio from four high definition sources to four outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTSHD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D source. The matrix can be controlled via IR, RS-232, Telnet or Web GUI. Power over Ethernet (PoE) support means that compatible receivers do not need their own seperate power supplies, allowing for greater flexibility in installations.
Features
- HDMI, HDCP1.1 and DVI Compliant
- Supports HDMI 3D features
- Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings
- Supports 3D signal display dependent upon the output display EDID settings
- Supports PoE (Power over Ethernet) on compatible receivers only
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meter at 12-bit resolution
- Supports bi-directional IR to and from input and output locations

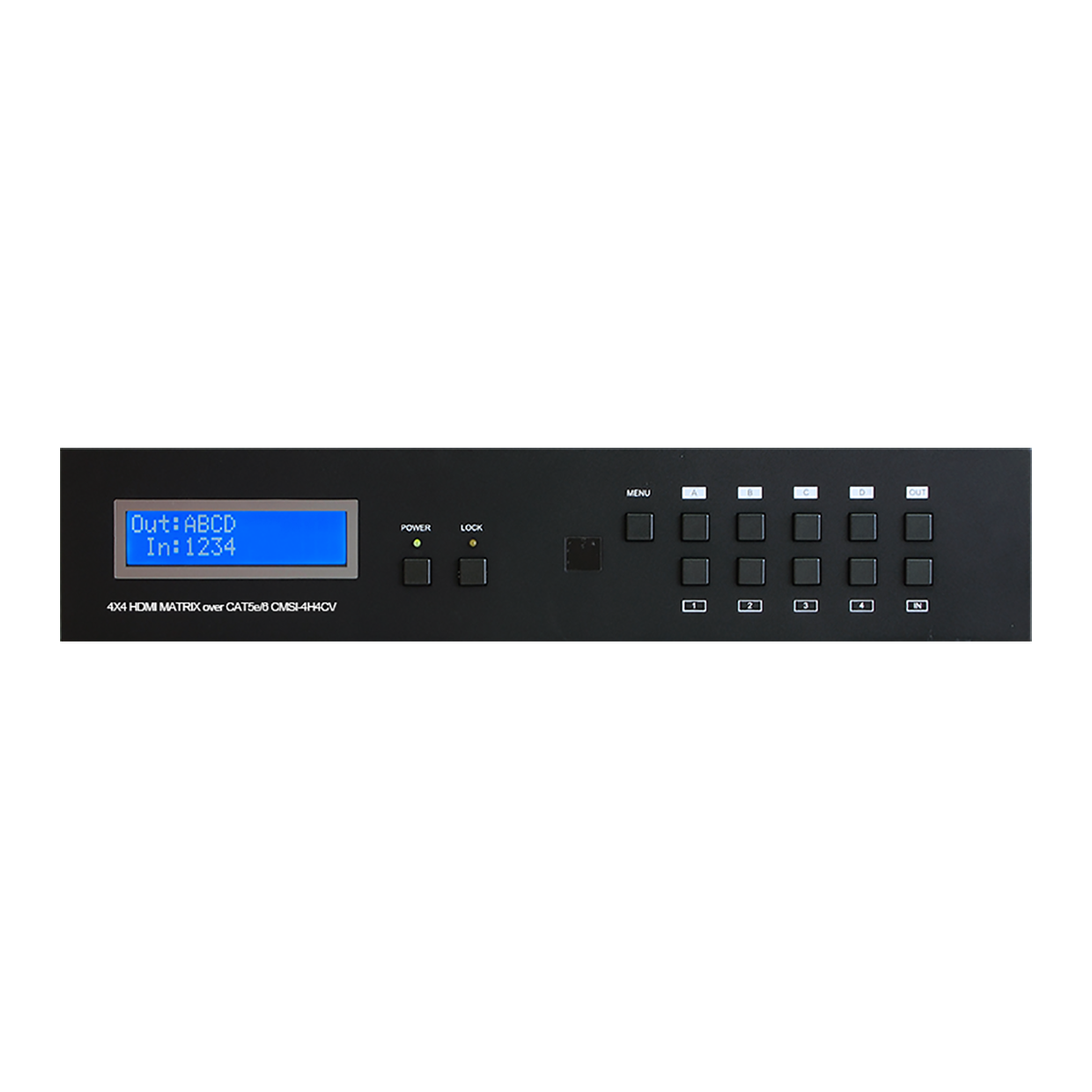

- Supports control via RS-232, IR remote, on-panel buttons and IP (Telnet & Web GUI)
- 2U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note:
1. The PoE function is designed for powering compatible receiver units only—non-PoE receivers will need their own power supply. Receivers of another brand may not be compatible.
2. Do not connect the LAN/CONTROL port to CAT outputs of this device.
Brand:
Cypress Technology
Product Type:
HDBaseT/HDMI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, Supports External and Internal EDID Settings
IR Frequency:
30 to 50Hz
Power Rating:
42 W/TX (Main), 27 W/RX (PoE)
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
HDTV: 480i to 1080pixels@50Hz/60Hz & 1080pixels@24Hz, PC: VGA to WXGA
Video Bandwidth:
225MHz/6.75Gbps
Inputs and Ports
Input Port Type:

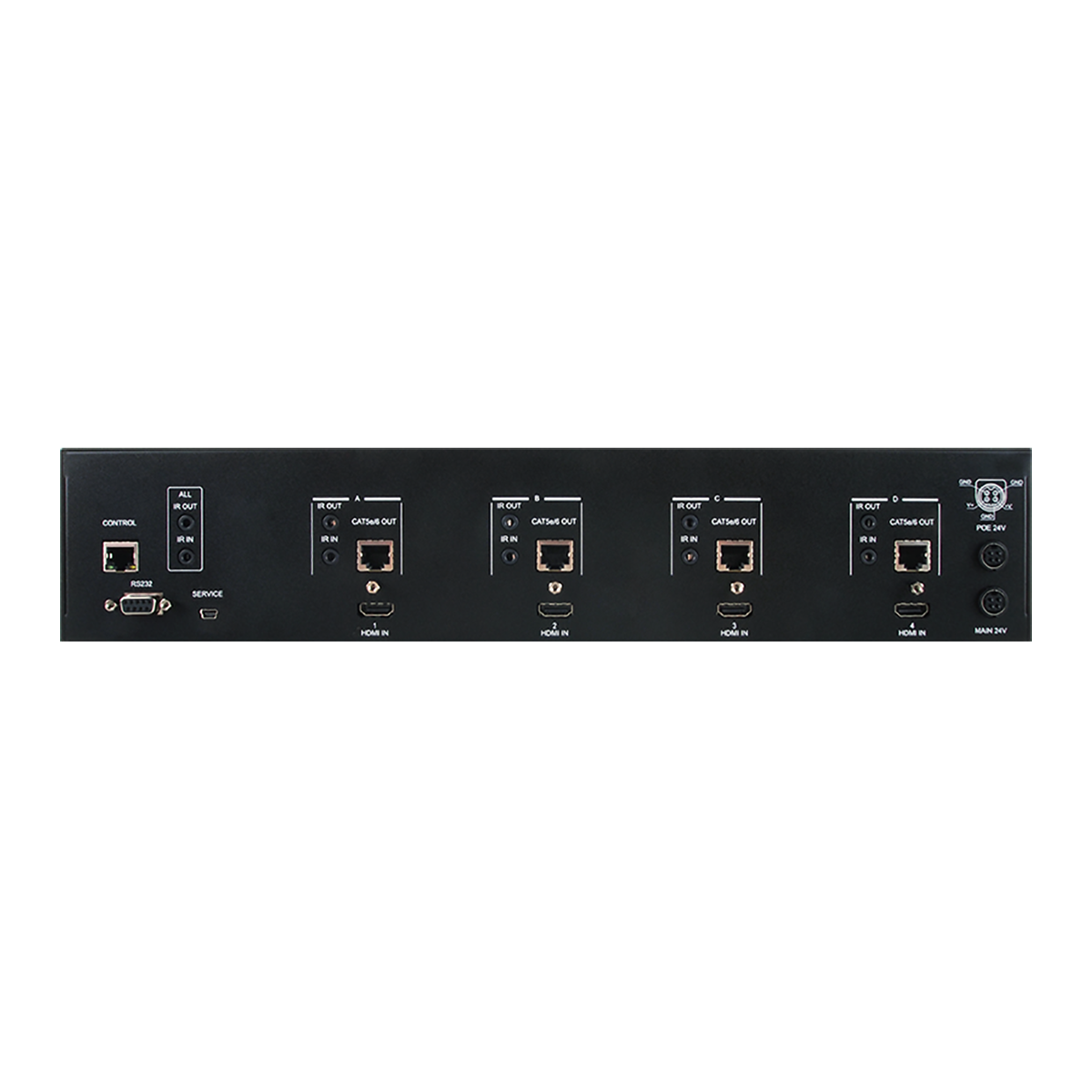

4xHDMI, 5xIR Extender, 1xRS-232, 1xRJ45 (Control), 1xMini USB Type B (For Firmware Updated Only)
Output Port Type:
4xCAT5e/6/7, 5xIR Blaster
Number of Ports:
4x4
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.8cm
Weight:
4238 g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
