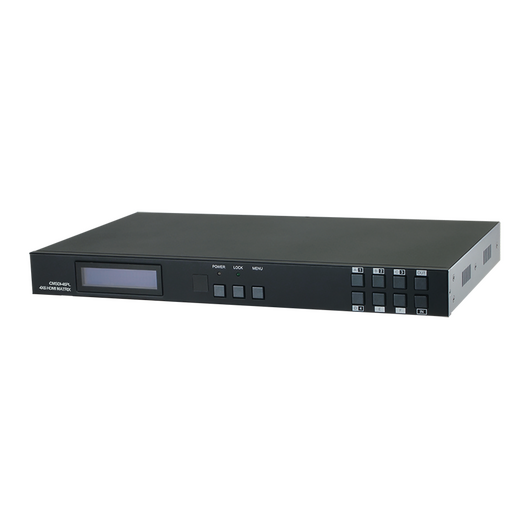

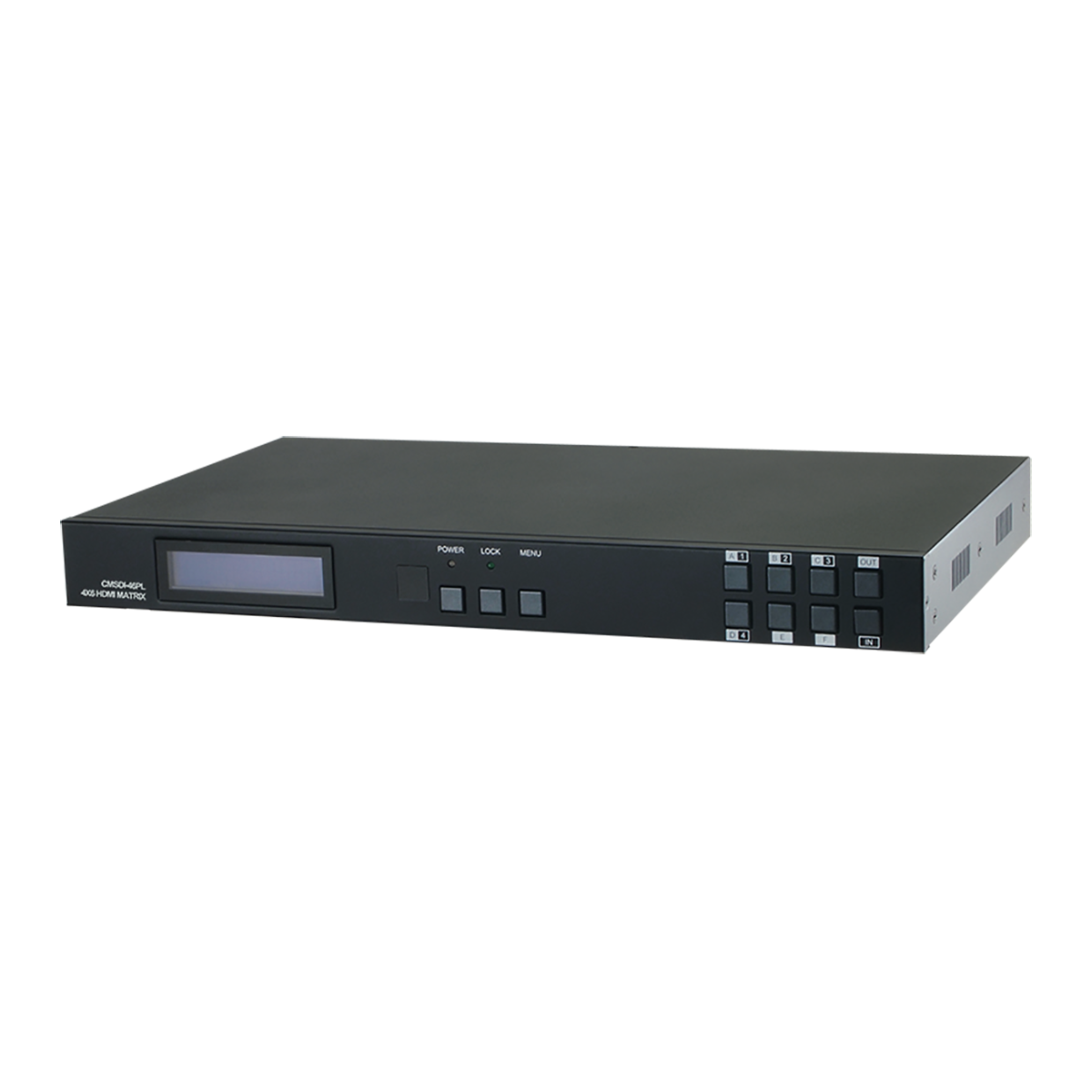

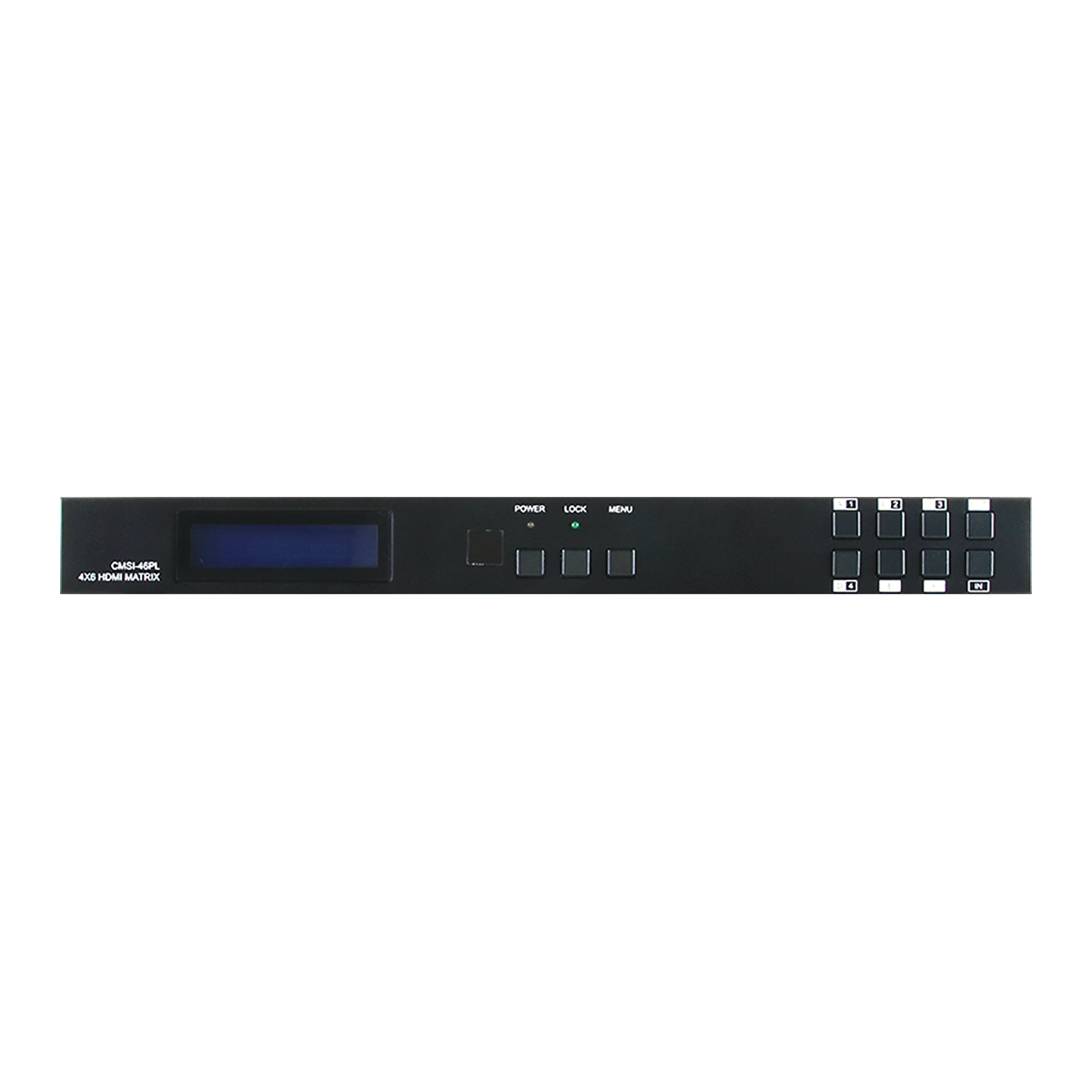

CMSI-46PL 4×6 HDMI over HDMI/HDBaseT Matrix with IR, RS-232 & PoC (PSE)
Please sign in so that we can notify you about a reply
The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
Features
- Supports resolutions VGA to WUXGA and 480i to 1080p dependent upon the output display’s EDID settings
- Supports distances up to 70 meters through CAT6/7 cables and 60m for CAT5e
- Supports 3D signal display dependent upon the output display’s EDID settings
- Supports bidirectional IR from input and output locations
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio Transmission
- Supports PoC (Power over Cable) on compatible receiver only
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports External and Internal EDID Settings
Power Rating:
40W
Chassis Material:
Metal
Applications:
HDMI System Control, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Displaying and Control, Lecture Room Display and Control, Hyper Market Demonstration and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4 by 6 Matrix, HDMI Over CAT5e/6/7 Receivers (Optional), 1xIR Extender, 1xIR Blaster, 1xL&R Rack Ears, 1x24V/3.75A DC Power Supply, 1xPower Cord, 1xRemote Control (with battery), 1xOperation Manual
Performance
Resolution:
VGA and WUXGA and 480i to 1080pixels
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

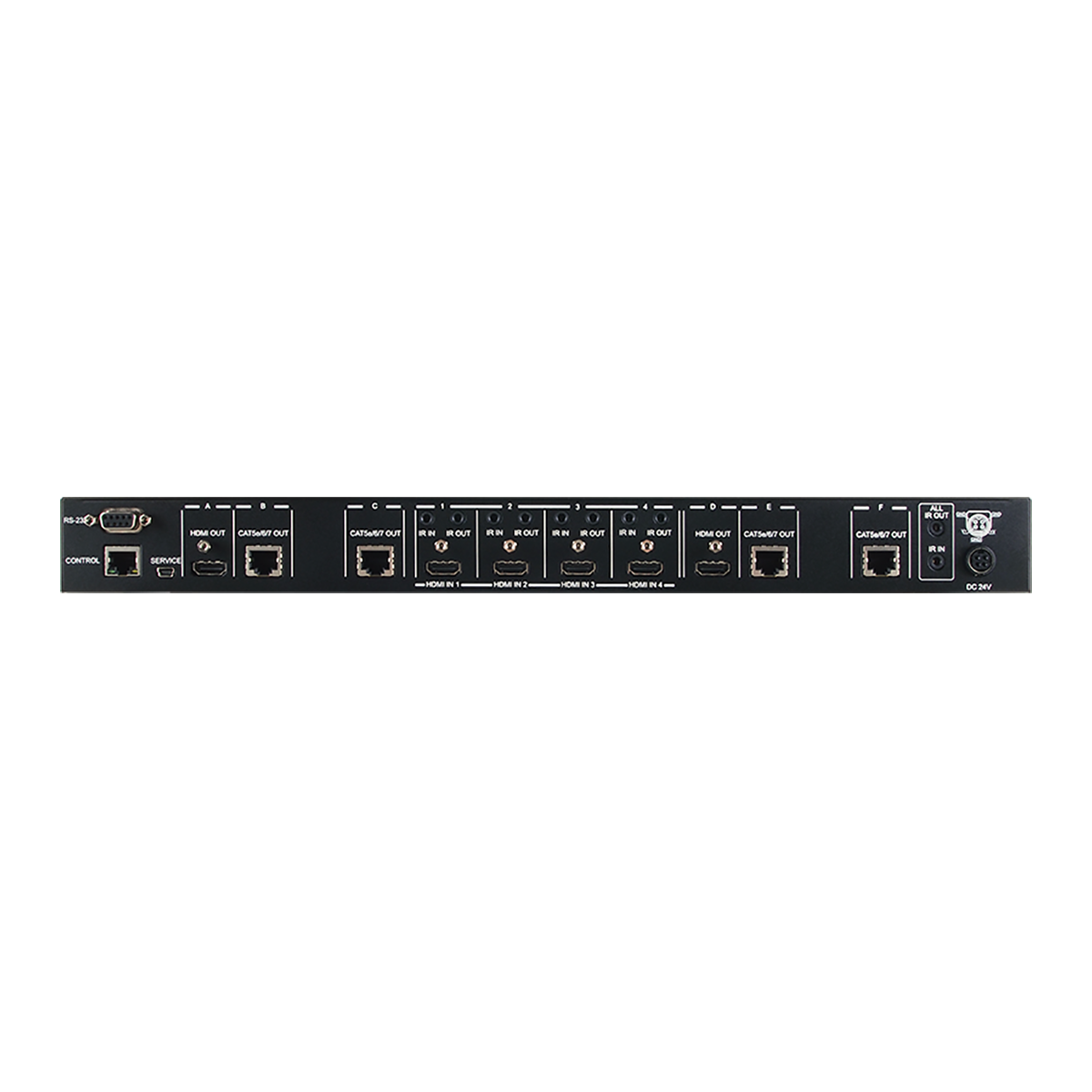

4xHDMI, 5xIR Extender, 1xRS-232, 1xLAN (Control Only), 1xRJ45 (Control Only), 1xUSB Mini-B (Service Only)
Output Port Type:
2xHDMI, 4xCAT5e/6/7, 5xIR Blaster
Number of Ports:
4x6
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.6cm
Height:
4.8cm
Weight:
3334g
Other
Standards Met:
CE/FCC/UL Certified
