CMSI-424L 4x4 HDMI to HDBaseT Matrix with 2 Mirrored HDMI Outputs
Please sign in so that we can notify you about a reply
The 4 by 4 HDMI Matrix over CAT5e/6/7 with two additional simultaneous HDMI outputs supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multichannel digital audio and control via IR, RS-232 or Web GUI/Telnet IP from four high definition sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 60m) for each output. Output A and C have additional mirrored HDMI outputs. It supports high resolution digital audio formats such as LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D.
Features
- HDMI, HDCP1.1 and DVI compliant
- Supports HDMI 3D features
- Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings
- Supports distances up to 60 meters through CAT6/7 cables
- Supports 3D signal display dependent upon the output display's EDID settings
- Supports simultaneous HDMI and CAT 5e/6/7 display on outputs A and C
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
- Supports bi-directional IR from input and output locations
- Supports RS-232, remote control, on-panel control and IP Control (Telnet or WebGUI)
- 1U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Brand:
Cypress Technology
Product Type:
HDMI OVER HDBaseT MATRIX 1080P-CYPRESS
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant
Power Rating:
40W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
VGA and WUXGA and 480i to 1080pixels
Video Bandwidth:
225MHz/6.75Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

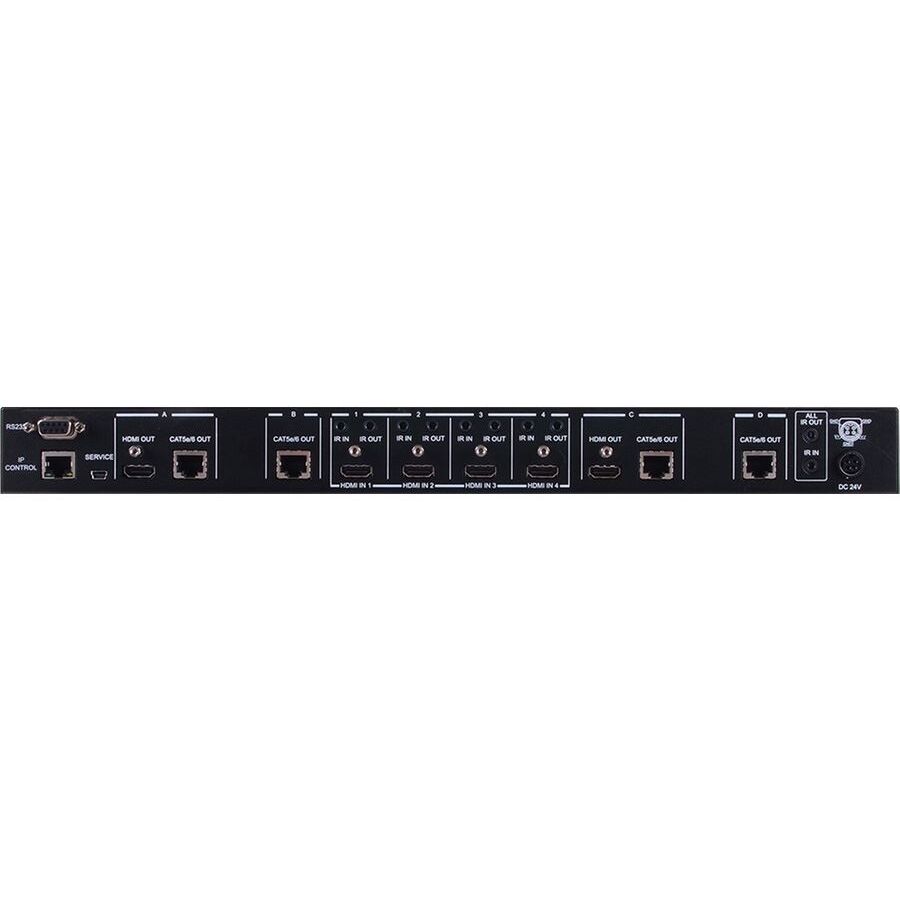

4xHDMI, 5xIR Extender, 1xControl, 1xRS-232, 1xMini USB-B (For Firmware Update Only)
Output Port Type:
4xCAT5e/6/7, 2xHDMI, 5xIR Blaster
Number of Ports:
4x4
Power
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.5cm
Width:
43.6cm
Height:
4.8cm
Weight:
3372g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
