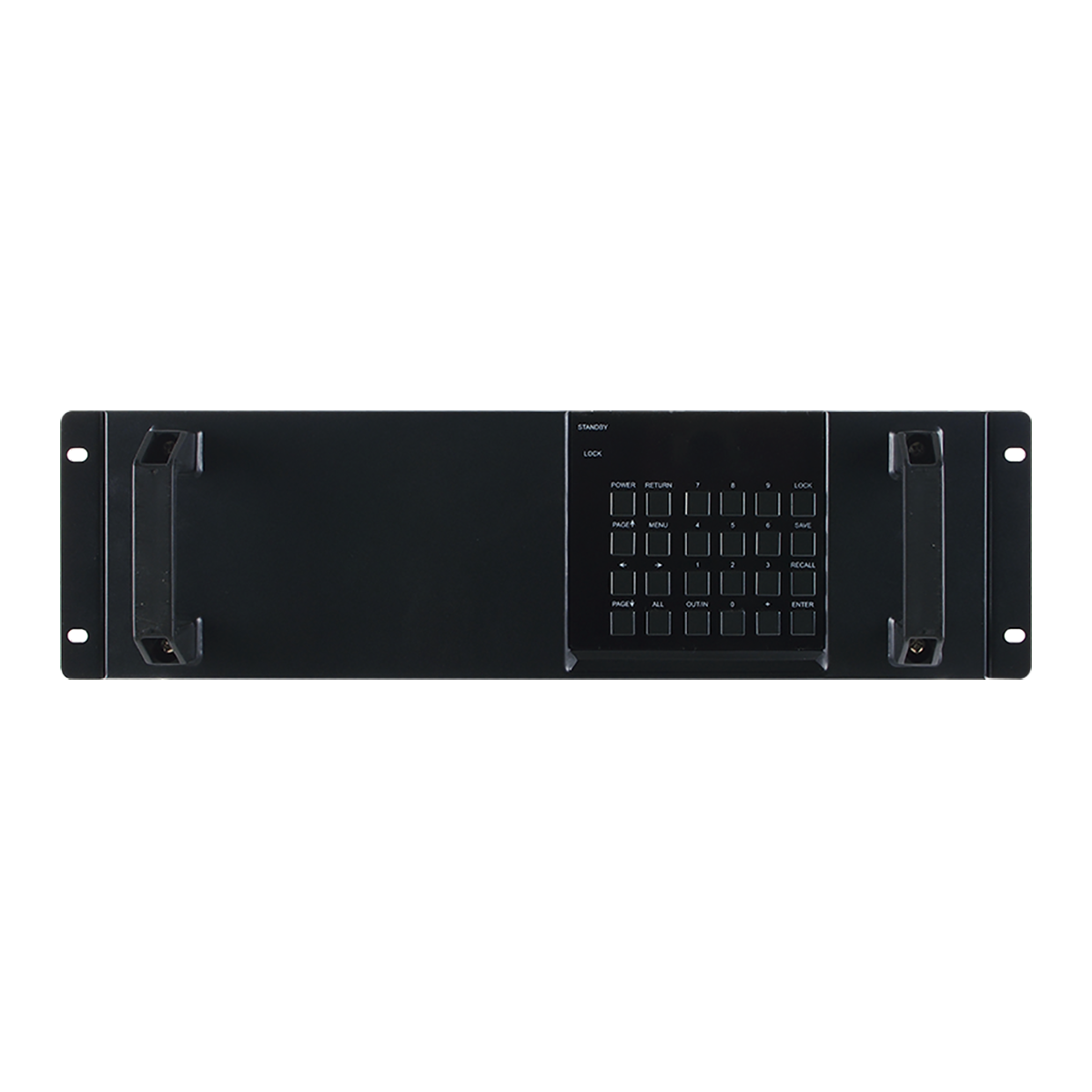

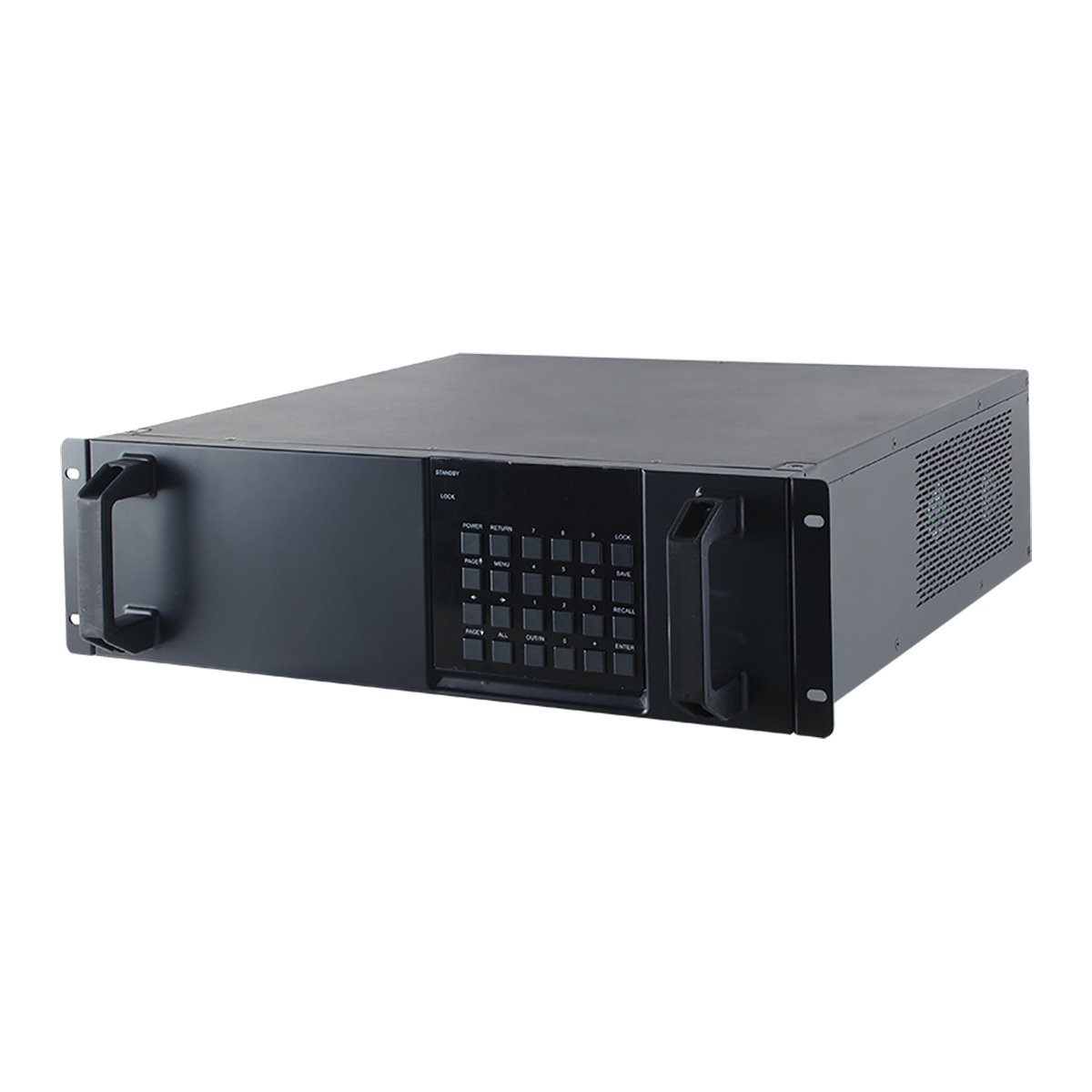

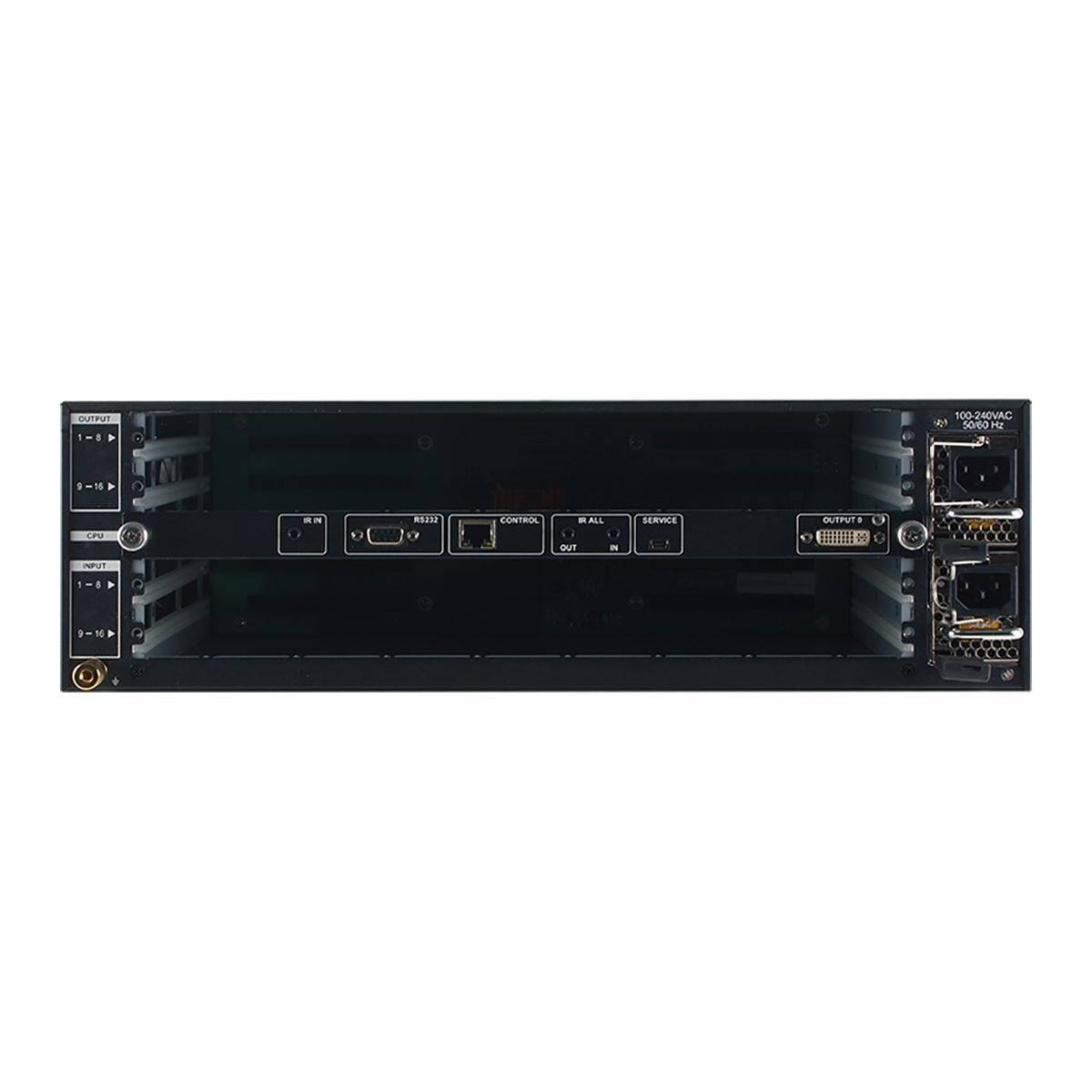

CMSI-1616 16 by 16 Modular Matrix
Please sign in so that we can notify you about a reply
The 16 by 16 Modular Matrix is designed to allow the switching and distribution of up to 16 source devices to up to 16 connected displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration).
Features
- HDMI, HDCP 1.4 and DVI 1.0 Compliant
- Interchangeable input and output modules
- Input and output module types can be mixed and added in multiples of 8 from 8×8 (1 Input module, 1 Output module) up to 16×16 (2 Input modules, 2 Output modules) with HDMI, DVI, CAT5e/6/7 and VGA (Input only) connection types
- Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p and 4K2K@24/25/30Supports pass-through of LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports control of the matrix via on-panel, RS-232, Telnet and WebGUI controls
- Supports 10 available preset settings
- Support 3 EDID modes:Standard, Dynamic and Manual (see Section 6.1 for details)
- Dual removal power supply units
- Supports HDMI cable input and output lengths of up to 15m each way (1080p@8-bit resolution), 10m (1080p@12-bit resolution) or 5m (4K2K@30 resolution)
- Supports CAT5e/6/7 cable input and output lengths of up to 100m (1080p@8-bit/12-bit resolution) or 70m (4K2K@30 resolution) dependent on board capabilities
- HDBaseT 5Play™ convergence supports HD Video, HD Audio, PoC, Ethernet and IR/RS-232 Control
- HDBaseT 4Play convergence supports HD Video, HD Audio, PoC and IR/ RS-232 Control
- HDBaseT 3Play convergence supports HD Video, HD Audio and IR/RS- 232 Control
Brand:
Cypress Technology
Specifications
Product Type:
Modular Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.4 and DVI 1.0 Compliant
IR Frequency:
30 to 50Hz
Power Rating:
50W
Chassis Material:
Metal
Applications:
Public Information Display, Educational Demo, Professional Presentation, Advertising Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x16 by 16 Modular Matrix Enclosure (including CPU Control Board and Removeable Dual Power Supplies), 2xInput Module Boards-HDMI, DVI, CAT5e/6/7 or VGA (Optional), 2xOutput Module Boards-HDMI, DVI or CAT5e/6/7 (Optional), IR Extender, IR Blaster, Remote C
Performance
Resolution:
PC:VGA and WUXGA, HDTV:480i to 1080pixels & 4K2K@30Hz
Video Bandwidth:
300MHz/10.2Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:
8xCAT5e/6/7, 1xLAN
Number of Ports:
16x16
Dimensions
Length:
48.4cm
Width:
48.2cm
Height:
14.5cm
Weight:
14400g
Other
Voltage Rating:
110 to 240V AC
Standards Met:
CE/FCC/UL Certified
