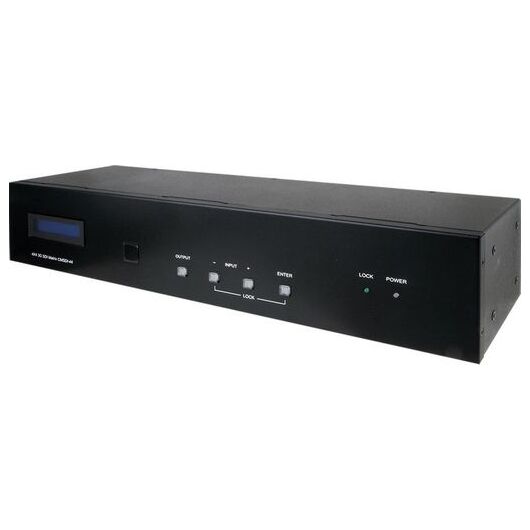

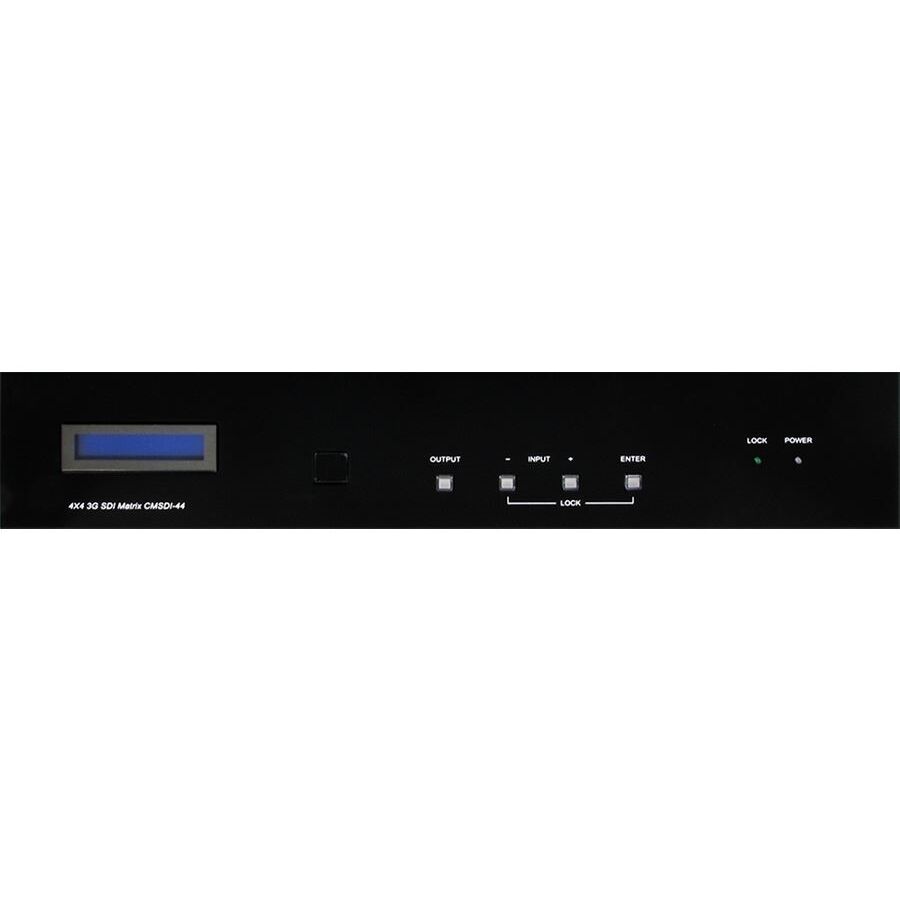

CMSDI-44 4x4 SD/HD/3G-SDI Matrix Switcher
Please sign in so that we can notify you about a reply
CMSDI-44 – matrix switcher of 4x4 SDI/HD/3G-SDI signals. The device allows you to switch SDI signals from any of the four sources to any of the four outputs or to all outputs simultaneously. It equalizes and reclocks the signal, supports data transmission over long lines without loss of quality at speeds up to 2.970 Gbit/s.
Features
- 3G-SDI input sources can be selected and split or switched to four 3G-SDI displays simultaneously
- Operation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps
- Supports SMPTE 425M (Level A and Level B), SMPTE424M, SMPTE 292M, SMPTE 259M-C
- Connect using other units to extend your signal over long distances
- Signal is equalized and re-clocked
- Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals
Brand:
Cypress Technology
Product Type:
SDI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Signal is Equalized and Re-Clocked, Connect Using Other Units to Extend Your Signal Over Long Distances
Power Rating:
5.5W
Chassis Material:
Metal
Applications:
Video Broadcasting Switching Display, Professional Video Program Display, Film Studios Program Monitoring, Video Program Switching Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
16 by 4/12 by 4/8 by 4/4 by 4 3G-SDI Matrix, Remote Control (CR-101), 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Baud Rate:
19200bps
Inputs and Ports

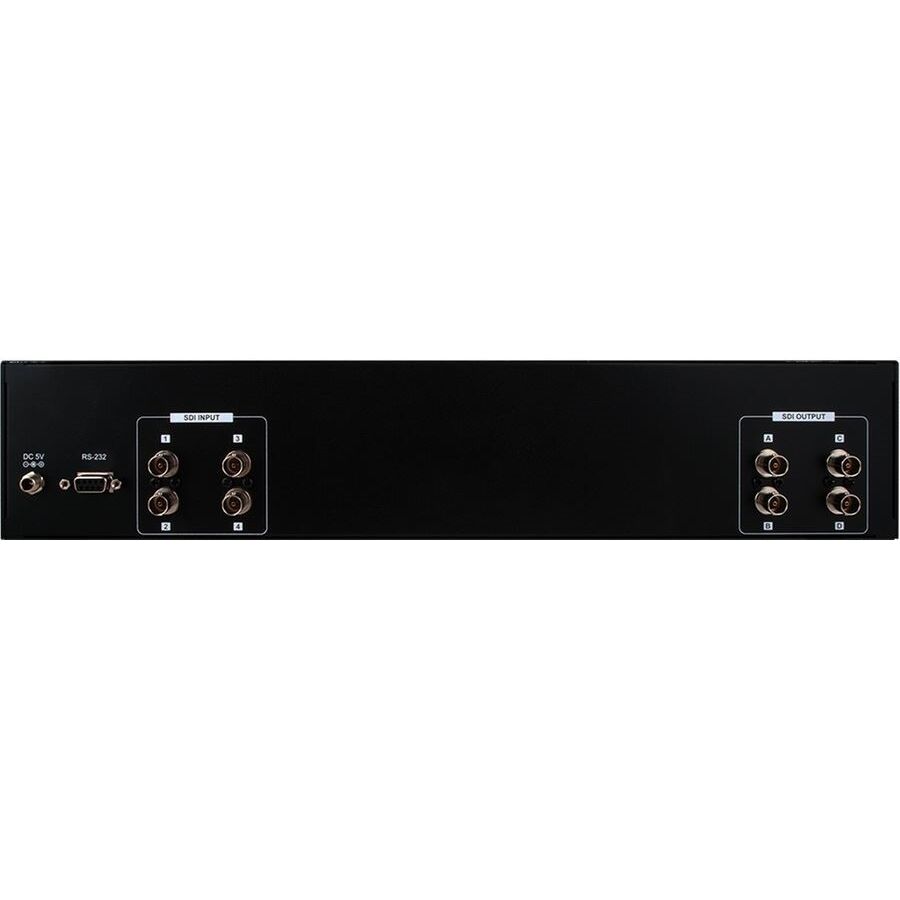

Input Port Type:
16/8/4xBNC (SD/HD/3G-SDI)
Output Port Type:
4xBNC (SD/HD/3G-SDI)
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
13.2cm
Width:
43.6cm
Height:
9.3cm
Weight:
2340g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
